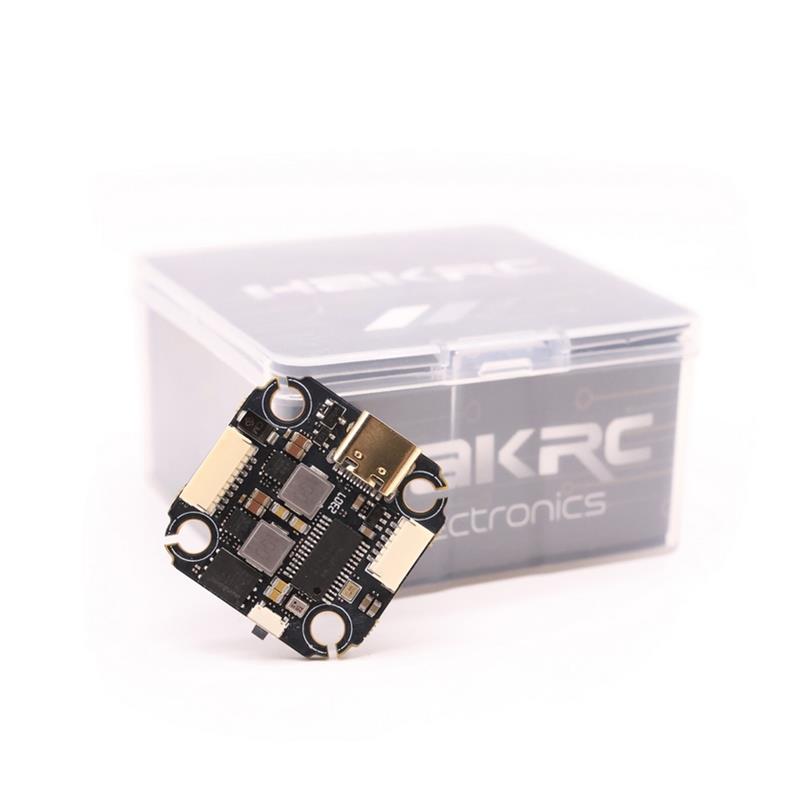

20x20mm HAKRC F7220V2 Mini F7 Flight Controller Dual Gyro 5V 10V BEC Output Built-in LED Light Current Sensor for RC Drone FPV Racing

20x20mm HAKRC F7220V2 Mini F7 Flight Controller Dual Gyro 5V 10V BEC Output Built-in LED Light Current Sensor for RC Drone FPV Racing
Specifications:
Brand:HAKRC
Model:F7220V2 Mini
Item Name:20x20mm F7 Mini Flight Controller
CPU:STM32F722RET6
IMU:ICM42688 Dual Gyroscope
OSD:AT7456E
Barometer:Integrated
Black Box:16M
BEC:5V/3A, 10V/2.5A
Uart:6
LED:Adjustable LED light
Sensor:Built-in current sensor
Firmware Version:HAKRCF722V2
Support Receiver:Compatible Futaba/ Frsky/ Flysky/ TBS CRSF/ DSMX/DSM2
Size:30*30mm (with 20mm-20mm mounting holes)
Product Weight:8.5g
Package Size:64*64*35mm
Package Weight:38.5g
Features:
High-Quality PCB:This Drone Flight Controller is designed with a high-end 6-layer, 1oZ thick copper skin PCB that offers robust anti-interference capacity, ensuring reliable performance.
Precision Control:With dual gyroscope design, our Flight Controller minimizes the error for more precise navigation.
Temperature Resistant:The industrial-grade LDO ensures resistance to high temperatures, providing excellent durability under various operating conditions.
Easy Installation:It uses a plug-in connector design for easy installation without the need for soldering, saving you time and effort.
Customizable and Flexible Power Control:The controller comes with an external LED light strip 10V power supply and image transmission power supply, which can be controlled by setting the remote control channel through the ground station, giving you full control of your drone’s operation.
Package Included:
1x F7 Flight Controller
2x Connection Cable
4x Anti-vibration Ball
