30.5×30.5mm HAKRC 50A BLheli_S 4in1 Brushless ESC 2-8S Support DShot600 for RC Drone FPV Racing

30.5×30.5mm HAKRC 50A BLheli_S 4in1 Brushless ESC 2-8S Support DShot600 for RC Drone FPV Racing
Specifications:
Brand:HAKRC
Item Name:50A BLheli_S 4in1 Brushless ESC
ESC Firmware:BLHeli_S 16.7
Protocols Supported:PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage:2S-8S Lipo
Current Scale:160
Continuous Current:50A
Peak Current:60A
Dimension:40*41mm (mounting hole 30mm-30mm)
Package Dimension:64*64*35mm
Net Weight:12.5g
Package Weight:51.5g
Features:
Superior PCB Design:The HAKRC 2130 four-in-one ESC boasts a high-end 6-layer 2oZ thickened copper skin PCB. This ensures stronger overcurrent capacity and superior heat dissipation for smooth operation.
High-Quality MOS:The product employs imported 40V high endurance MOS, promising long lifespan and impressive load capacity. This leads to a robust and durable performance throughout its service life.
Industrial-Grade LDO:The HAKRC 2130 is equipped with an industrial-grade LDO, providing excellent resistance to high temperatures. This means it can maintain its performance even under extreme temperature conditions.
Premium Quality Capacitors:The use of high-quality Murata capacitors from Japan ensures excellent filtering performance, contributing to the overall reliability of the speed controller.
Advanced Hardware & Technology:The product features high-quality hardware, including imported MOS and an FD6288Q driver. Alongside this, it offers PWM and Damped Light technologies. The hardware PWM drives motors with low noise and smoother throttle response. The Damped Light technology, on the other hand, provides regenerative braking functionality, which ensures more precise control and extends the battery’s flight duration.

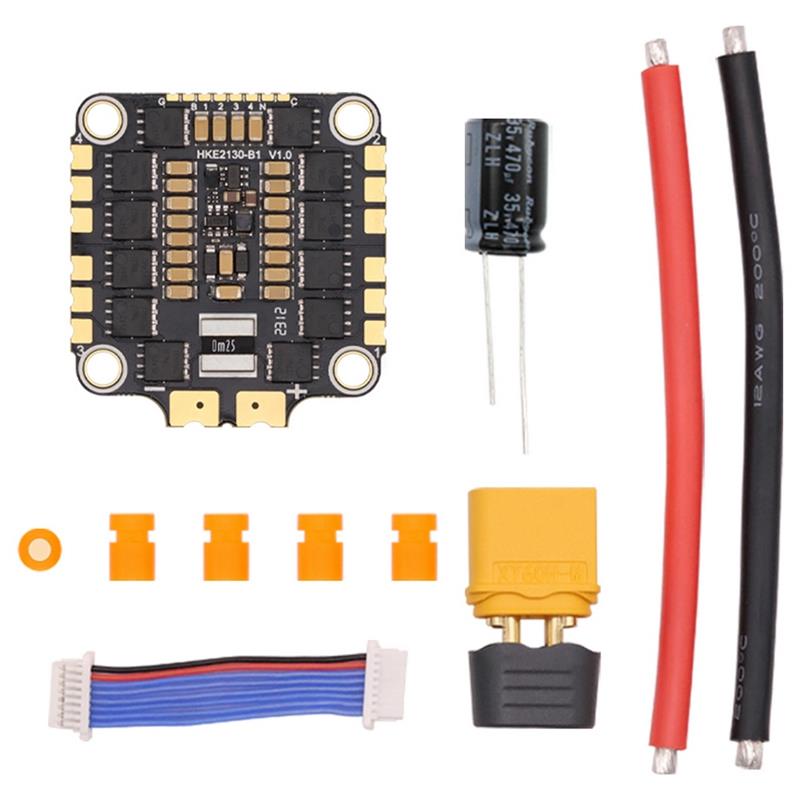

Package Includes:
1x HAKRC 50A BL_S ESC
1x Capacitor
1x Connection Cable
1x Connector Plug
1x Red Cable
1x Black Cable
4x Anti-Vibration Ball
