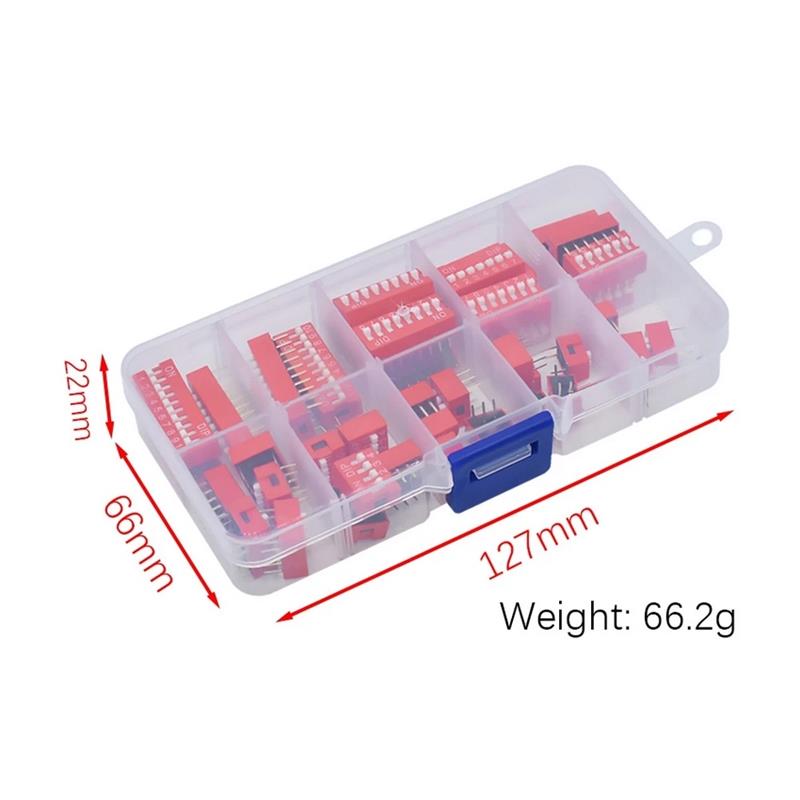

45Pcs Dip Switch Kit 2.54mm Toggle Switch Red Snap Switches Mixed Kit In Box 1 2 3 4 5 6 7 8 10 Way Combination Set
Specification:
| Product name | Dial the code switch |
| Spacing | 2.54MM |
| Operating force | 8N(limited) |
| Push the button trip | 2.00mm |
| Use of temperature | -20?}~+70?} |
| Storage of temperature | -40?}~+85?} |
| Contact impedance | Initial value is 50m??, and the maximum value after the test is 100m?? |
| Insulation impedance | Maximum value is 100 megohm and 500VDC |
| Compressive srength | 500VAC/1 minute |
| Event a capacitance | Five pf limit |
| Loop | Single contact selection |
| Electrical life | When tested under voltage 24VDC and current 25mA, it can be toggle back and forth for about 2000 times |
| Rated current for infrequent switching of switches | 10mA, 50VDC |
| The switch frequently switches the rated current | 25mA, 24VDC |
Product introduction:
DIP switch (also known as DIP switch, toggle switch, overfrequency switch, address switch, toggle switch, digital switch, dial switch) is an address switch for operation control, using 0/1 binary coding principle
Shell color:red:(Gold plated pin with high reliability and high temperature resistance)
Contact resistance:<50 mM 2.54mm pin spacing chip dip switch
Widely used in data processing, communication, remote control and anti-theft automatic alarm system, air shower, train model and other manual programming products
Cover:PBT plastic(red)
Base:PBT plastic(black)Operating lever:PBT plastic(white)Pottin adhesive:epoxy resinTerminal:tin plated phosphor bronze, contact gold platedSealing tape:polyimide KAPTONMatters needing attention:1. Ensure that the switch is in the ‘OFF’ position during all operations;2.Hand welding:use 30W soldering iron control, the temperature is 320?Fwelding time is about 2 seconds;3. Wave welding:solder temperature is recommended at 250+5?};4. Cleaning process:the use of ultrasonic cleaning. can give better effect the use of steam cleaning the temperature can not exceed 51?}.
Package Included:
45 x 2.54mm Toggle Switch
Additional information
| Weight | 0.07 kg |
|---|
