Radiomaster ER8-G/ER8-GV 2.4GHz 8CH ExpressLRS ELRS RX 100mW PWM Receiver Support Voltage Telemetry for FPV RC Drone Airplane Glider
Radiomaster ER8-G/ER8-GV 2.4GHz 8CH ExpressLRS ELRS RX 100mW PWM Receiver Support Voltage Telemetry for FPV RC Drone Airplane Glider
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, quick response speed and ultra-long range bringing you brand new experience with your hobby.The ER8G & ER8GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at the any given time). Both ER8G & ER8GV feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.The ER8G Receiver has the same functionality as the ER8GV only without a built in Vario for competitions that prohibit the use of Vario or simply for users who do not need a vario on their receiver.
Description:
Brand:RadioMaster
Model:ER8-G/ ER8-GV (Optional)
Specification (ER8G)Item:ER8G 2.4GHz ELRS PWM ReceiverPower supply:DC 3.5 – 8.4VAntenna type:20cm high sensitivity antennaWireless protocol:ExpressLRS 3.2 pre-installedOutput channel:8CH PWMReturn power:maximum 100mw (LUA can be set)Battery voltage detection range:DC 4.0 – 35VWeight:12 gramsDimensions:60*13.5*13mmFirmware:Device Category:Radiomaster 2.4Ghz / Device:Radiomaster ER8G
Specification (ER8GV)Item:ER8GV 2.4GHz ELRS PWM ReceiverPower supply:DC 3.5 – 8.4VAntenna type:20cm high sensitivity antennaWireless protocol:ExpressLRS 3.2 pre-installedOutput channel:8CH PWMReturn power:maximum 100mw (LUA can be set)Built-in high-precision air pressure sensor (Vario)Battery voltage detection range:DC 4.0 – 35VWeight:12 gramsDimensions:60*13.5*13mmFirmware:Device Category:Radiomaster 2.4Ghz / Device:Radiomaster ER8GV
Features:
* Based on the Revolutionary ExpressLRS System.
* High performance, high reliability, flexible configuration, quick response speed and ultra-long range.
* Support 8 PWM Channels.
* Optimized ground up PCB design.
* Automatically voltage telemetry of external battery voltage or built-in receiver voltage.
* ER8GV receiver is built-in high-precision air pressure sensor (Vario).
* Supports Wi-Fi updates and WEBUI configuration.
* Reserve 4pin CRSF input port.
* High quality 2.54 mm connector.

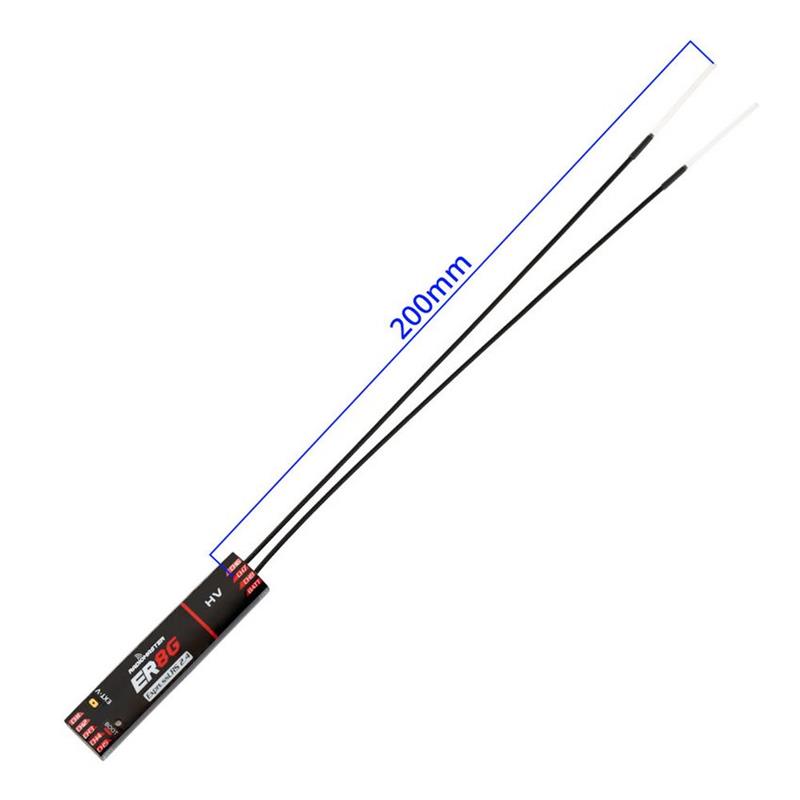

* Standard 20 cm High Sensitivity Antenna.
* For fixed-wing aircraft and gliders
Package Included:
1 * ER8G or E8GV 2.4GHz ELRS PWM Receiver2 * Heat-shrink tube1 * Voltage telemetry wire (Type-A)1 * CRSF wire1 * ELRS- RX- SBUS wire1 * User Card
Additional information
Weight | 0.0105 kg |
---|---|
Version: No selection | ER8-G, ER8-GV |
