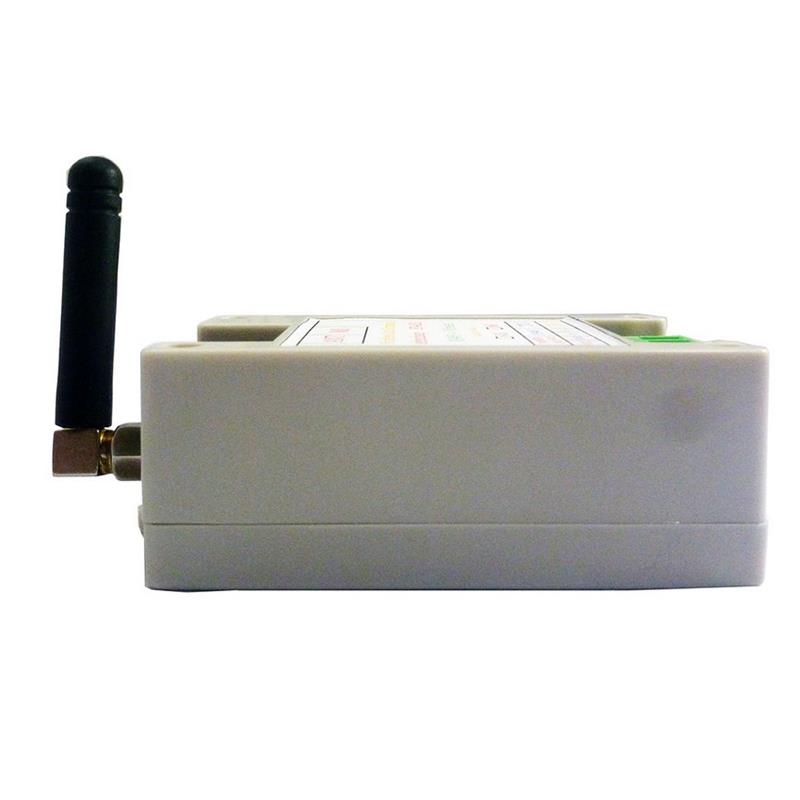

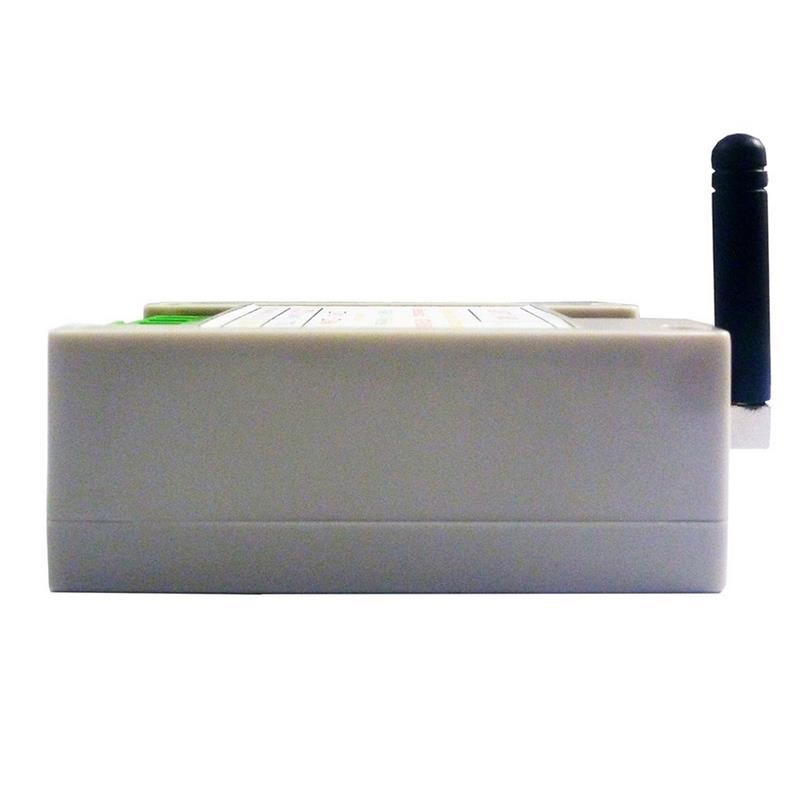

RT4AE01 433M 868M RS485 USB Wireless Transceiver Serial Data Long-distance Transmission Module
Specification:
Working voltage:4.8V-9V (2A Power Supply is Recommended)
Interface:RS485/RS232/USB
Frequency:433MHz/868MHz
Transmit power:-40~+20dBm
Receiver sensitivity:-114dBm
Operating temperature:-25?}~+75?}
Transparent transmission mode baud rate:1200, 2400, 4800, 9600 (Default), 19200, 38400, 57600, 115200
Open ground transmission distance:500 meters
Size (without antenna):80x50x31mm
Weight (without antenna):50g
Features:
1. Wide working voltage range allows flexibility in power supply options.
2. Multiple interface options (RS485/RS232/USB) provide versatility in connectivity.
3. Dual frequency options (433MHz/868MHz) for optimal signal transmission.
4. Adjustable transmit power (-40~+20dBm) for different application requirements.
5. High receiver sensitivity (-114dBm) ensures reliable reception of signals.
6. Wide operating temperature range (-25?}~+75?}) allows for use in various environments.
7. Transparent transmission mode with multiple baud rate options enables flexible data communication.
8. Open ground transmission distance of 500 meters allows for long-range communication.
9. Compact size (80x50x31mm) and lightweight design (50g without antenna) for easy installation and portability.
Package include:
1?? Module Board
Additional information
Weight | 0.02 kg |
---|---|
The Type: No selection | RS232 433M, RS232 868M, RS485 433M, RS485 868M, TB450 433M Antenna, TB451 868M Antenna, USB 433M, USB 868M |
