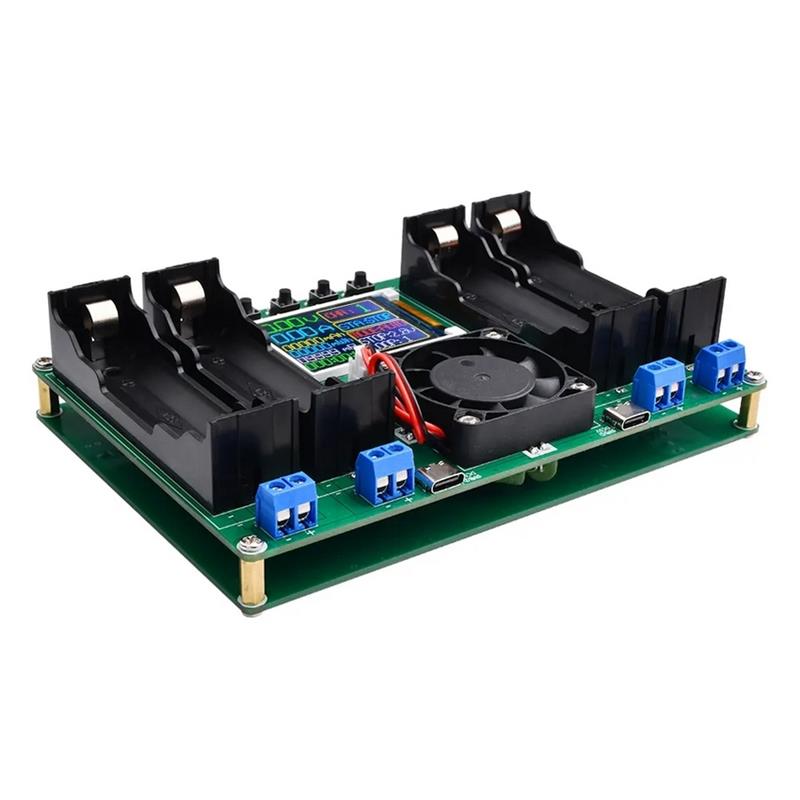

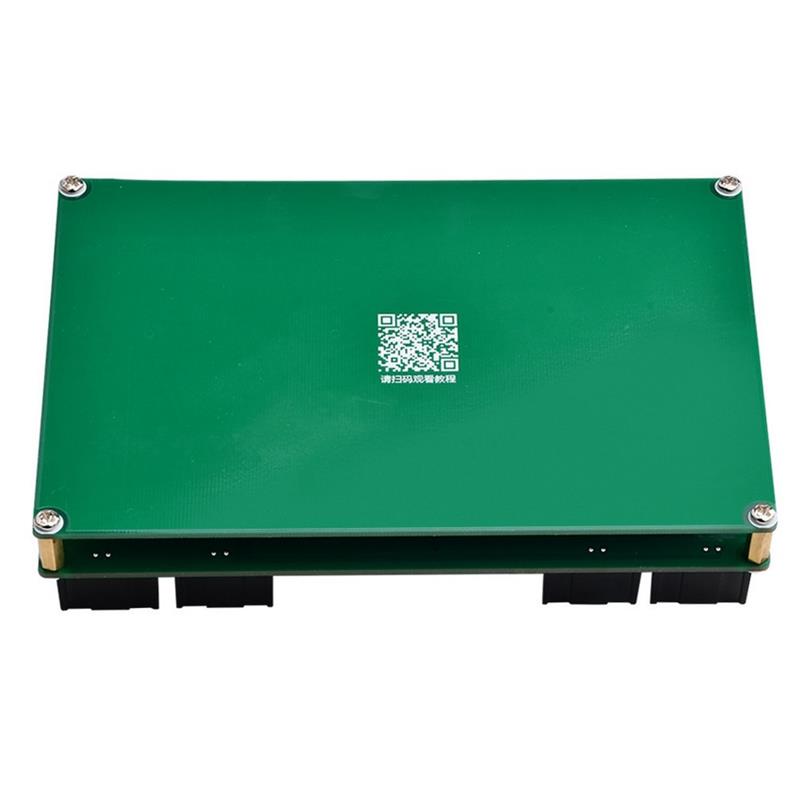

LCD Display 18650 Lithium Battery Digital Measurement Lithium Battery Power Detector Module 4 Channels Battery Capacity Tester DC 5V
Specifications:Working voltage:DC5VApplicable battery:suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2VPower supply interface:two Type-C power supply interfacesSystem language:English Test quantity:4-way charging and discharging measurementInternal resistance measurement:support, use DC two-wire method to test internal resistanceCharging function:support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)Discharge function:support, automatically stop when conditions are met, and the discharge current is not adjustableAutomatic charging and discharging:supported. The battery is fully charged at the end of automatic modeCyclic charging and discharging:supported, 1~9 cycles adjustable (only supported in automatic mode)Status prompt:SupportedCooling mode:fan active coolingOverheat protection:supportStop discharge voltage:2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gearsDischarge current:the maximum current is about 1A, which is not adjustable, and does not support stand-alone modification
Charging voltage:controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2VPower-off saving:only save the set parameters, not the measurement dataWeight:200g
Package Included:
1 x Battery Capacity Tester
Additional information
| Weight | 0.2 kg |
|---|
