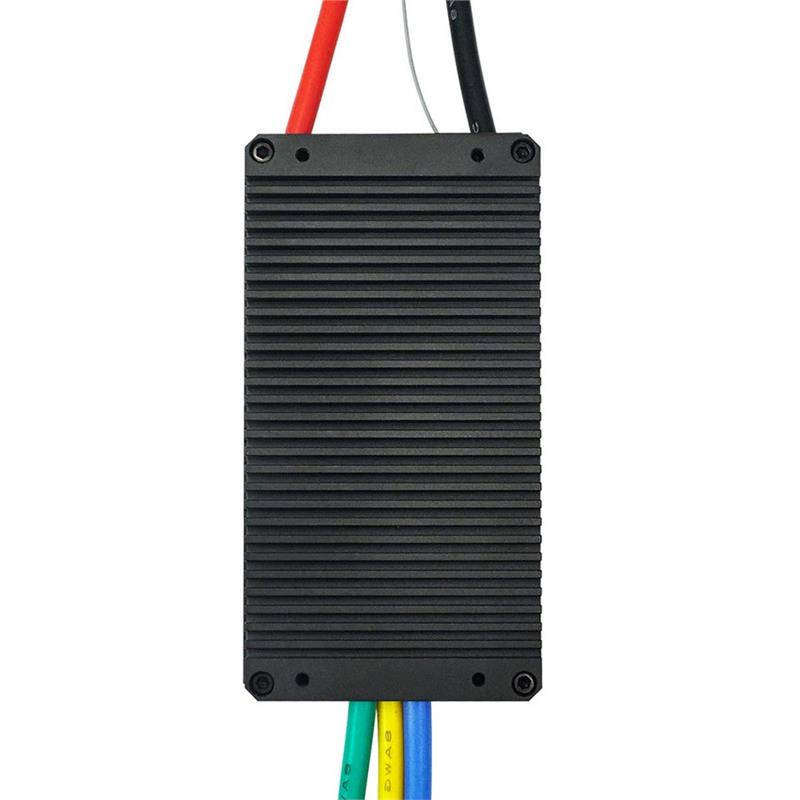

Flipsky 75200 Pro 84V ESC High Current with Aluminum PCB for Fighting Robot Surfboard AGV Robot RC Cars Models Parts
Warn Tips:It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Description:
Item Brand:Flipsky
Item Name:75200 pro esc
Material:Metal
Color:Black
Product Size:About 130*67.7*39.4mm
Compatible Model:Electric Skateboard /Ebike/ Scooter/Robots RC Car Vehicles ModelsSpec:
Firmware:5.2, supports firmware upgrade
Voltage:14-84V (safe for 4-20S)
Continuous Current:50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst:300A
BEC:5V@1A
Support Modes:DC, BLDC, FOC (sinusoidal)
ERPM:150000
Communication Ports:USB, CAN, UART, SPI, IIC
Supported Sensors:ABI, HALL, AS5047, AS5048A
Input Source Support:PPM, ADC, NRF, UART
Supported Sensorless:Yes
Regenerative Capacity:Yes
Programmable via TOOL:Yes
75200 Pro Size:130×67.7×39.4mm
Motor/Power Wire Size:8 AWG
Features:
1. 75200 aluminum substrate single drive:MOS tube temperature detection is abnormal (minimum display temperature at low temperature is about 30ɳC)2. 75200Pro aluminum substrate single drive:MOS tube temperature detection is normal (hardware has been optimized for the problem that the minimum display temperature is about 30ɳC at low temperature)
3. 75200 aluminum substrate single drive:support dual serial port function4. 75200Pro aluminum substrate single drive:supports single serial port function, and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time)Warn Tips:Phase filering is not available for Flipsky ESC75100 and 75200!Please turn off the phase filter function and choose ‘false’ in vesc_tool when use firmware version on or above 5.3 (TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Package Included:
1X 75200 Pro ESC
Additional information
Weight | 0.62 kg |
---|---|
NO.: No selection | 1 |
