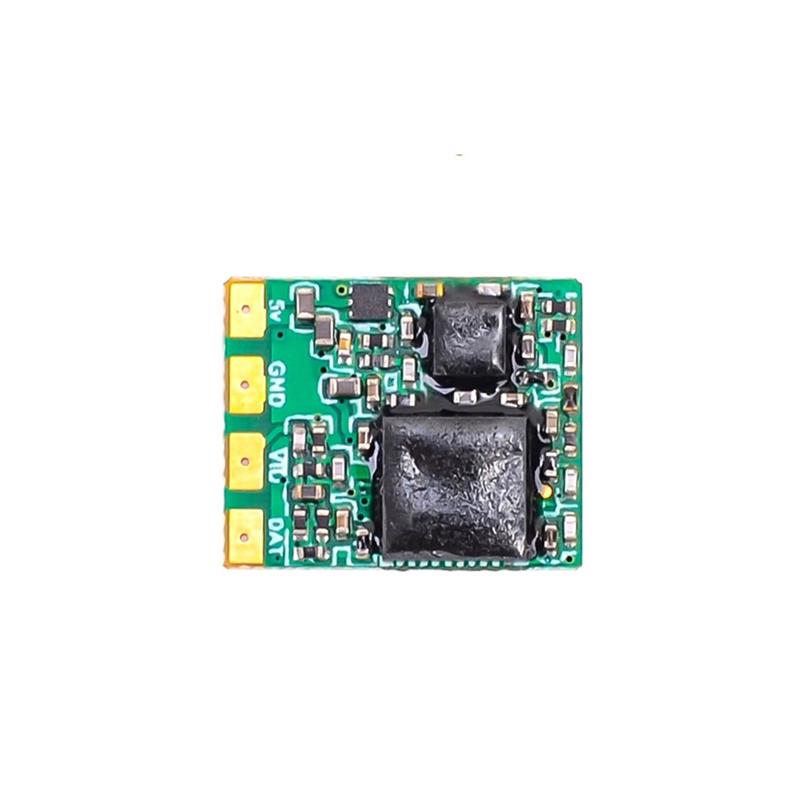

MasterPilot S1 5.8Ghz 48CH FPV Transmitter 0-25-100-400MW Open Source OpenVTX Transmission VTX for RC Drone
Master Pilot S1 VTX , We have improved the robustness, decreased the size and perfected the way it is installed in your quad.This VTX have set the standard for the highest quality,durability,and overallone of the best VTX made to datewhile retaining the same affordability.
Features:
48ch video transmitter line (custom channels via SmartAudio orTramp)
Power to Channel calibration for each channel – extremely consistent outputpower
0(pit mode)-RCE-25MW-100MW-400MW
OSD configuration using Smart Audio or Tramp(automatically detected by OpenVTX?@
U.FL connector
Improved noisefiltering
Optimized heatdissipation
Specifications:
Transmitting Power:0(Pit Mode)/RCE/25mw/100mw/400mw
BAT:5V
Frequency:5.8G48CH
Antenna:IPEX
Size:12.5MM*15MM*3.5MM
Weight:1.1g
OpenVTX aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol canbe used on the flight controller and on VTX power up the protocol used is automatically detected by OpenVTX.
Package Included:
1 x S1 VTX
1 x5.8GLinearAntenna
4 x SiliconeWire
1 x Heat shrinkable tube
Additional information
| Weight | 0.011 kg |
|---|
