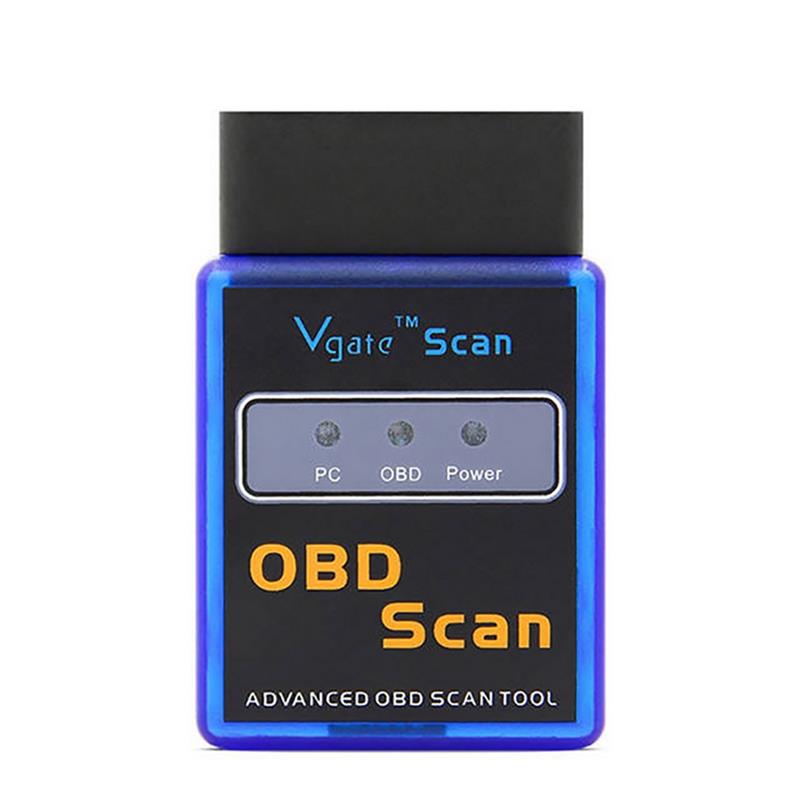

Vgate Mini ELM327 bluetooth OBD2 V2.1 ELM 327 OBD 2 Car Diagnostic Tool Code Reader Diagnostic Tool OBD II Scanner
Functions
1. Display current sensor data, including:Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen Sensor Voltages/Associated Short Term Fuel Trims, Fuel System Status, Fuel Pressure, etc.
2. Clear trouble codes and turn off the MIL(‘Check Engine’ light).
3. Compatible Phones:Android Smartphone.
4. Compatible Software:Easy OBD2, ScanMaster ELM, wOBD Crazy and More.
5. Processor:ELM327 V2.1.
6. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning(Over 3000 generic code definitions in the database).
7. Supported Software Compatible for Windows, OSX, Palm, Pocket-PC, Linux, Android, DOS and Windows Smartphone.
8. Support OBD2 Protocols(ISO15765-4(CAN), ISO14230-4(KWP2000), ISO9141-2).
9. Work with Android Torque(Suggested).
10. Work with OBD2 Complaint Vehicles.
Support OBDII Protocols
ISO 9141-2(5 baud init, 10.4 kbaud)
ISO 14230-4 KWP(5 baud init, 10.4 kbaud)
ISO 14230-4 KWP(fast init, 10.4 kbaud)
ISO 15765-4 CAN(11 bit ID, 500 kbaud)
ISO 15765-4 CAN(29 bit ID, 500 kbaud)
ISO 15765-4 CAN(11 bit ID, 250 kbaud)
ISO 15765-4 CAN(29 bit ID, 250 kbaud)
Specifications
1. Operating voltage:12V, internal protection from short circuits/overvoltages
2. Nominal idle current:45mA
3. Product dimension:47 * 32 * 23mm
4. Net weight:22g
5. Package weight:53g
Package Includes:
1x Car Diagnostic Tool
Additional information
Weight | 0.05 kg |
---|
