25.5mmx25.5mm Happymodel CrazyF405HD ELRS AIO 1-2S F4 Flight Controller Built-in 12A BL_S 4In1 ESC Receiver for Mobula8 Digital HD Whoop Toothpick FPV Racing Drone
Introduction:

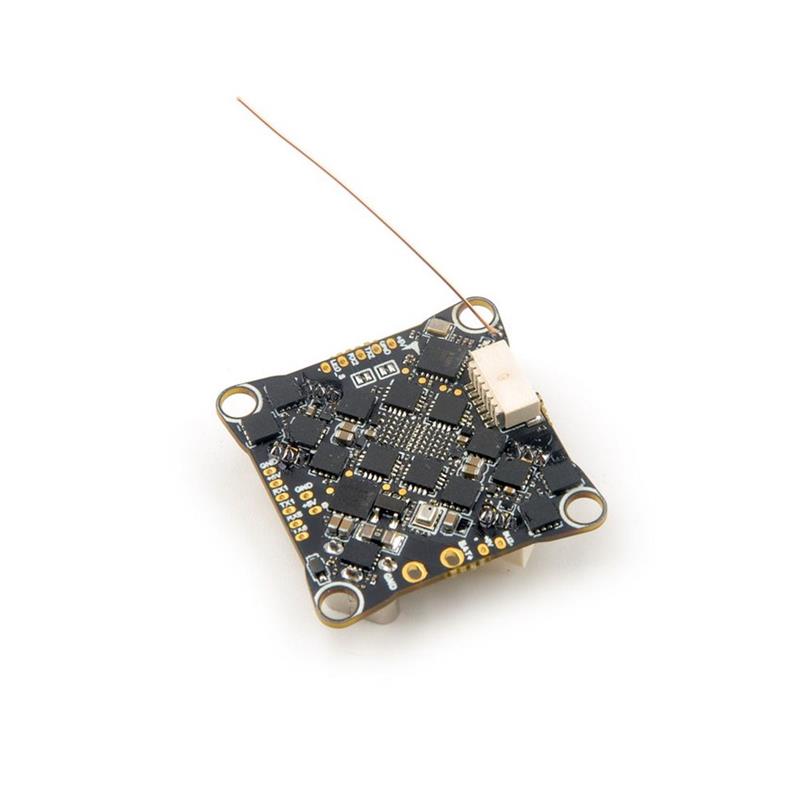

A flight controller with a builtin Serial ELRS receiver and 4IN1 BL_S 12A ESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout, and supports 1-2S Lipo / LiHV lithium batteries, very Suitable for Digital HD Tinywhoop / Cinewhoop / Toothpick and other small FPV drones.
The flight controller uses the F405 chip, supports Betaflight/INAV firmware, has 3 sets of complete UARTs available, and integrates a BMP280 barometer and 8Mbp blackbox, which greatly enhances the playability of the flight controller.
Specification:
Brand:Happymodel
Model:CrazyF405HD
Item Name:F4 Flight Controller AIO 12A 4in1 ESC ELRS Receiver
Mount size:25.5×25.5mm
Weight:4.8g (without power lead wire)
| Flight Controller | MCU:STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor:BMI270 (SPI connection) Mount hole size:25.5mm*25.5mm Power supply:1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply:1-2S LiPo/LiPo HV Current:12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware:Bluejay ESC V0.19 Firmware target:Z-H-30 Default protocol:DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option:25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency:2.4GHz Antenna:enameled copper wire 31mm length Telemetry output Power:<12dBm Default firmware version:ExpressLRS V3.0.1 Firmware target:HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |

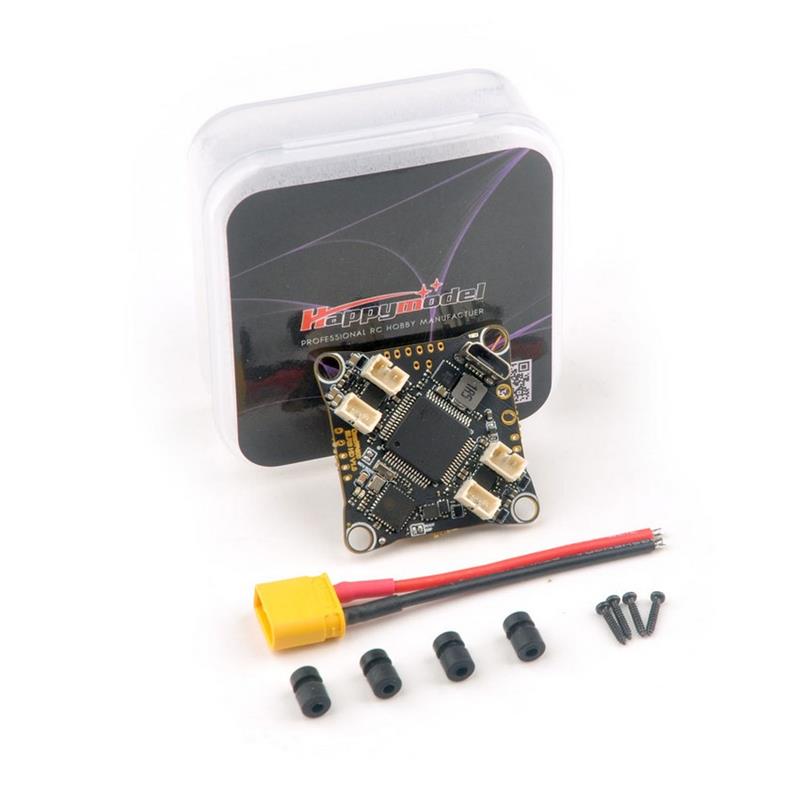

Pacakge Included:
1x Happymodel CrazyF405HD Board
1x Cable Connector
4x Anti-vibration Ball
4x Screws
Additional information
| Weight | 0.005 kg |
|---|---|
| Model: No selection | Flight Controller |
