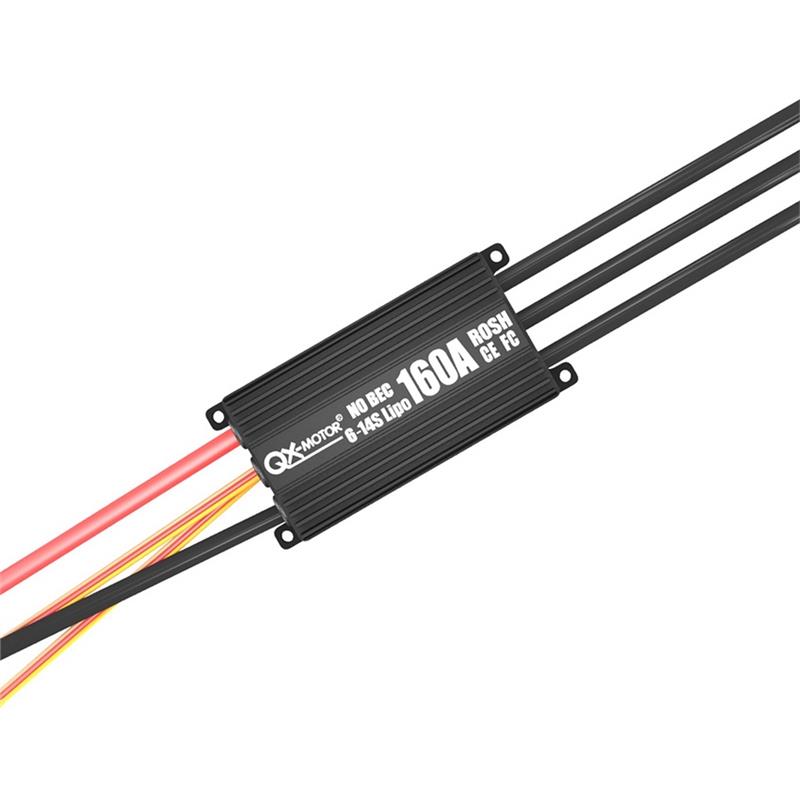

QX-MOTOR 160A 4-14S Brushless ESC Without BEC For EDF Unit Ducted Fan Jet RC Airplane
Product parameters:
Brand Name:QX-Motor
Item Name:160A ESC
Model:A32-160A-14S
Size (MM):87.5*43*27.5
BEC:none
Voltage:16.8V-58.8V
Installation hole distance (MM):81*35
PWM frequency:16KHZ
Continuous current:160A
Installation hole diameter:3MM
Weight:189g
Features:
1. Adopt 32-bit processor and high-quality original MOS tube, with strong performance and high reliability.
2. It has good compatibility with motors and can adapt to most motors on the market.
3. With low voltage protection and overheat protection. Throttle signal loss protection, overload protection and other multiple protection functions.
4. It has a smooth and delicate speed control feel and first-class speed control linearity.
5. Has strong flow resistance.
6. The long signal line transmits signals through optocoupler isolation, which has good anti-interference ability.
English Manual, Click Here
Package List:
1x QX-MOTOR 160A ESC
Additional information
| Weight | 0.198 kg |
|---|
