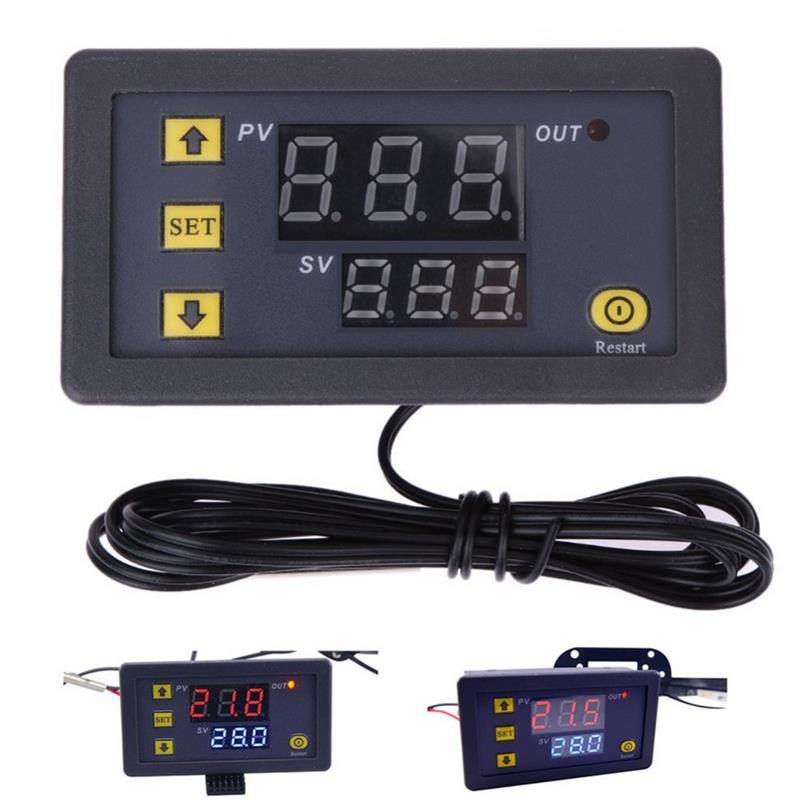

W3230 12V 24V AC110-220V Probe line 20A Digital Temperature Control LED Display Thermostat With Heat/Cooling Control Instrument
Specifications:
| Model | W3230 |
| Power Supply | 12V DC/24V DC/110V-220V AC |
| Temperature Control Range | -55?F-120?F |
| Resolution Ratio | 0.1?FC(-9.9-99.9) |
| 1?FC(other range) | undefined |
| Color of Displaying | red/blue |
| Measurement accuracy | ??0.1?FC |
| Control accuracy | 0.1?FC |
| Sensor | NTC10K Waterproof sensor |
| Output | Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V |
| Environmental requirements | -10-60?FC , humidity 20%-85%RH |
| Dimension | 79mm *43mm*26mm |
| Cutting Size | 73mm*39mm |
| Sensor wire | 1 meter |
Description:
-Mini temperature controller.
-With clear LED display for better readability.
-Wide temperature measuring range.
-Heating or cooling control.
-All parameters setting can be saved after short circuit.
-Relay output.
-High Control precision 0.1 centigrade
-Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.
Package Includes:
1x Digital Temperature Controller
Additional information
| Weight | 0.2 kg |
|---|---|
| The Type: No selection | 110-220V, DC12V, DC24V |
