Description:
Item Brand:Flipsky

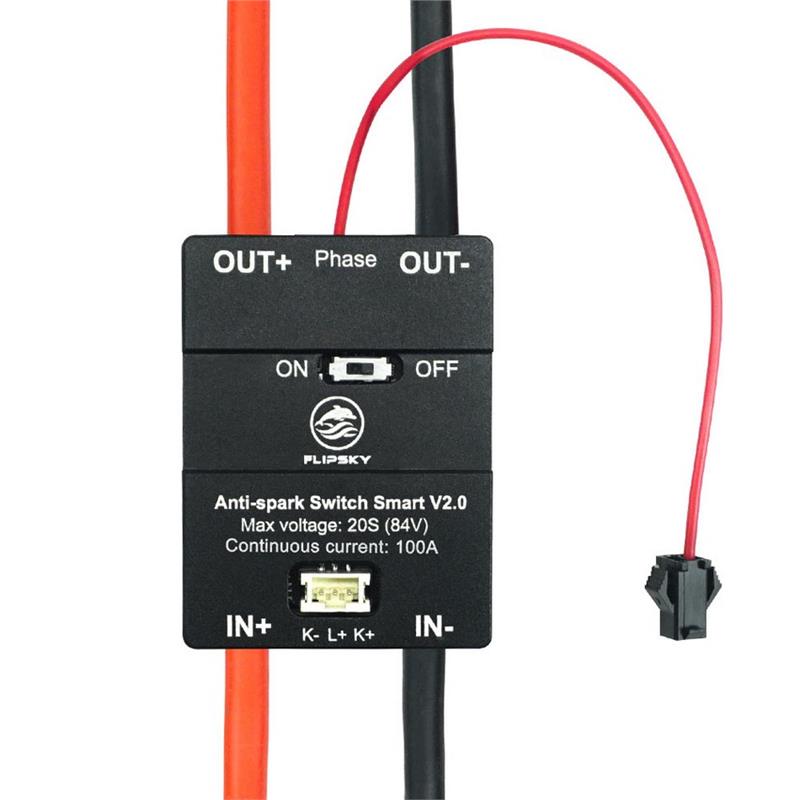

Item Name:Anti spark switch
Material:Metal
Color:Black
Product Size:About 60*45*16.5mm
Product Weight:About 120g
Compatible Model:Electric Skateboard /Ebike/ Scooter/Robots RC Car Vehicles ModelsSpec:
Hardware:V2.0
Voltage:12V-84V (3-20S)
Continuous Current:100A , Max Current:300A
LED Button Diameter:16mm/12mmFeatures:
MOS model:HYG015N10NS1TA

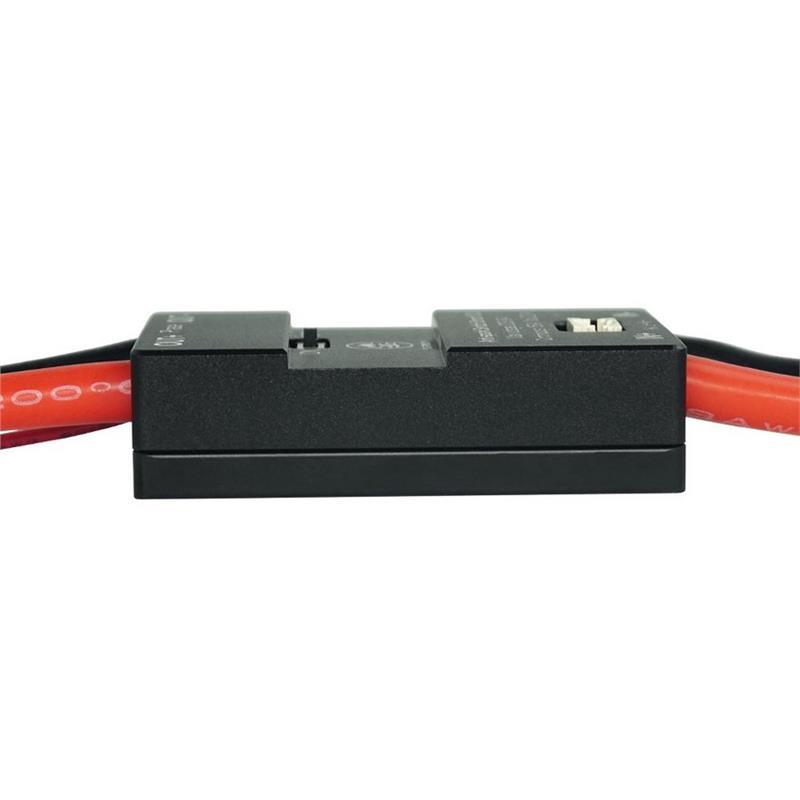

Metal shell increases heat dissipation and prolongs life
Self-reset switch with LED button Diameter:16mm/12mm (12mm or 16mm diameter reset switch can be freely selected)
The smart switch mode can be switched freely (turn the toggle switch to ‘ON’ to turn on the smart switch mode; turn the toggle switch to ‘OFF’ to turn off the smart switch mode)
Smart switch mode:slide to turn on, the skateboard will automatically turn off after 5 minutes of static
Support momentary button function:press and hold for 0.3s to turn on, 1s to turn off; press and hold it to cycle on and then off
Package Included:
1x SwitchWiring Diagram:Please Click Here
