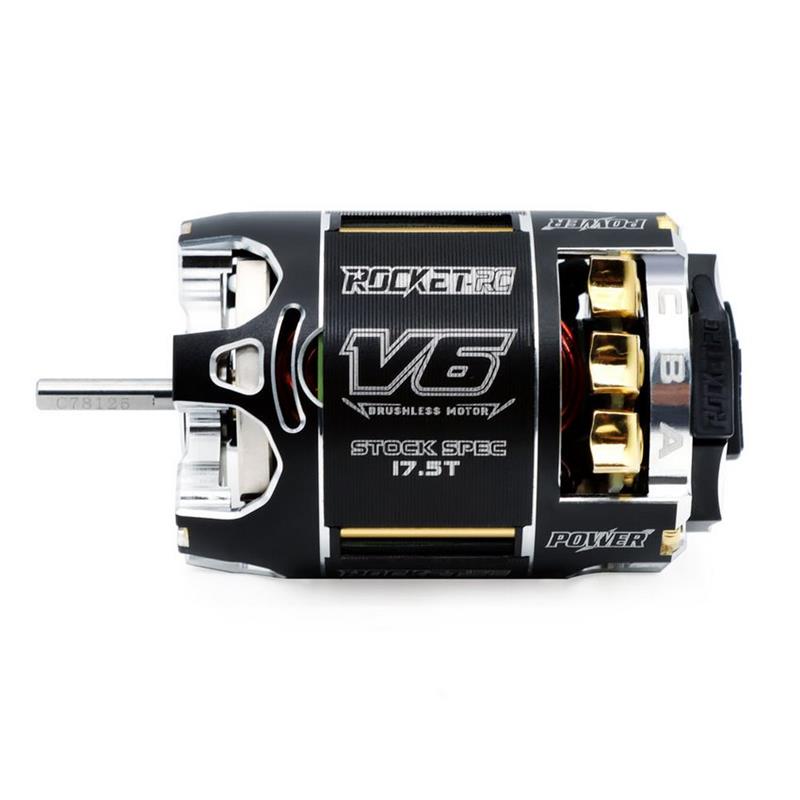

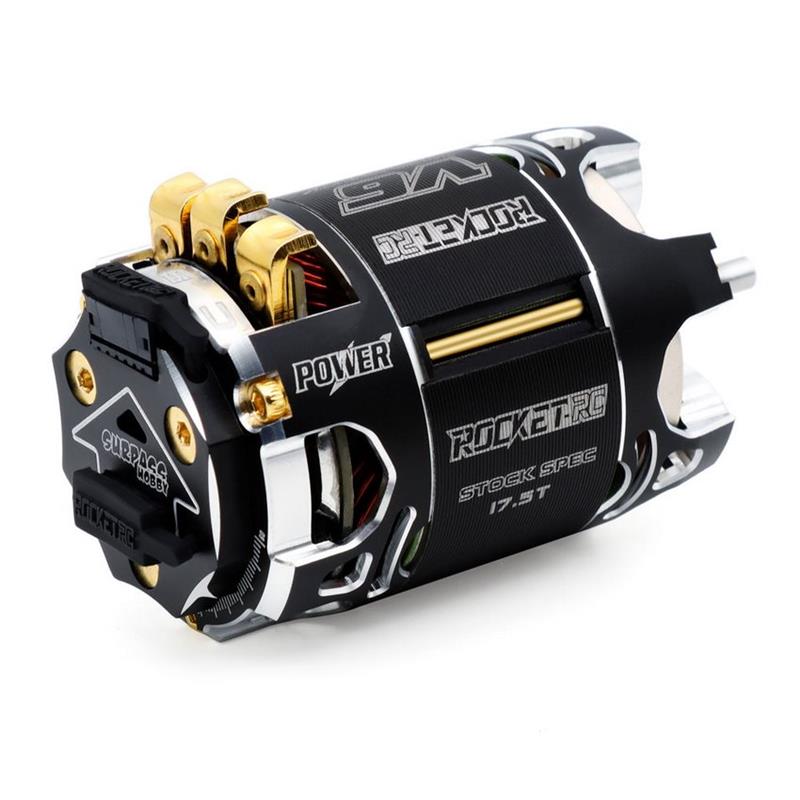

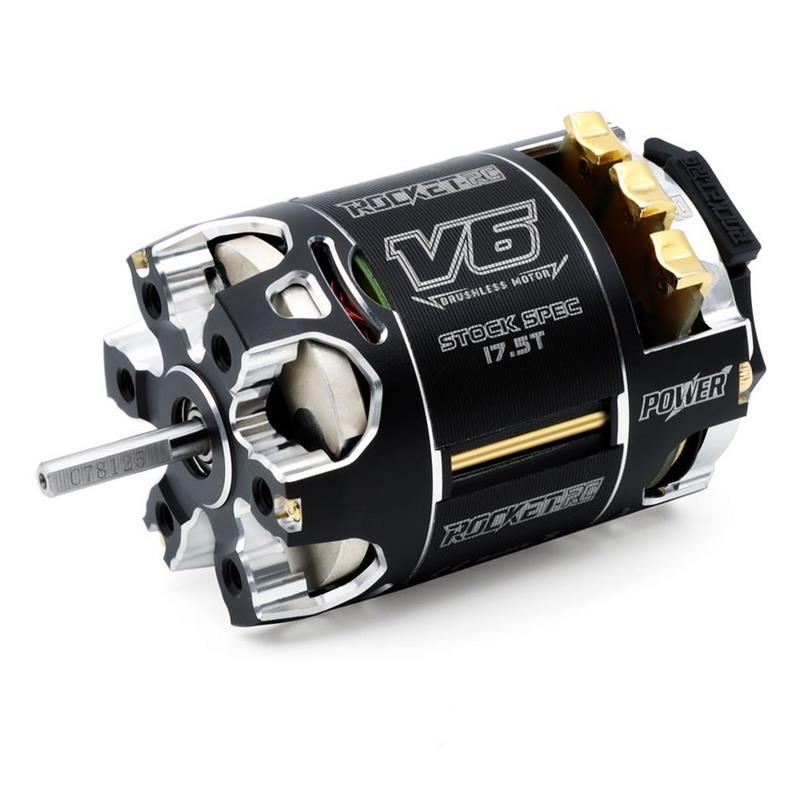

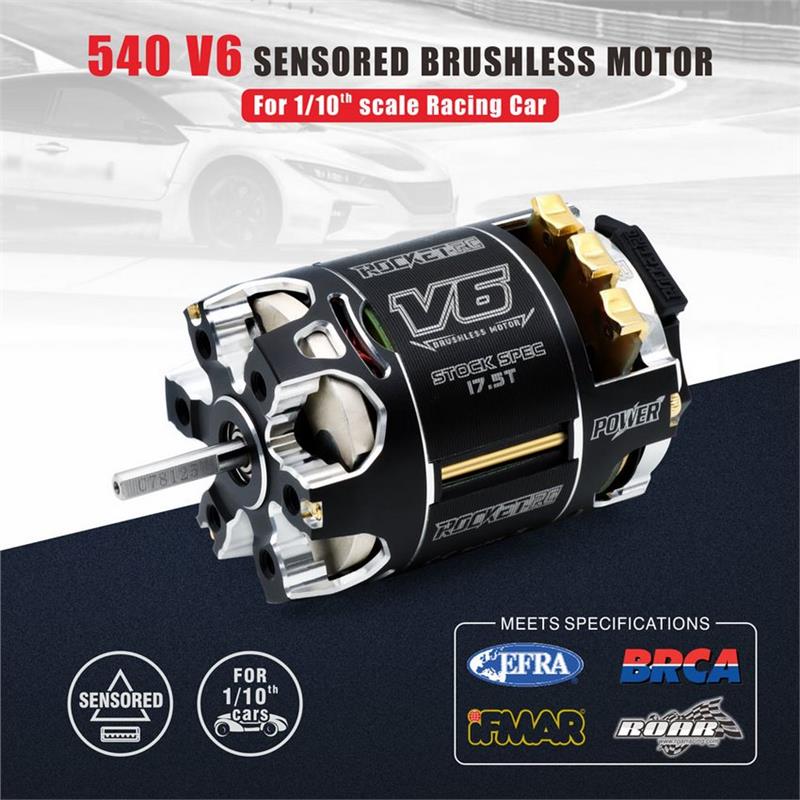

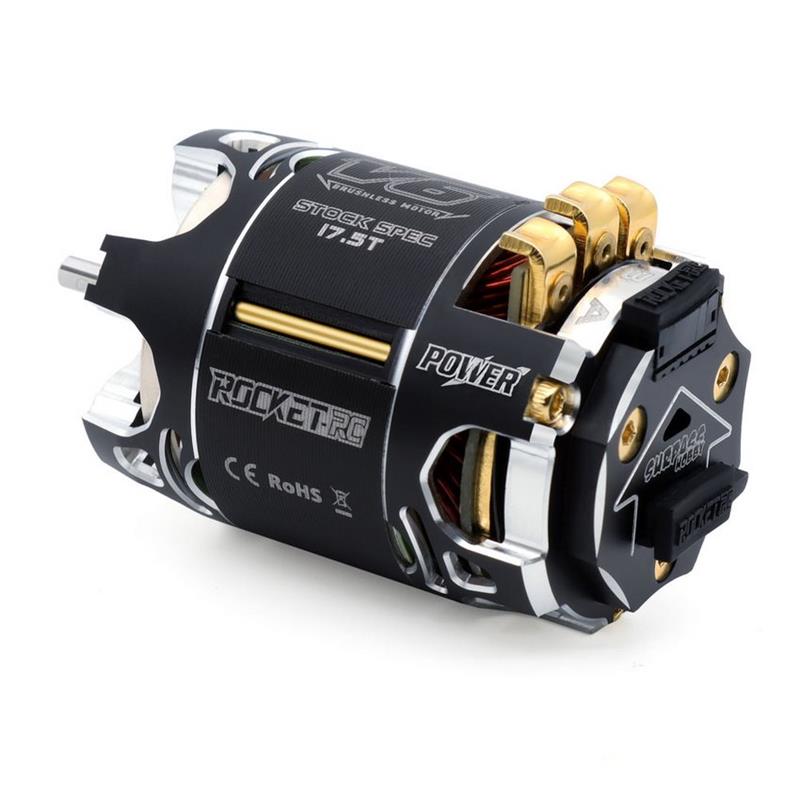

Surpass Hobby Rocket-RC 540 V6 Sensored Brushless Motor 10.5T/13.5T/17.5T/21.5T STOCK for 1/10 Racing RC Car Vehicles Models Parts

Surpass Hobby Rocket-RC 540 V6 Sensored Brushless Motor 10.5T/13.5T/17.5T/21.5T STOCK for 1/10 Racing RC Car Vehicles Models Parts
Description:
Item Brand:Surpass Hobby
Item Number:540 V6
Item Name:Brushless motor
Material:Metal
Color:Black
The Size of the Motor:Length 52.5mm,diameter 38.5mm,shaft diameter is 3.175mm,length of extended shaft is 14.5mm
The Weight of the Motor:About 156g
Fit For:1/10 racing brushless rc cars vehicles models
Recommended ESC:T160A V2 esc(not included)
Specification:
KV:3600/2850/2350KV
Turns:13.5/17.5/21.5
Max Watts:190W/130W/100W
Lipo:2-3S
Max Amps:49A/34A/28A
Rotor Poles:2
IO(7.4V):2.5A/2.1A/1.3A
Resistance:0.0219/0.0368/0.0558
Rotor Size:??12.5*??7.2*25.5mm
TYPE:SPEC
Features:
All-new and Unique Stator Design to Provide Strong Torque and High RPM.
Internal Titanium-Magnet Alloy Heat Sink to Reduce Heat Loss.
CNC Machined 7075 Aluminum Heat Sink Housing.
NSK R2ZZ Bearing Original Imported From Japan, Ensuring Smooth Operation.
American Standard High Purity Copper Windings for Maximum Conductivity.
Thicker Gilding Gold Plated Copper for Maximum Non- resistant Input.
Stator Electroplated to Prevent Ageing and Rusting.
The explosion-proof rotor made of NdFeB, TURBO speeds up to 80,000 RPM.
Adjustable Timing & Dual Sensor Port.
Detachable/Replaceable High Speed Rotor.
BRCA & EFRA approved, Meets ROAR & IFMA specifications.
Patented design of front and rear splicing structure.
36mm Full Size Outside Diameter Increase Output Power by 15%.
Package Included:
1x 540 V6 Sensored Brushless Motor
