10pcs RGB WS2812B 4Pin Full Color Drive LED Lights CJMCU for Arduinno – products that work with official Arduinno boards
Features:
Smart reverse polarity protection, reverse power supply will not damage the IC.
IC control circuit and LED point light source share a power supply.
Control circuit and RGB chip integrated in a 5050 package components, constitute a complete external control pixel.
Built-in signal shaping circuit, every pixel shaping and then output after receiving the signal waveform shaping to ensure that the waveform distortion will not be accumulated line.
Built-in power-on reset and power-down reset circuit.
Three primary colors of each pixel can achieve 256 levels of brightness display, complete 16777216 colors of the true color display, scanning frequency of not less than 400Hz/s.
Serial cascade interface, can complete the data reception and decoding through a signal cable.
No need adding any circuit when any two-point transmission distance is no more than 5 meters .
When the refresh rate is 30 frames per second, the concatenation number is not less than 1024 points.
Data transmission speed up to 800Kbps.
The color of the light is highly consistent and cost-effective.
Application:
LED full-color light-emitting string lights, LED full-color module, LED full-color flexible strip light bar, LED guardrail tube.
LED point light source, LED pixel screen, LED profiled screen, all kinds of electronic products, electrical equipment Marquee.
Package included:

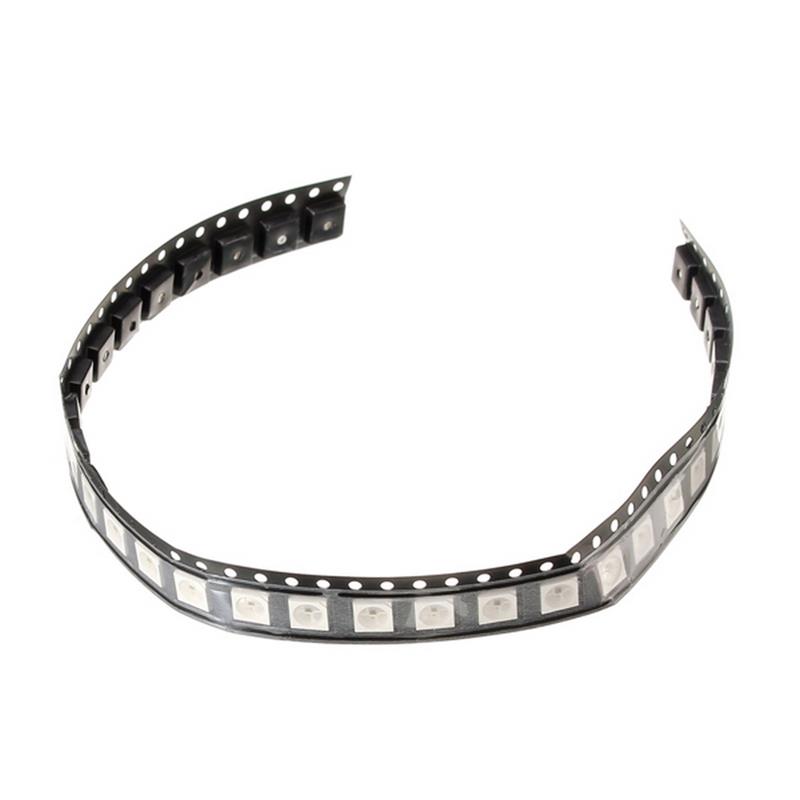

10 x 4Pin Full Color Drive LED Lights
Additional information
| Weight | 0.001 kg |
|---|
