TICAM1 Industrial Infrared Thermal Imaging Camera with 200MP Visible Light Lens Thermometer Temperature Detect Floor Heating
Features:
1. Build in a visible light camera with 200MP pixels. In Infrared refer/merger modes, the resolution used is 320×240.
When using the WIFI function to connect to the computer and view the screen on the computer, users can choose different resolutions from the menu, with a maximum support of 200MP. At this time, this device even can be used as a security monitoring camera.
2. Support the Dual Light (thermal imaging and visible light) Fusion Mode to clearly capture each hotspot.(Merger mode)
3. Built in bright LED light, long press the wheel to turn on the flashlight;
4. Support four display modes:Infrared only, camera only, Infrared refer, and Merger;
5. Supports 5 color palettes, Iron oxide red, Rainbow, White Heat, Blue Orange, and Blue Yellow modes;
6. Emissivity can be adjusted to meet the temperature measurement of different materials;
7. Support image shooting, local storage, browsing, and viewing through a data cable connected to a computer;

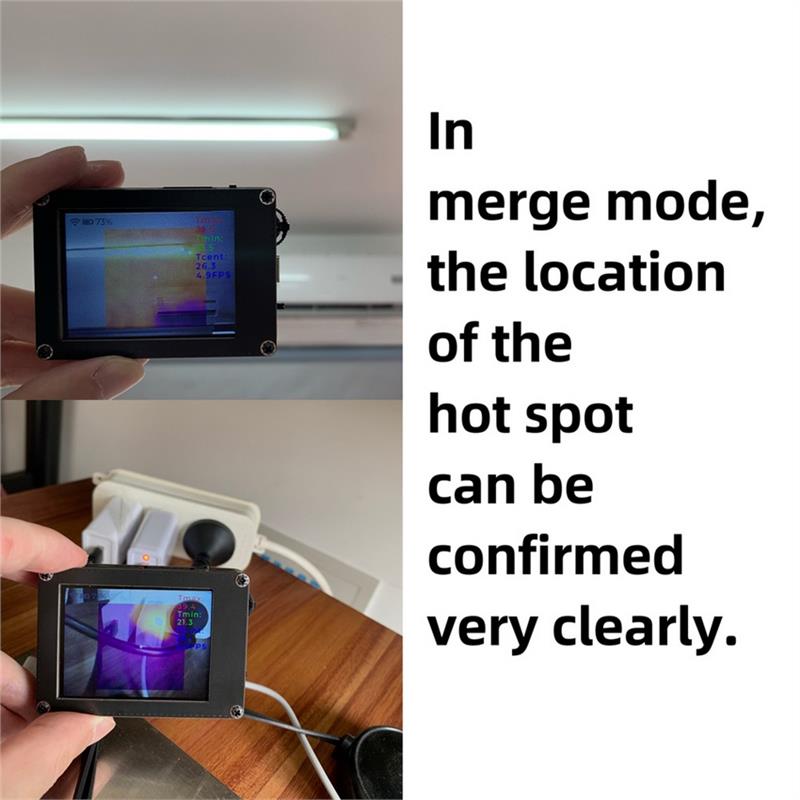

8. In Merger mode, the positions of thermal imaging images and visible light images can be corrected;
9. Support WIFI AP network distribution function, connect to computers or mobile phone through WiFi network, and view local images through computers/mobile devices;
10. You can also view real-time video images through WiFi to achieve real-time monitoring;
11. Support firmware upgrades;
12. Other professional functions:filtering order settings, image display algorithm settings, etc.
13. Equipped with a built-in 1200mAH battery, it can be used for more than 4 hours when the screen is constantly on. If accessed through the network, the screen will automatically shut down to save power
14. 2.4-inch TFT high-definition display screen with a resolution of 320×240
15. Automatically capture the highest and lowest temperatures, as well as the center temperature.
Advantage/b>
TICAM1 is a dual lens thermal imager with thermal imaging sensors and visible light cameras.
Supports 4 display modes:only infrared, only camera, camera refer, and merger mode(fusion mode);
Supports 6 color palettes; Supports image saving and USB flash drive functionality.
Supports WiFi connection, allowing users to browse infrared and visible light camera videos and save screenshots within the local area network through a web browser.
The fusion mode is also called Dual Light (thermal imaging and visible light) Fusion mode. In this mode, the hot spots can be clearly seen.
The thermal imaging camera can be widely used in equipment maintenance, floor heating maintenance and other occasions.
Specification:
Net weight:75g
Volume:75 x 51 x 27mm
Infrared resolution:32 x 32
Infrared FOV:33 ?F x 33 ?F
Visible light lens:200MP, supports up to UXGA (1632×1232)
Interface:Type-C
Storage capacity:1.5M Byte, capable of storing over 50 JPEG format screenshots
Maximum frame count:5.3FPS
Number of color palettes:5 types
Temperature measurement accuracy:?? 3 /span>
Temperature measurement range:-20~1000 /span>
Working temperature:15-45 /span>
Storage temperature:0-60 /span>
Package included:
1 x Thermal imaging camera
Additional information
Weight | 0.115 kg |
---|
