ESCAM PT210 2x3MP Dual lens Dual Perspectives Pan/Tilt Motion Detection Cloud Storage Waterproof WiFi IP Camera with Two Way Audio Night Vision
Feature:
1.3MP Resolution, two lens dual perspectives,can view different angle.2.Smart Dual Light Modes,8pcs IR led + 8pcs white led٫IR distance is up to 20m 3.High quality two way audio,with noise cancellation4.Support WiFi Connection
5.Support motion detection٫Support APP push notification6.Support max up to 128G TF card and cloud storage.7.Support Pan and Tilt monitoring,Pan 355?F+Tilt 90?F8.Support Multi-Platform,Support APP,Web browser and PC client 9. IP 66 waterproof
APP:icam365
Specification:
Model | ESCAM PT210 | ||
Parameters | 3MP resolution | ||
cooperation system | compress technique | H.265 compression algorithm 32Kbps~2Mbps | |
resolution | 2304*1296 | ||
frame rate | 1-25fps | ||
Video standard | PAL | ||
SNR(Signal to Noise Ratio) | ??38dB | ||
CMOS Performance | Support automatic white balance, automatic gain control, automatic backlight compensation | ||
Lens/viewing angle | Pan 355?F, tilt 90?F view, electronic cloud station monitoring, 4mm+6mm two lens | ||
Compression Type | BaseLine Profile / Main Profile / High Profile | ||
Coding standards | Built-in omnidirectional noise-canceling microphone and speaker, supporting two-way real-time audio transmission G.711a audio compression standard, adaptive code stream |
||
Audio | Audio Input | 1-way built-in -38dB microphone | |
Audio Output | Built-in 1 speaker 8 ohms 2W | ||
LED light | White light infrared day and night full color | 8pcs x 850 IR | 8pcs 850 white light |
Panorama Features | Multi-purpose | Day and night full color mode, infrared mode, white light mode | |
Panoramic display mode | flat direction, quad split screen, bullet camera ball camera linkage, dual video recording, dual screen switching | ||
power | power supply | DC DC12V2A | |
port | 55*35 round head external power supply | ||
Recording Management | recording method | Manual recording, alarm recording, al1-day recording | |
Video Storage | Cloud storage service; TF card support (up to 128G) | ||
module | WiFi8188 IEEE802.11b/g/n | ||
network | WIFI | 2.4GHZ single frequency 10Mbps/100Mbps | |
Platform Docking | P2P and forwarding support (use forwarding after purchasing cloud services, use P2P for regular users) | ||
Network Port Protocol | TCP/IP, UDP, P2P, DNS, DHCP, RTSP | ||
Alarm | Sound alarm | support | |
Smart Tracking | support | ||
Customized detection area | support | ||
Sound detection | support | ||
Motion Detection | support | ||
System Configuration | ios7.0٫Android3.0 verision or above it | ||
System Requirements | Platform Monitoring | Support, Android, Apple, tablet, PC client real-time view monitoring | |
Onvif protocol | not support onvif protocol | ||
others | Reset | PCB board key reset | |
Electricity supply for home use | home use AC110~220V | ||
Power consumption | LED white light 2.4W٫IR 2.4W | ||
Working humidity | ??-10?}~45?},Humidity less than 95%(no condensation) | ||
1pcs weight | 630g | ||

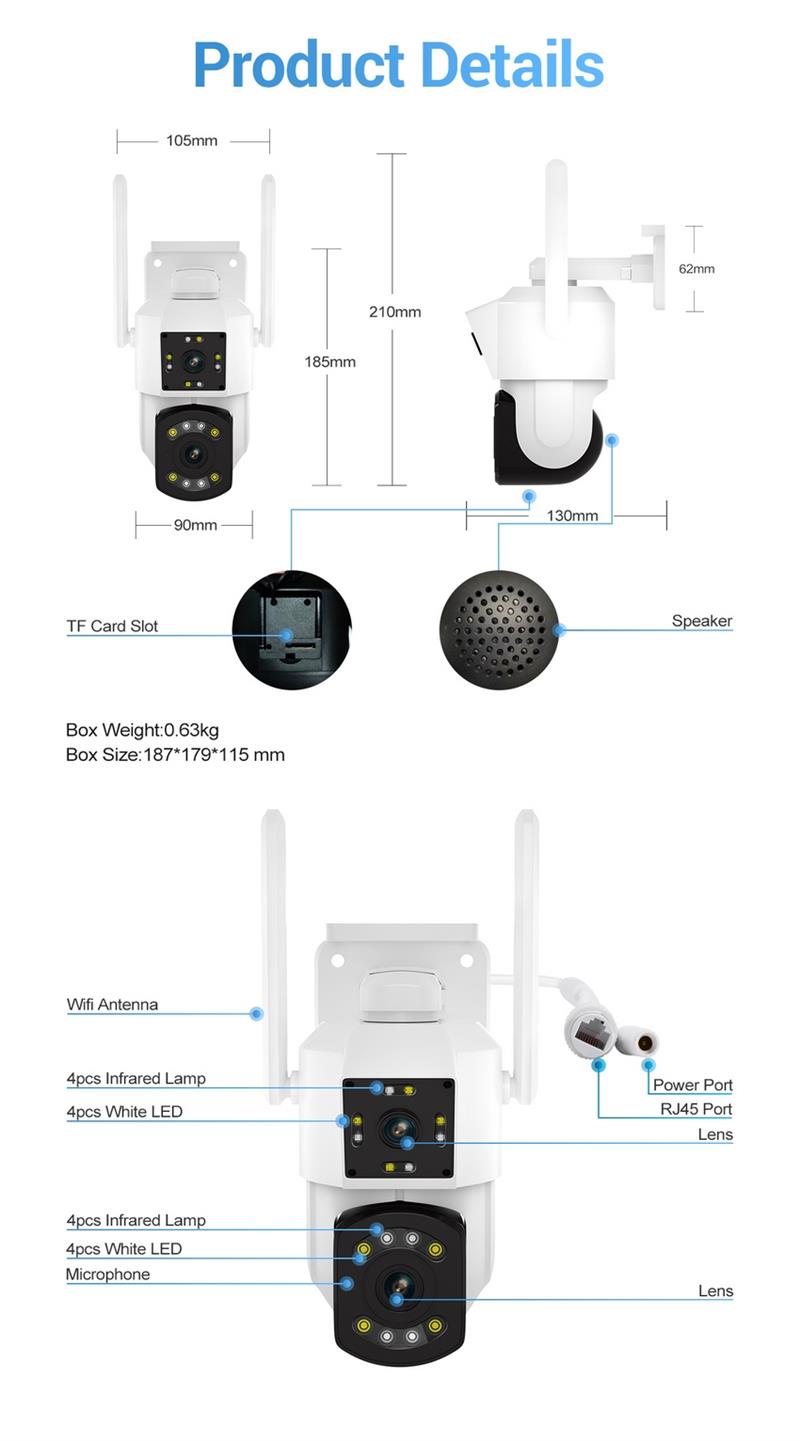

1pcs box size | 187*179*115MM | ||
qty/CTN | 40pcs/carton | ||
Carton size | 730*380*590MM | ||
Carton weight | 25.8/KG | ||
install application | Wall mounted/ceiling mounted |
Package Included:
1 x IP Camera 1 x Power Supply1 x Screw Package1 x Quick Start Guide
Additional information
Weight | 0.658 kg |
---|
