LST VR100 5.8Ghz 40CH Auto-Searching FPV Goggles 3 inch Built-in Battery for FPV Racing Drone Beginner

LST VR100 5.8Ghz 40CH Auto-Searching FPV Goggles 3 inch Built-in Battery for FPV Racing Drone Beginner
Support automatic frequency search
Video real-time return with zero delay
Built-in 3.7V 1200mA polymer battery
Built-in 40-frequency point high-sensitivity receiving module
Manual adjustment to match the degree of myopia (0ɳ-700ɳ)
Feature of product:
? New refraction optical path design, small size and light weight;
? Adjustable object distance, can match 0-700 degrees myopia;
? Low power consumption, working current 350mA;
? High-sensitivity dual-filter 5.8G receiving module, strong anti-interference and more stable signal;
? The module adopts general 40 channels, with automatic frequency search function;
? 3.0-inch 480*320 resolution high-brightness IPS screen;
? Built-in 3.7V/1200mAh high-capacity polymer lithium battery;
? Universal TYPE-C charging interface;
? Real-time video transmission, zero delay;
? Support Chinese and English bilingual dishes
? Support external video signal input;
? Support AV signal audio and video output and can be connected to an external DVR for recording;
Button function description:
? Button 1:Long press (3 seconds) to power on/off; short press to enter the menu and switch to the next menu each time you press it.
? Button 2:Short press to automatically search for signals (finally lock on the frequency point with the strongest signal).
? Button 3:Short press to switch frequency points (cycle switching 1-2-3-4-5-6-7-8 frequency points), in menu mode it is +.
? Button 4:Short press to switch frequency bands (cyclically switch A-B-E-F-R frequency bands). In menu mode, it is -.

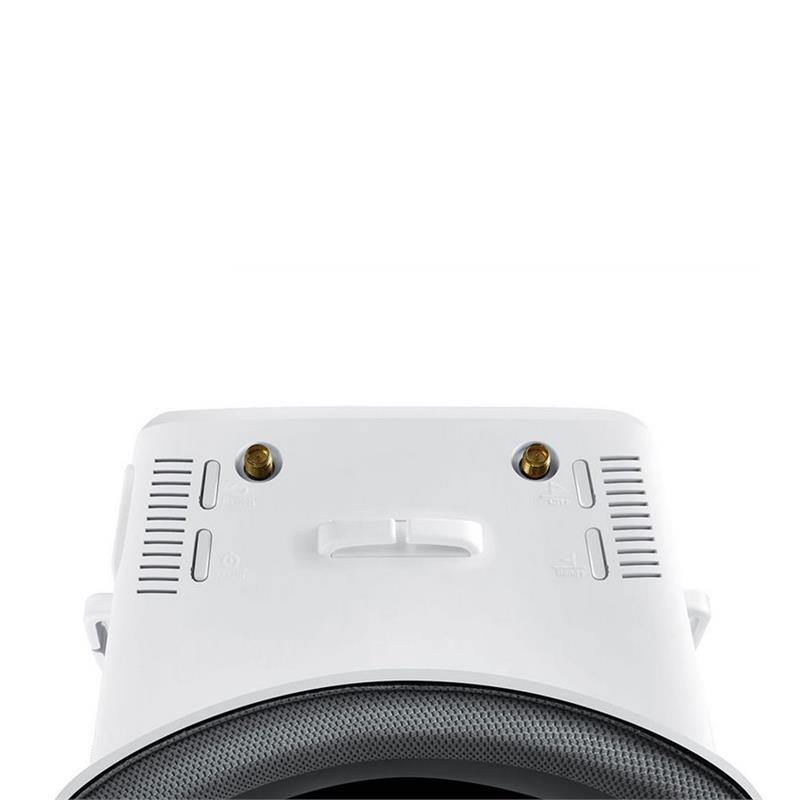

? Antenna head A:The inner hole antenna head is equipped with RP-SMA inner needle antenna.
? Antenna head B:The inner hole antenna head is equipped with RP-SMA inner needle antenna.
? Adjusting gear A:Turning the gear can push the position of the internal lens to move to adjust the object distance.
? Adjusting gear B:Synchronously used with adjusting gear A, the effect is the same..
? Charging port:TYPE-C interface supports DC5V charging.
? Earphone port:3.5mm AV jack is used to support external video input and local audio and video output.
11 Indicator lights:The red light is on when charging, and the red light is off and the green light is on after it is fully charged.
12 High frequency stickers.
13 Three-spoke elastic headband:adopt external buckle installation.
Safety instructions:
1. Please read the instruction manual thoroughly before operation to familiarize yourself with the product features!
2. Age recommendation:over 14 years old. Children under 14 years of age using any monitor at close range may cause eye development problems. This is not a children’s toy!
3. Please avoid using the product in a humid environment!
4. Please use a standard USB charger, the charging voltage can only be 5V.
5. AV output and Video input cannot work at the same time, and it is forbidden to insert external video in RF receiving mode.
6. Please do not use corrosive cleaning agents to wipe the product!
Package List:
1x 5.8G FPV Goggles
