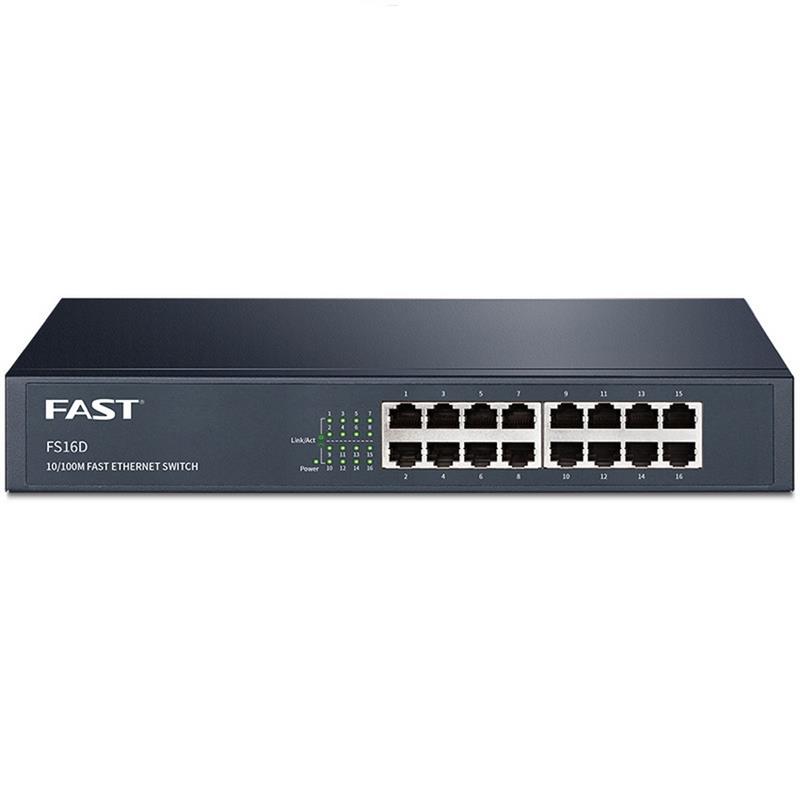

FAST 16 Port Unmanaged Ethernet Switch Network Switch Metal Ethernet Splitter Traffic Optimization Desktop Plug and Play
Size ConversionInches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Specifications:
Brand | FAST |
Model | FS14D |
Standard | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX |
Protocol | CSMA/CD |
Topology | Star topology |
Port | 16*10/100 RJ45 ??Auto MDI/MDIX?? |
Network media | 10Base-T:CAT3,4,5 shielded/ unshileded twisted pair, up to 100m 100Base-TX:CAT5 unshielded twisted pair, up to 100m |
Power | 100-240V~50/60Hz |
Filtering and forwarding rates | 10Mbps:14880pps 100Mbps:148800pps |
Dimension | 294mmx180mmx44mm |
Working environment | Working temperature:0??~40?? Storage temperature:-40??~70?? Working humidity:10%~90% RH Non-condensing Storage humidity:5%~90%RH No-condensing |
Features:
1. Compatible with IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX network standards.
2. 16 10 / 100M adaptive RJ45 ports.
3. Supports full-duplex / half-duplex operating mode Supports IEEE802.3x full-duplex flow control and back-pressure half-duplex flow control.
4. Dynamic LED indicator provides simple working status tips and troubleshooting.
5. Support for MAC address self-learning function.
6. Desktop steel shell structure design, can also be installed in a standard rack.
Package Included:
1 X FAST 16 Port Unmanaged Ethernet Switch Network Switch Metal Ethernet Splitter
Additional information
Weight | 1.832 kg |
---|
