Holybro Pixhawk RPi CM4 Baseboard and PM03D Power Module Combo Compatible with RC Quadcopter Pixhawk 6X 5X Flight Controller
Notice:NOT include Flight Controller Module & RPi CM4.
Introduction:
The Holybro Pixhawk RPi CM4 Baseboard can combine the Pixhawk FC module with the Raspberry Pi CM4,
companion computer (Purhcase seperately) in on compact form factor with all the connections you need for development.
The Holybro Pixhawk RPi CM4 Baseboard can combine the Pixhawk FC module with the Raspberry Pi CM4
companion computer (Purhcase seperately) in on compact form factor with all the connections you need for development.
It follows the Pixhawk Connector and Autopilot Bus Standard,
allow easy swap of FC Module with any FC that follows the Pixhawk Bus Standard.
The FC Module is internally connected to RPi CM4 through TELEM2, and can also be connected via ethernet with a external cable provided.
It is compatible with the Pixhawk 5X & 6X flight controller module.
Specification:
| Holybro Pixhawk RPi CM4 Baseboard | Notice:Only baseboard like photo showed. NOT include Flight Controller Module & RPi CM4. |

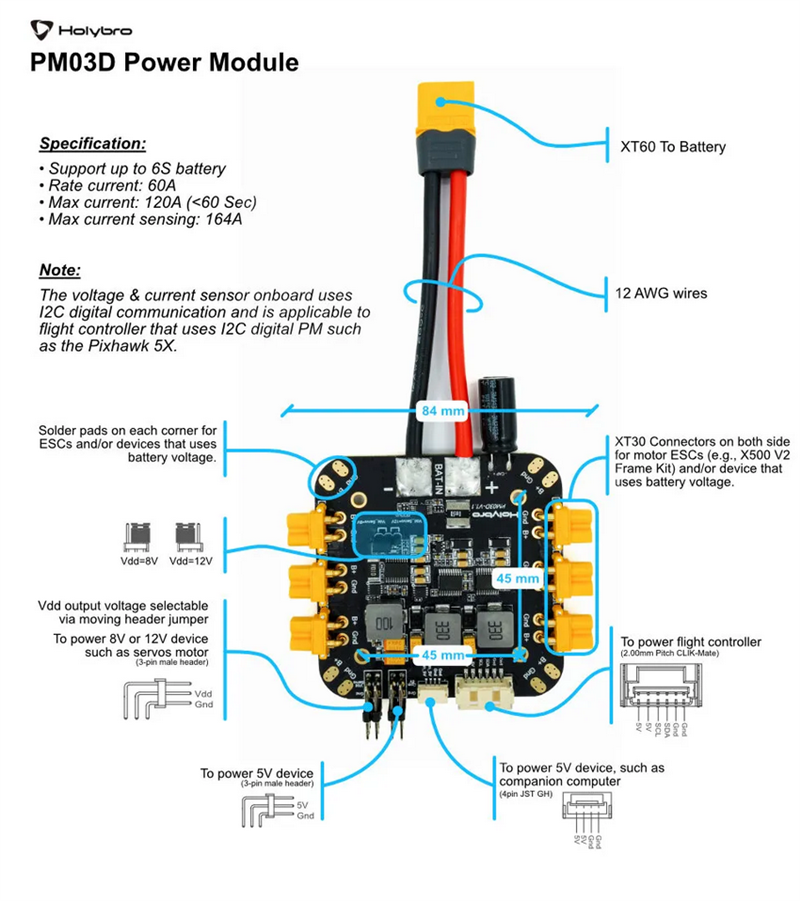

| PM03D Power Module | Maximum input voltage:6S battery PCB Cont. Current Rating:90A PCB Burst Current Rating:140A (<60 Sec) Max current sensing:164A Connections XT-60 for battery XT-30 for motor & peripheral device (battery voltage) Solder pads in each corner (battery voltage) CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC) JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header) 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin) 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A) Dimension:84*78*12mm (excluding wires) Mounting:45*45mm Weight:59g |
Additional information
| Weight | 0.36 kg |
|---|
