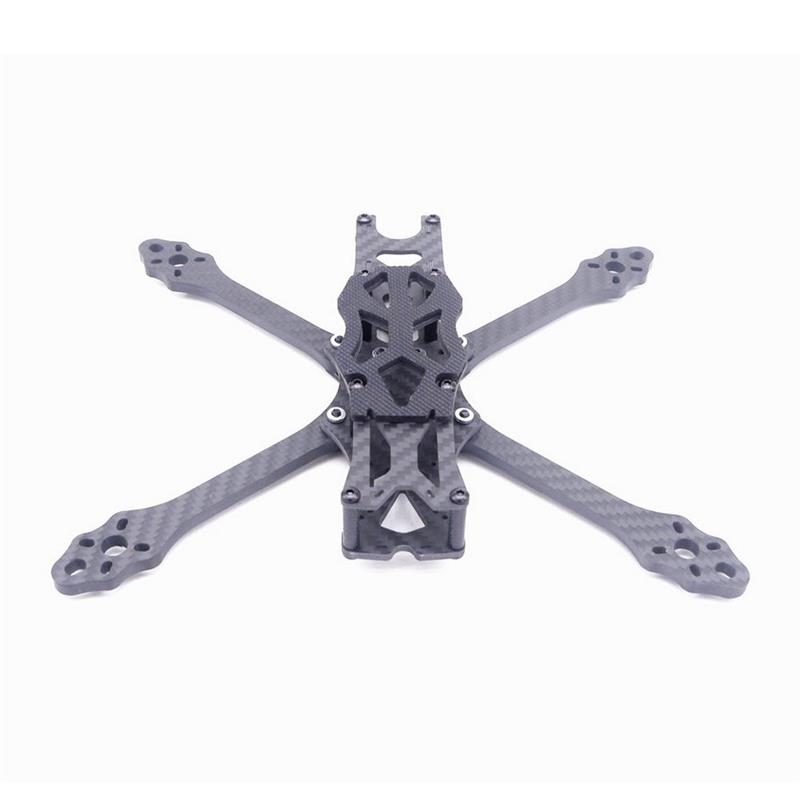

Teosaw Senna 5 220mm Wheelbase 5mm Arm Thickness X Type 5 Inch Frame Kit Support DJI O3 Air Unit Vista
Notice:Comes unassembled. Need build by yourself.
Specification:
Model:Senna 5
Item Name:220mm Wheelbase 5 Inch Frame Kit
Wheelbase:220mm
Arm Plate Thickness:5.0mm
Bottom plate Thickness:3mm
Upper Plate Thickness:2mm
Side Plate Thickness:2mm
Center plate Thickness:3.0mm
Structure:X-type
Aluminum column height:25mm
Internal height:about 17mm
Weight:113g
Recommend Parts:( NOT Included)
Propeller:50xx 5 Inch Prop
Flight Contorller:30.5×30.5mm ( M3) Hole
Brushless Motor:Support 16x16mm M3 and 19x19mm M3 Hole Motor (2204/2205 2207/2306/2405/2307/2308/2506)
Tail VTX Position:20x20mm M2 Hole, 25.5×25.5mm M2 Hole
Camera Mounting Width:20mm, M2
VTX & Camera:DJI O3 Air Unit / DJI Air Unit / Vista HD Digital System Or Analog VTX
The following Parts are Compatible ( NOT Included)
FC ESC:30.5×30.5mm HGLRC Zeus F748 Stack F7 OSD 3-6S FC w/ 5V 9V BEC & 48A BL_S 4in1 ESC Stack
30.5*30.5mm HAKRC F722 DJI Stack F7 3-6S FC & 45A 4in1 Brushless ESC
Brushless Motor:iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S Motor
iFlight XING2 2306 1755KV 6S 2555KV 4S Brushless Motor
Propeller:Gemfan Windancer 5043 5×4.3 5 Inch 3-Blade Propeller
Lipo Battery:Gaoneng GNB 22.2V 1250mAh 130C/260C 6S Lipo Battery XT60
Package Included:
1x Senna 5 Frame Kit
Additional information
Weight | 0.139 kg |
---|
