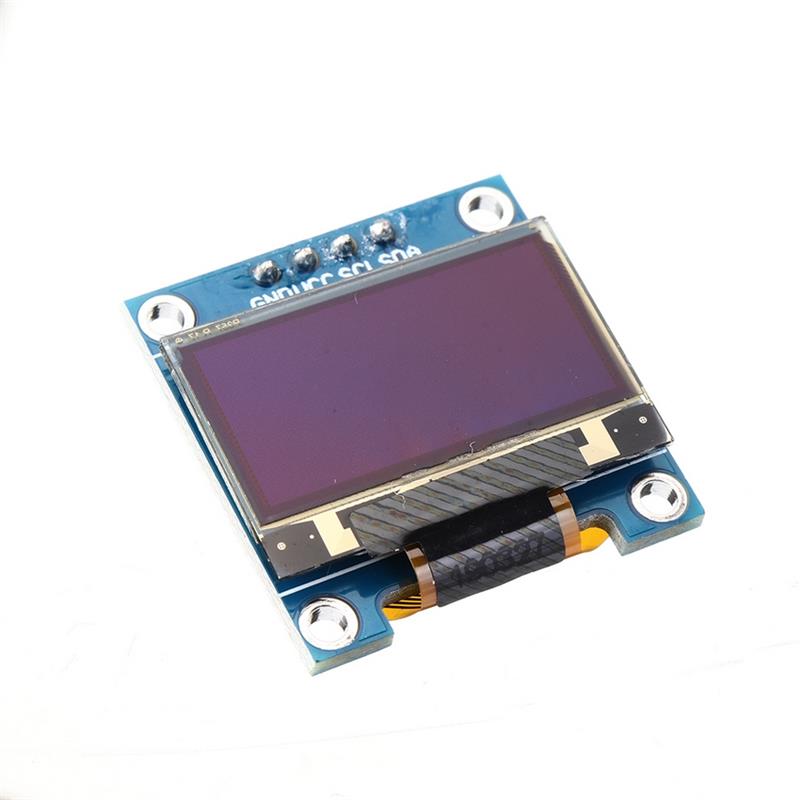

Geekcreit 0.96 Inch OLED I2C IIC Communication Display 128*64 LCD Module Geekcreit for Arduiino – products that work with official Arduiino boards
>>>More details:Click here to open<<<
Pin definition:
VCC:3.3-5V
GND:Ground
SCL:Serial Clock
SDA:Serial Data
Feature:Size:0.96 inch
Resolution:128*64
Color:white, blue (optional)
Viewing angle:>160?F
Support platform:51 series, MSP430 series, STM32/2, etc.
Ultra low power consumption:0.04W during normal operation
Wide voltage support:DC 3.3V-5V
Working temperature:-30 ?F C ~ 80 ?F C
Driver chip:SSD1306
Communication method:IIC, only 2 I/O ports
Backlight:OLED self-illumination, no backlight required
Package includes:
1 x OLED module
Additional information
| Weight | 0.1 kg |
|---|---|
| Color: No selection | Blue, White |
