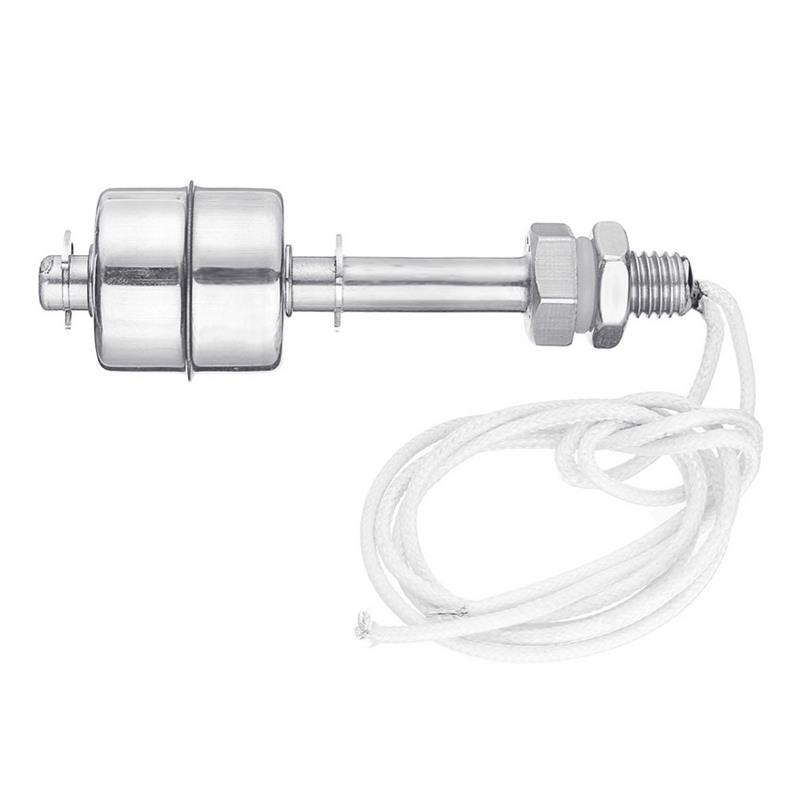

Stainless Steel Water Flow Tank Vertical Float Switch Liquid Sensor Level Controller

Stainless Steel Water Flow Tank Vertical Float Switch Liquid Sensor Level Controller
Specifications:
Material:Stainless Steel
Wire specification:White braided silicone high temperature wire
Color:Silver
Length Optional:45mm, 75mm, 100mm, 150mm, 200mm
Withstand Voltage:240V AC / 220V DC
Output:10W / 50W
Maximum Passing Current:1A
Switch Work:Can be reversed
Operating Pressure:10kg/cm
Operating Temperature:-10~120?}
Suitable for Specific Gravity:0.75
Hole Size:10mm
Installation Method:Vertical Installation
Features:
Float switch is used in high-low level alarm triggers, overflow or spill prevention, and pump protection.
Vertical mounted liquid level sensor. It can be easily installed through a simple drilled hole inside of the container.
This float switch is a simple structure, easy installation liquid level controller.
Does not have a complex circuit and will not be disturbed.
Light weight and simple working principle, high reliability.
Package Included:
1 x Float Switch (not included other decorations)
