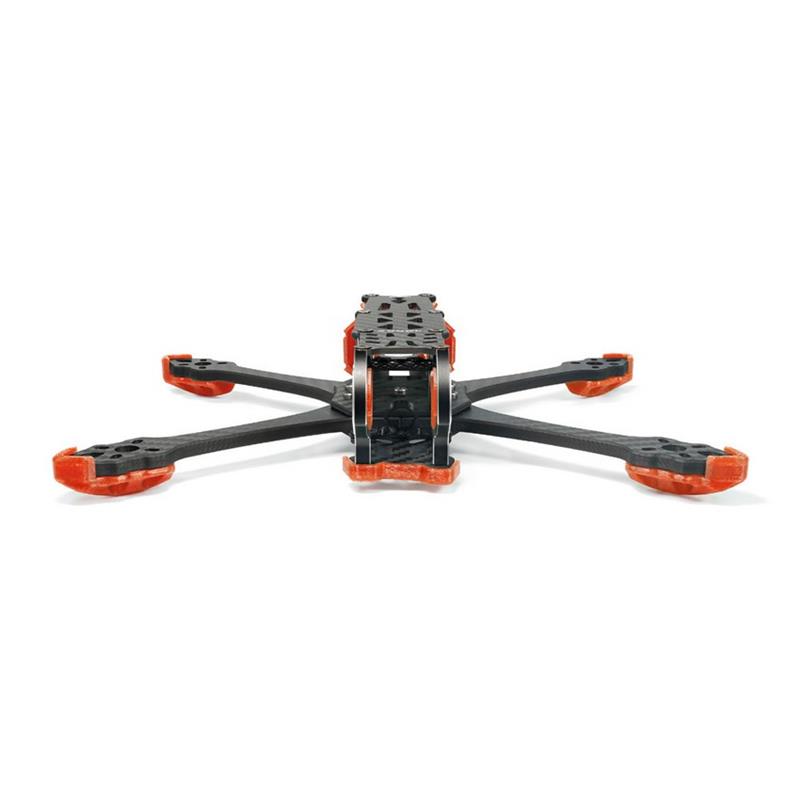

Geprc MK5X 225mm Wheelbase 5mm Arm Thickness 5 Inch Squashed X Frame Kit Support DJI O3 Air Unit for Freestyle RC Drone FPV Racing

Geprc MK5X 225mm Wheelbase 5mm Arm Thickness 5 Inch Squashed X Frame Kit Support DJI O3 Air Unit for Freestyle RC Drone FPV Racing
Features
1. Upgraded lens aluminum alloy side plate, durable and more visual impact
2. Developed specifically for freestyle with squashed X arm design.
3. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment
4. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter
5. Two kinds of 3D printing camera mounts are designed, which is compatible with GoPro 8 ( Naked), Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear
6. Add coral orange and emerald green colors to add more colors to your flight
7. It is optimized for freestyle, with a smoother flight experience
Specification:
Brand:Geprc
Model:Mark5X ( X Type, Pro Version support DJI O3 Air Unit)
Wheelbase:225mm
Top Plate Thickness:2.5mm
Bottom Plate Thickness:2.5mm
Arm Plate Thickness:5mm
FC mounting holes:30.5mm x 30.5mm
Camera installation space:20mm
Motor Mounting Hole:16x16mm, M3
Suitable propeller size:5 inch propeller
Dimension:214mm x 168mm x 42mm
Pro Version Weight:156.1g
Application:Original Replace Frame Kit for Geprc Mark5 HD ( DJI O3 Air Unit Version) FPV Racing Drone
Recommend Parts:( NOT Included)
FC ESC:30.5×30.5mm Holybro Kakute H7 V2 FC and Tekko32 F4 4in1 50A / Tekko32 Metal 4in1 65A ESC Stack
Brushless Motor:iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S Motor
Propeller:HQProp DP5X5X3V1S Durable 5050 5X5 5 Inch 3-Blade Propeller
VTX & Camera:DJI O3 Air Unit
Pacakge Included:
1 x MARK5X Frame Kit
