Mustool10.1 inch LCD HD Video Microscope with 150X C Mount Lens Electronic Microscope Camera with Metal Stand Professional repair Tools
Mustool -1090 10.1 inch LCD HD Video Microscope with 150X C Mount Lens Electronic Microscope Camera with Metal Stand Professional repair Tools
The Mustool -1090 is a multifunctional digital microscope,individually designed and developed. It realizes Full HD, high object distance, multifunction and multi-output at the same time. With help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. And its appearance design combines more ergonomic consideration, provides users with better experience. We sincerely wish this product can release your eyes and improve your work quality.
Feature:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using high quality materials, strong and durable, has a long service life.
4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
8X-150X Zoom C-mount Lens:
Working distance:50mm-350mm
Field of view:3.1mm-66mm
zoom c-mount Lens
zoom ratios:15:1
Magnification Power by 0.11X – 2X(about 8X -150X on the Monitor)
Size:100mm(L) * 28mm(DIA)
Size:35x19x19
Weigh 2.5kg

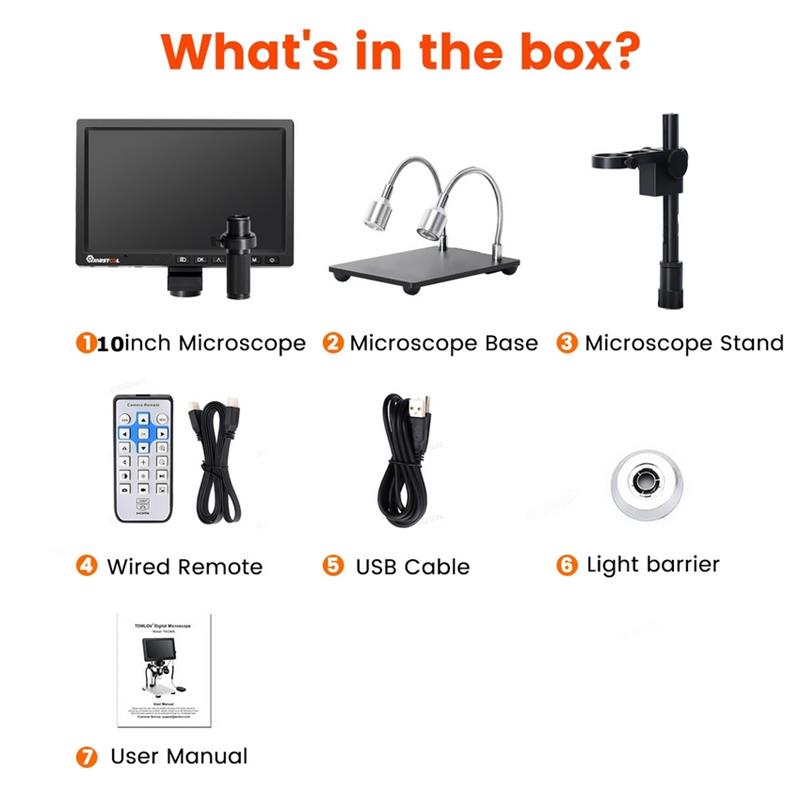

Package included:
1 X 10.1-inch HD Microscope camera
1 X 150X C-MOUNT Lens
1 X Power supply
1 X USB cable
1 X Adjustable bracket
1 X Remote control
1 X HDMI cable
| Sensor | 16 Megapixel IMX sensor |
| Pixel Size | 2.0 ?? 2.0?Sm |
| Sensor Size | 1/2.8 inch |
| Video Output Interface | HDMI / USB (HD Interface) |
| Resolution | 1920×1080@60FPS??HDMI/a> |
| Monitor size | 10.1 inches |
| USB Output | 1920×1080@30FPS(USB) |
| Video Ratio | Support 16:9, 4:3 Mode |
| Picture Resolution | 4608 x 3456 |
| Frame Rate | 30@FPS |
| Color | R/G/B support manual adjustment |
| Cross line | 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale |
| Zoom | 7X digital zoom |
| Magnifier Function | Support magnifying in same screen |
| Sensitivity Level | Middle(can be used with extra light source) |
| Interface for Lens | Standard C/CS Interface |
| Dynamic Range | 40dB |
| PC Systems | Support Windows XP/7/8/10, with measurement software(gift) |
| Picture Format | JPEG |
| Language | CN, EN, JP, FR, DE, RU, IT, KR, TUR |
| Working Voltage | 12V/1A |
| Spectral Response (Wavelength) | 400nm~700nm (Strong) |
| White Balance | Manual/Auto |
| SNR | 45dB |
| Image | Support Up/Down, Right/Left |
| Black & White Mode | Support |
| Storage | TF Card, Maximum support 256GB |
| Working Temperature | -40?FC~70?FC |
Additional information
| Weight | 1.997 kg |
|---|
