MUSTOOL MT110 Auto Measure Multimeter True RMS Digital 6000 Counts Display Multimeter+High Voltage DC1000V Protection+Data Hold +Backlight+NCV/Super Bright Flashlight Function
Descriptions:
Auto Recognition According to Measurement Requirements
High Voltage DC 1000V Protection
Auto Measure Digital Multimeter
NCV/Super Bright Flashlight Function
| Technical specification | ||
| Basic function Measuring range Accuracy | ||
| DC Voltage |
6V/60V/600V/800V | (0.5%+4) |
| AC Voltage |
6V/60V/600V | (0.8%+3) |
| DC Current |
6A/10A | (0.8%+8) |
| AC Current |
6A/10A | (1.0%+8) |
| Resistance |
600??/6k??/60k??/600k??/6M??/60M?? | (0.8%+5) |
| Capacitance |
60nF/600nF/6?SF/60?SF/600?SF/6mF/60mF | (2.5%+60) |
| 30mF | (5.0%+10) | |
| 30mF(< |
(10%+5) | |
| Special function | ||
| True RMS | /span> | |
| NCV | AC non_contact electric field measurement | /span> |
| Flashlight function | /span> | |
| Buzzer | (0.1??-50??) | /span> |
| Automatic | Auto recognition According to Measurement requirements | /span> |
| Continuity Buzzer | 40Hz-1kHz(N only sine wave& triangular wave, other >200Hz waveforms are for reference only | /span> |
| Continuity Test | About 0.6V | /span> |
| Data Hold | HOLD | /span> |
| LCD Backlight | /span> | |
| Low battery tips | /span> | |
| Auto shutdown | About 15 minutes | /span> |
| Display | 6000 Counts | /span> |
Basic specification:
| Environment | 18e > |
| Battery | AAA 1.5V*2(not included) |
| LCD Size | 50 x 33(mm) |
| Body Color | Black |
| Body weight | 250g |
| Dimensions | 146 x 69 x 34(mm) |
| Standard Accessories | Manual, certificate,box |
| Package | Color box |
| Package size | 165 x 103 x 34(mm) |
Package Includes:
1 x MT110 Multimeter(Not included battery)
1 x English User Manual
1 x Test leads

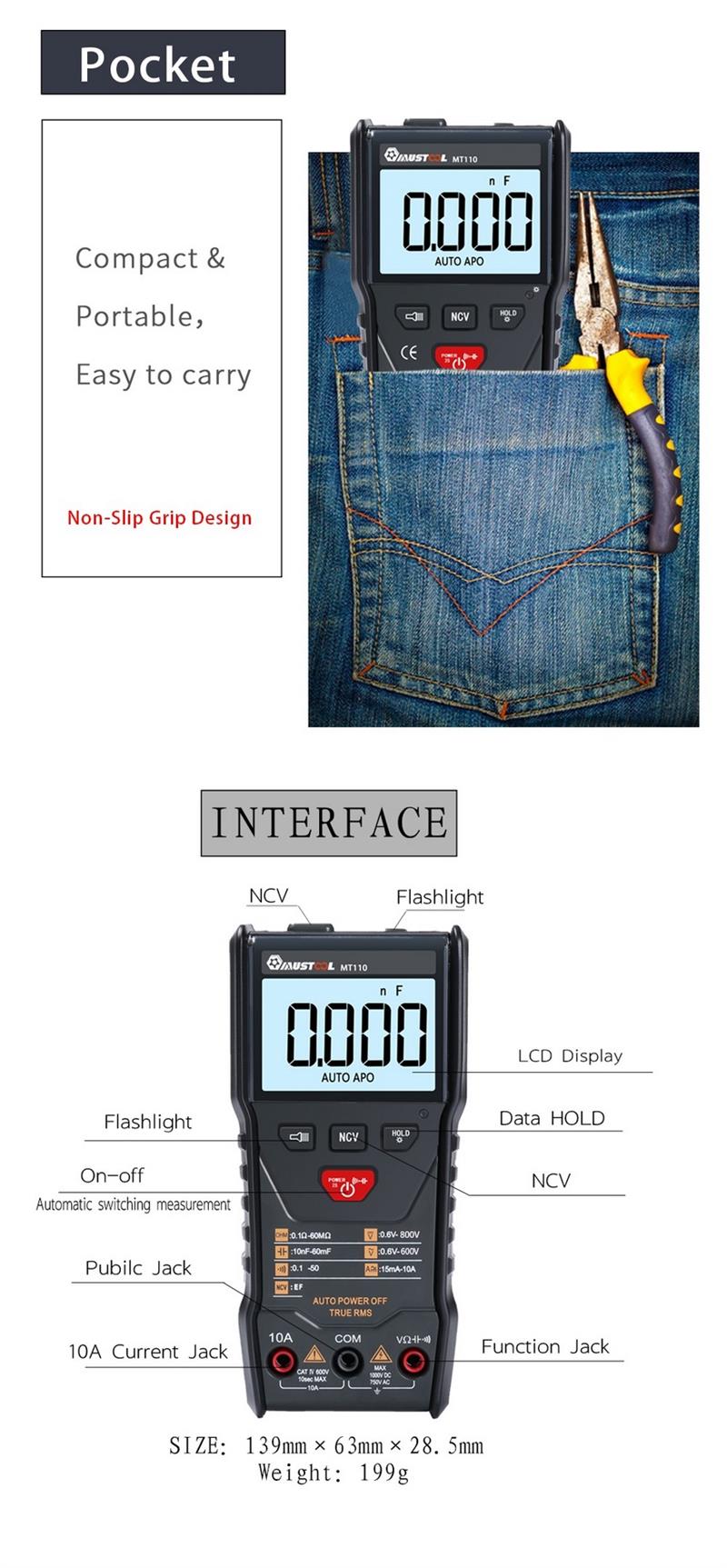

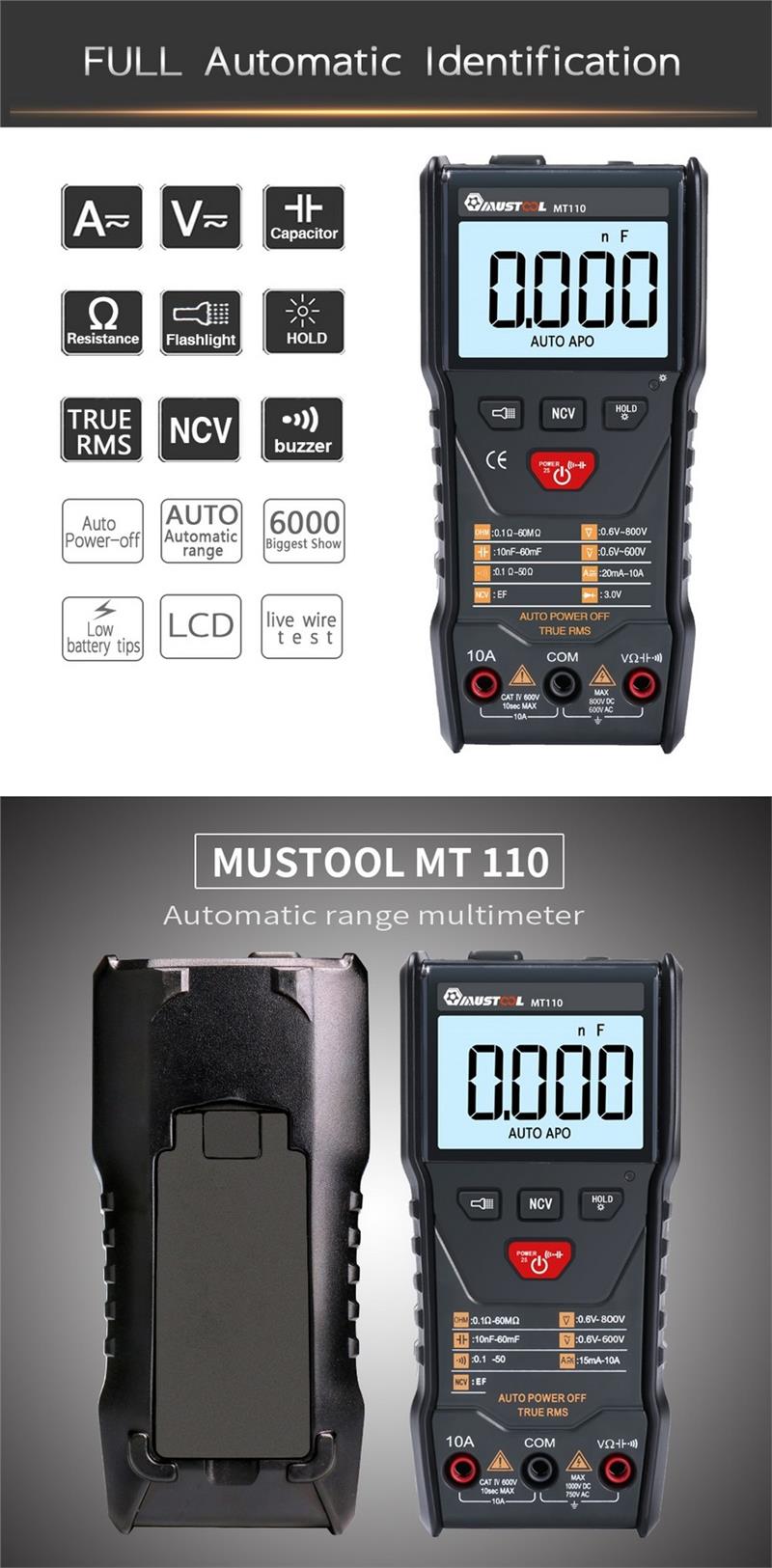

Details Pictures:
