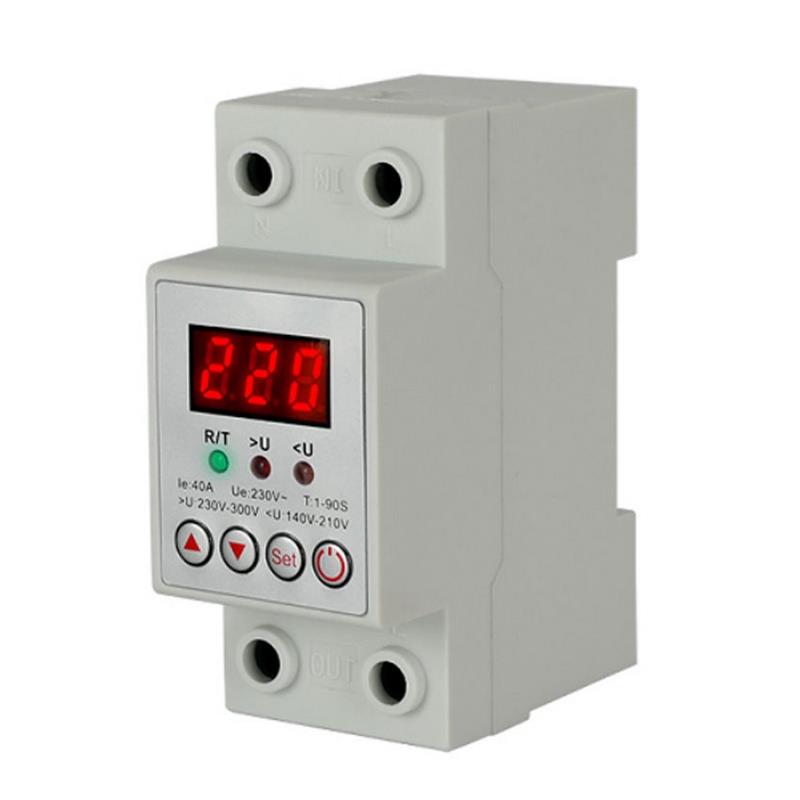

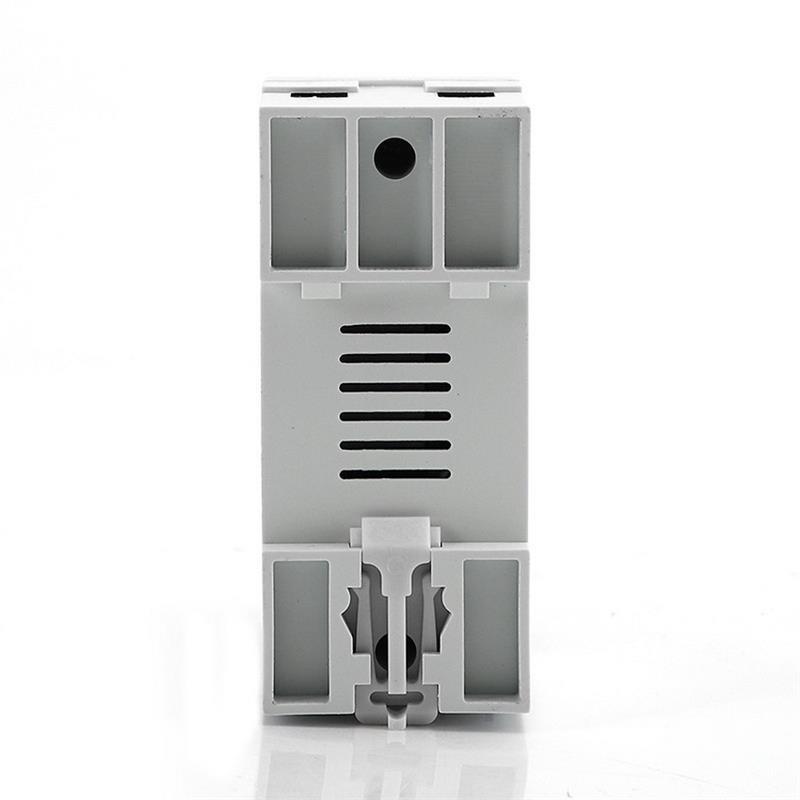

1-40A High-precision Intelligent Over Under Voltage Over-current Protector
Specifications:
Power supply:230VAC 50/60Hz
Max.Loading power:1~40A Adjustable(default:40A)
Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V–295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
Under-voltage protection value range:140V–210V –OFF(default:170V)
Under-voltage recovery voltage range:145V–215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
Over-current adjustment range:1-40A (default:20A)
Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
Power-on delay time:1s~500s(default:10s)
Power consumption:<2W
Electric machinery life:100,000 times
Functions:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration:Voltage +-10% adjustable
8. Restore factory settings:press the down button for more than 12s
9. Fault inquiry:Press the UP button from more than 12S
Package Include:
1??Over Under Voltage Over-current Protector
Additional information
Weight | 0.348 kg |
---|
