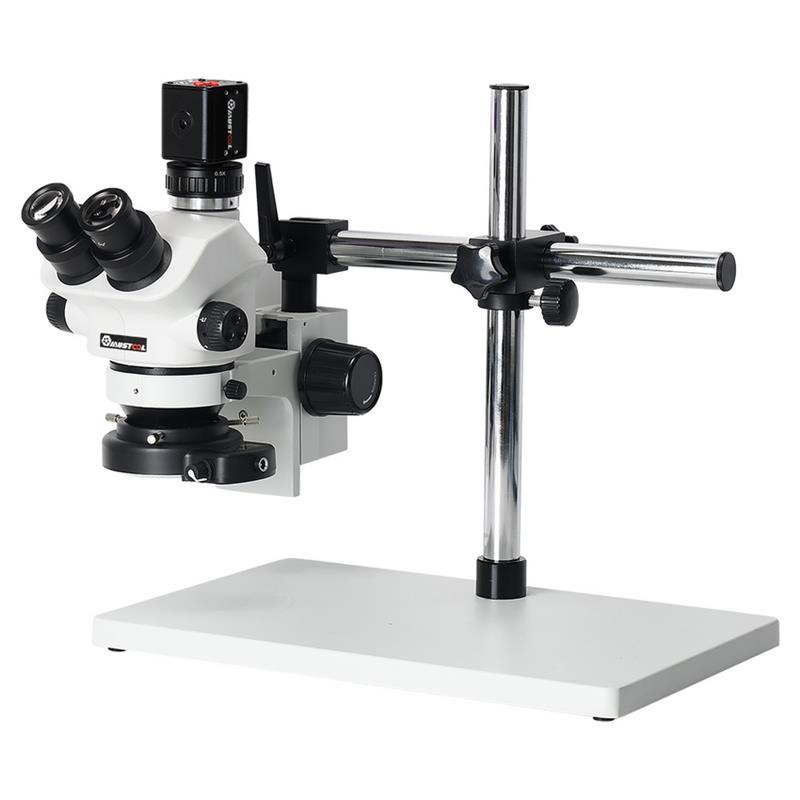

MUSTOOL 24MP 4K 1080P HDMI Video Camera Simul-Focal 3.5X-100X Continuous Zoom Stereo Trinocular Microscope CTV Adapter Barlow Lens
Feature:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using high quality materials, strong and durable, has a long service life.
4. HD camera with 24 megapixel CMOS sensor 1/2.9inch, with HDMI port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specifications:
24MP HDMI Camera
Item Type:Microscope Camera
Condition:100% Brand New
Item Type:Microscope Camera
Model:High Definition Multimedia Interface Output Camera
Image Format:jpg
Image Resolution:24MPk/span>
Video Format:MP4 (for Memory Card)
Video Recorder:1080P at 60FPS
High Definition Multimedia Interface Video Resolution:1920×1080
White Balance:Automatic / Manual
Light:Automatic / Manual
Exposure:Automatic / Manual, Value Adjustable
Direction:Left / Right, Up / Down
Freeze:Support
OSD:English / Chinese / French / Spanish / Japanese / German
Lines:Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor:24MP CMOS Sensor 1/2.9 Inches
Effective Pixels:24MP
Pexil size:2.85?Sm ?? 2.85?Sm
Frame Rate:60fps
Definition:Full High Definition
Housing:Metal
Lens:C/CS
Video Format:MOV
Digital Zoom:Support
Brightness Control:Automatic / Manual
Color:R / G / B Adjustable
Film and Records:Support
Cross Cursor:Support multi-color, adjustable size
Horizontal and Vertical Lines:
Support multi-color, 5 horizontal / vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface:up to 64G (Not Included)
High Definition Multimedia Interface:Standard High Definition Multimedia Interface Output (Type A)
Infrared Remote Control:Support
Voltage Input:DC 12V
Power Supply Voltage:Input:AC100-240V
Output:DC12V
Power Consumption:Maximum 0.15W 12V, 0.12A
Lens Interface:C/CS port
Remote Control Battery:1 x CR2025 button battery
Trinocular Stereo
Head:45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece:30mm super widefield high-eyepoint WF10X/22
Objective:0.7-5X
Zoom Range:6.5:1
Trinocular Port:23mm photo port
Interpupillary Distance:2-1/8′ to 3′(54-76mm)
Field of View:1-1/4′ (33mm)
Working Distance:7X-50X (100mm) Use 0.5x objective lens 3.5X-25X(200mm)
Use 2x objective lens 14X-100X (50mm)
Head Mounting Size:3′ (76mm) diameter
Accessory Mounting Size:1-7/8′ (48mm female thread) diameter
7X to 50X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 22mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard
Package Size:40*33*24cm
Stand Size:38*26*30cm (LxWxH)
Package Weight:6.8Kg
144 bright LEDs
Variable lighting direction
Variable power control
Strong and concentrated shadowless lighting
100,000 hours of life
Power Input:100-240V, 50-60HZ, automatic switching
The Inner Diameter of The ring Light:Approx. 27mm / 1.1in
Overall Outer Diameter:Approx. 45mm / 1.8in
Working Distance:Approx.27 ~ 120mm / 1.1 ~ 4.7in
Package incluede:
1 x 24MP Microscope Camera
1 x HDMI Cable
1 x IR Remote control
1 x Power Adapter
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X22MM Eyepieces
1 x 144-LED Ring Light
1 x Microscope Bracket
1 x 0.5X Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Paper Manual
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 180 mm)
1 x 2X Microscope Auxiliary Objective Lens(Working Distance 50 mm)
1 x 1X Objective Lens
Additional information
| Weight | 6.325 kg |
|---|
