Code:BG81f285UNI-T UTi85A -15~550 Digital Industry Infrared Thermal Imager Real-time Imaging Transmission Thermal Imager Camera

Code:BG81f285UNI-T UTi85A -15~550 Digital Industry Infrared Thermal Imager Real-time Imaging Transmission Thermal Imager Camera
?Code:BG81f285 216.99
Description:

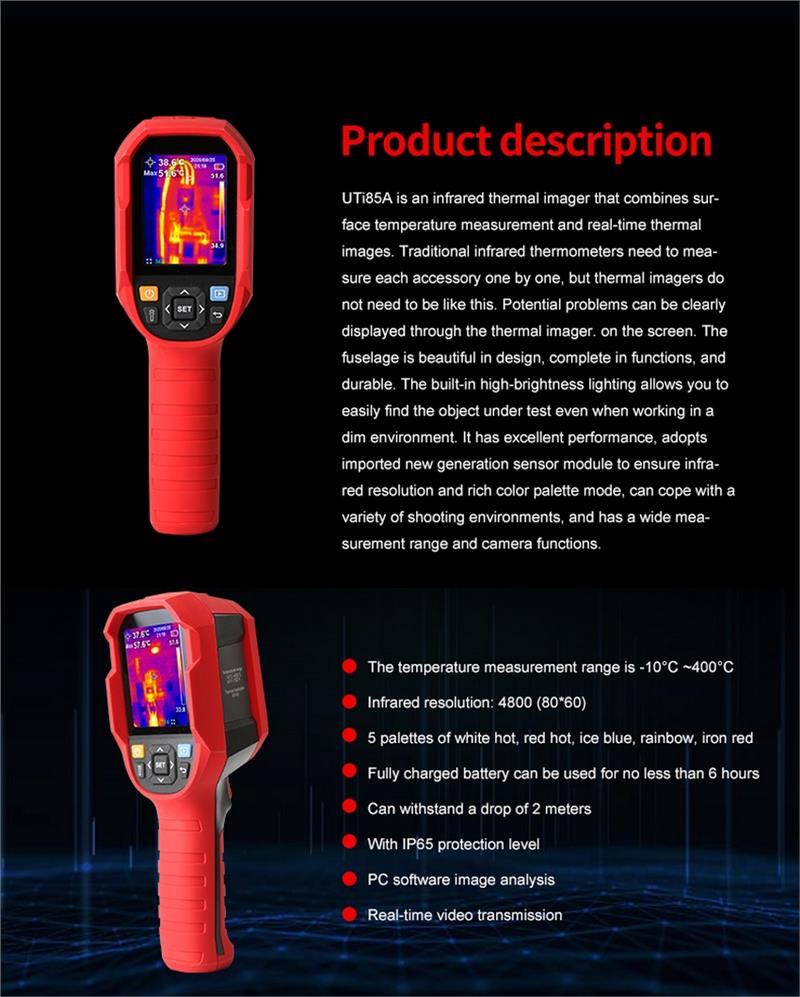

UTi85A is a Versatile, rugged, and ergonomically designed thermal imager with great performance. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes. It also has buzzer alarm, and real-time image transmission, which is convenient for various applications.
Features:

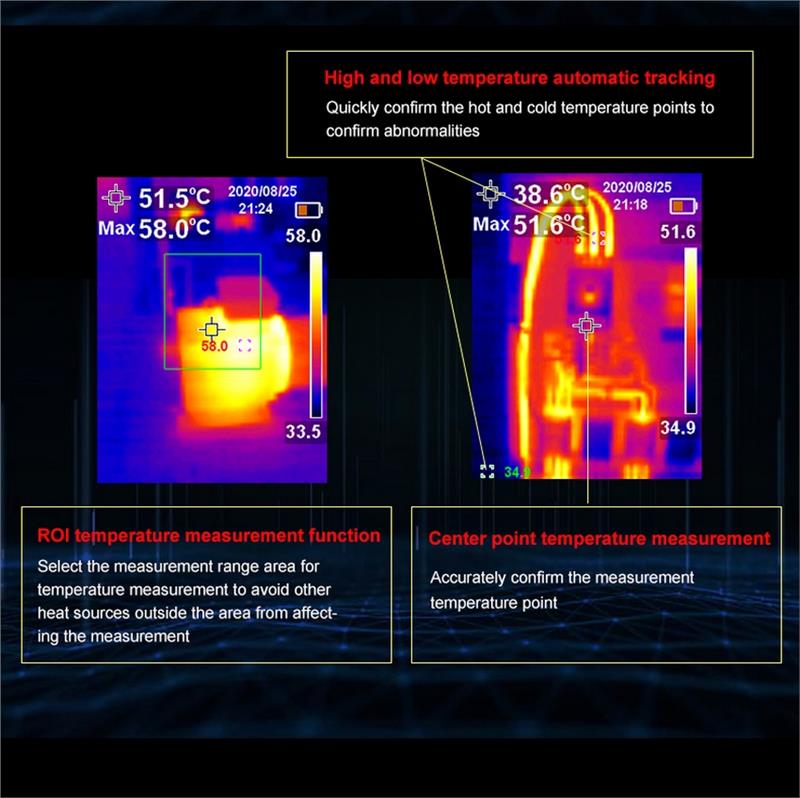

Temperature Measurement Display:ROI, center point temperature, high/low temperature tracking (default).
5 Color Palettes Selectable:including iron red, rainbow, white hot, red hot, ice blue, 5 kinds of color palettes for you to choose from.
USB Communication and Image Projection:after connecting to a PC, you can browse pictures and analyze data under the USB Mode, or switching to the USB Camera Mode, it allows you to realize real-time image projection.
Supports Image Storage:comes with a 16G micro TF storage card for saving the captured images.
HD TFT Screen:2.8-inch TFT screen with 80 * 60 infrared resolution, the image displayed is clearly for you to observe the detail of the image.
Tripod Mounting:1/4′ tripod mounting hole at the bottom of the handle, you can mount the thermal imager on the tripod to ensure the stability during measurement.
LED Light:LED flashlight for auxiliary lighting, besides, the light will flash once the measured temperature exceeds the set temperature range.
Built-in Li-ion Battery:3.6V 5000mAh large capacity rechargeable battery provides up to 6 hours of battery life after full charged. Recharging or connect with PC via the included Type-C cable.
Multifunctions & Practical:-10~40014~752 temperature measurement range, unit switchable, buzzer alarm, auto capture of Hi/Low temperature, high/low temperature alert, display brightness adjustable, IP65 protective and 2m drop proof, etc.
Specifications:
Material:ABS
Sensor:UFPA
Display:2.8′ TFT LCD
Display Resolution:320 * 240 pixels
Temperature Range:-10~400/ 14~752/span>
Measurement Accuracy:??2or ??2%
Resolution:0.1/ 0.2/span>
Response Time:00ms
Thermal Resolution:4,800 pixels (80 * 60)
Pixel Size:17?Sm
Color Palette:Iron red, rainbow, white hot, red hot, ice blue
Infrared Spectral Bandwidth:8~14?Sm
Field of View (FOV):51?F(H) * 38?F(V)
Spatial Resolution (IFOV):11.1mrad
Thermal Sensitivity(NETD):50mK
Frame Rate:Hz
Image Format:BMP
Buzzer Alarm:Yes
PC Software:Yes
Real-time Image Transmission:Yes
Data Transmission:Type-C USB interface
Auto Power-off(Selectable):5min, 10min, 30min(default), off
Battery:1 * 26650 3.6V 5000mAh rechargeable Li-ion battery
Battery Life:hours
Charging Time:4 hours
Charging Voltage/Current:5V/2A
Image Storage:Micro storage card (16G)
Language Selection:Chinese, English, AM Spanish, EU Spanish, German, Italian, French
Storage Environment:-20~60(-4~140, <85%RH (non-condensing)
Operating Environment:0~50(32~122, <85%RH (non-condensing)
Operating Altitude:,000m
IP Rating:IP65
Drop Test:2 meters
Item Size:236 x 75.5 x 76mm / 9.29 x 2.97 x 2.99in
Package Size:28 x 16.2 x 11.8cm / 11.02 x 6.38 x 4.65in
Package Includes:
1 x Thermal Imager
1 x 16GB Data Storage Card
1 x Type-C Cable
1 x English Manual
