Beitian BE-357 GPS Module TTL Level GLONASS For RC Airplane
Specifications:
Brand Name:Beitian
Item Name:BE-357
Chip:M10050
Frequency:GPS L1 C/A, QZSS L1S (SLAS), GLONASS L10F, BDS B1I, Galileo E1B/C, SBAS EGNOS, GAGAN, MSAS and WAAS
Working Mode:GPS, GLONASS, BDS, GALILEO, SBAS and QZSS.
* By default, GPS+GALILEO+SBAS+QZSS joint positioning is used. If you have other needs, you can change the mode by command.
* It is recommended to use:GPS+GLONASS+SBAS+QZSS+GALILEO or GPS+BDS+SBAS+QZSS+GALILEO joint positioning mode.
Tracking Sensitivity:-167dBm
Reacquisition Sensitivity:-160dBm
Cold Start Sensitivity:-148dBm
Hot Start Sensitivity:-160dBm
Position Horizontal Accuracy:2 m CEP
Speed Accuracy:0.05m/s
Dynamic Heading Accuracy:0.3 deg
1PPS Time Accuracy:RMS 30ns, 99% 60ns
Cold Start Acquisition Time:29s
Hot Start Acquisition Time:1s
Auxiliary Start Acquisition Time:1s
Data Output Support Rate:4800bps to 921600bps, Default 38400bps
Data Output Level:TTL Level
Data Output Protocol:NMEA, UBX
Data Output NMEA Message:RMC, VTG, GGA, GSA, GSV, GLL
Data Output Update Rate:0.25Hz-18Hz, Default 1Hz
Data Output Second Pulse:0.25Hz-10MHz can be configured, the default period is 1s, and the high level lasts for 100ms
Operational Altitude Limits:80000m
Operational Speed Limits:<500m/s
Operational Acceleration Limits:<4g
Power Consumption of VCC:DC Voltage 3.6V-5.5V, Typical:5.0V
Power Consumption of Current:Capture 50mA/5.0V
Dimension:35.0mm*27.0mm*8.5mm
Weight:13.9g
Connector:1.25mm 6pins connector
Operating Temp:-40 ɳC ~ +85ɳC
Storage Temp:-40ɳC ~ +105ɳC
TX LED:Blue. The data output, TX LED flashing.
PPS LED:Red. PPS LED not bright when GPS not fixed, flashing when fixed.

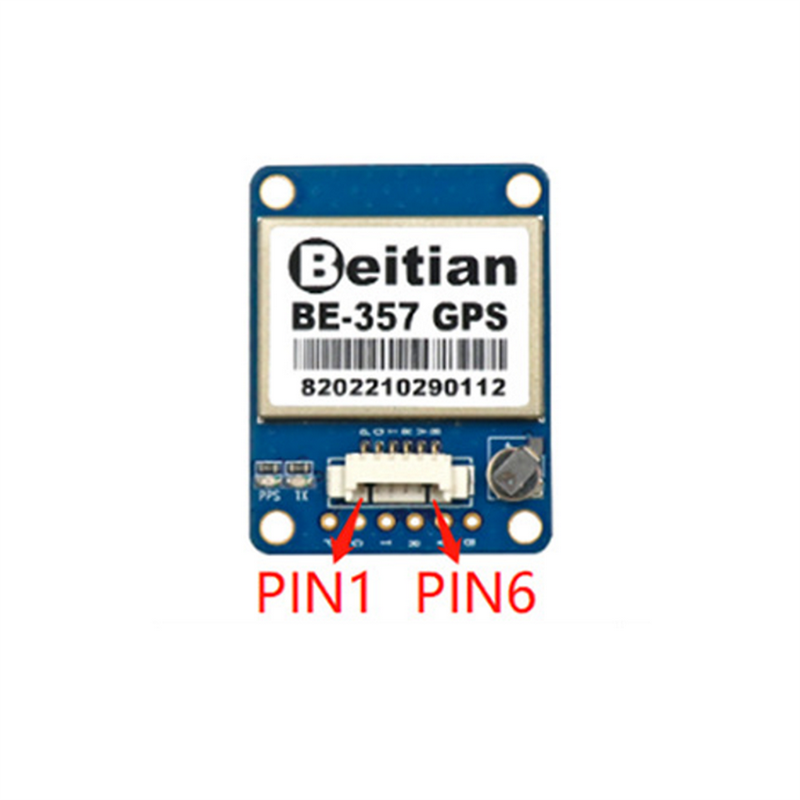

Pin Description:
| PIN | PIN Name | I/O | Description | Characteristic |
| 1 | IPPS | O | IPPS, low level before positioning, second pulse output with period of 1s and high level of 100ms after positioning | The pulse can be used for synchronization or timing, please leave it open if not used |
| 2 | GND | G | Ground | Ground |
| 3 | TX | O | UART communication interface, TTL level | GPS data output pin |
| 4 | RX | I | UART communication interface, TTL level | GPS data input pin |
| 5 | VCC | I | Main power supply, DC input | DC 3.6V – 5.5V, Typical:5.0V |
| 6 | BOOT | I | Normal work please leave empty | Normal work please leave empty |
Package Included:
1x Beitian BE-357 GPS Module
