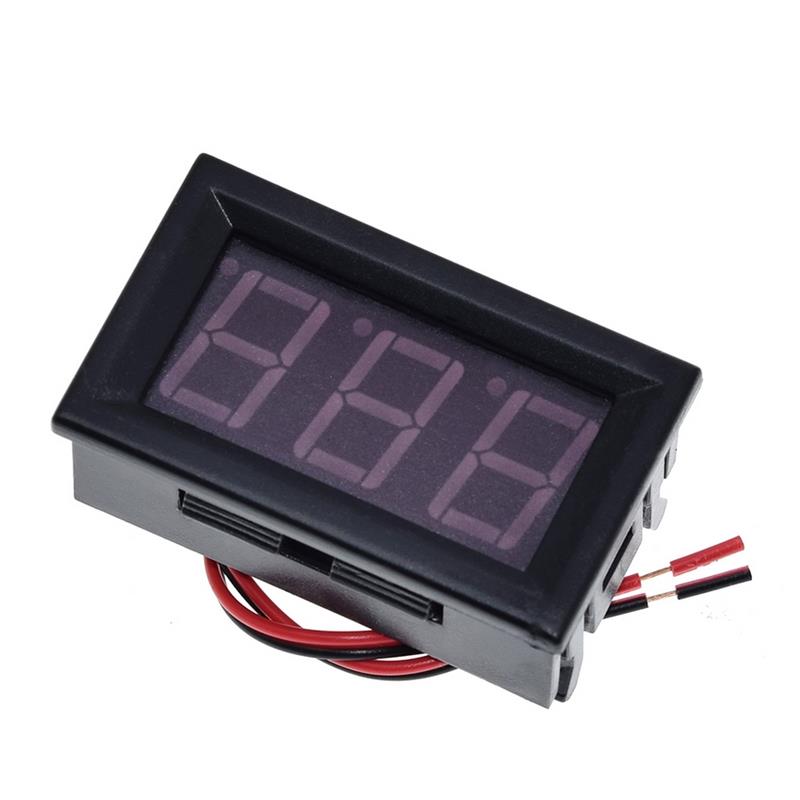

AC 70-500V 0.56inch Two-wire Digital Voltmeter LED Digital Display 2 Wires Red Green Blue Display AC Voltage Meter Head AC220V Mains Power 380V Industrial Power
Specifications:
1. Measuring range:AC70V-500V
2. Power supply range:No external power supply is required, and the instrument under test is used for power supply. Range:AC70V-500V
3. Maximum input:AC500V. NOTE:High input shafts above 500V may permanently damage the shaft.
4. Allowable error:??1%;
5. Input impedance:>1M ohm
6. Update rate:about 300ms/hour
7. Display mode:three-digit LED bipolar ‘0.56’
8. Display color:green/blue/red
9. Lead length:Approx.:20cm/7.87in
10. Outside dimension:approx.:4.8 x 2.9 x 2.2cm/1.89 x 1.17 x 0.87in
Hole size:4.6 x 2.7cm/1.81 x 1.06in
11. Net weight:about 18g
12. Operating temperature:-20?FC to 65?FC
Package Include:
1??Digital Voltmeter
Additional information
| Weight | 0.03 kg |
|---|---|
| Color: No selection | Blue, Green, Red |
