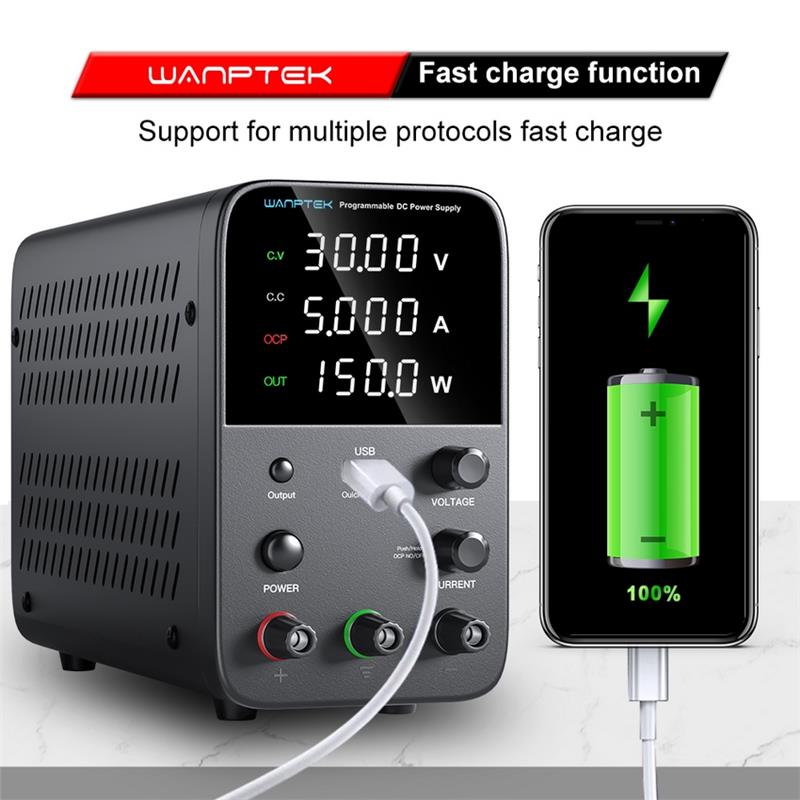

Wanptek Programmable DC Power Supply WPS3010H Laboratory Maintenance Workbench 30V 10A Voltage Current Regulator AC 220V 110V

Wanptek Programmable DC Power Supply WPS3010H Laboratory Maintenance Workbench 30V 10A Voltage Current Regulator AC 220V 110V
Description:
Four-digit display 0.01 V/0.001 A
1.WPS1602H/B Programmable DC power supply with power display 160V 2A
2.WPS1203H/B Programmable DC power supply with power display 120V 3A
3.WPS3010H/B Programmable DC power supply with power display 30V 10A
4.WPS605H/B Programmable DC power supply with power display 60V 5A
5.WPS305H/B Programmable DC power supply with power display 30V 5A
Functions:
Wanptek’s new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current:output voltage and output current can be continuously
5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220v can work , rest assured to choose.
12. Programmable DC power supply
Output Power:150W/300W/320W/360W
Output voltage:0~30V/60V/120V/160V
Output current:0~2A/3A/5A/10A
Working environment:input voltage:AC 230V/115V??10%;50Hz/60Hz
Working temperature:0?}ɳ40?};relative humidity:<80%RH
Storage temperature:-10?}ɳ70?};relative humidity:<70%RH
Constant voltage CV
Voltage stability:0.1%??3mV
Load stability:0.2%??3mV
Ripple voltage:??0.5% Vp-p
0 to rated voltage continuously adjustable
Constant current CC
Current stability:0.1%??3mA
Load stability:0.2%??3mA
Ripple current:??0.5% Vp-p
Recovery time:??500?SS
Temperature coefficient:??100ppm/?}
0 to rated current continuously adjustable
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.
Package Included:
1x DC power supply
1x power cord
1x Test line
1x Instructions
