XXD 2212 KV2200 Brushless Motor With 30A ESC 6035 Propeller Power Combo For F22 SU27 SU35 F15 RC Airplane
Description:
Item Name:XXD 2212 KV2200 Brushless Motor + 30A ESC + 6035 Propeller
Application:Suitable for back pusher fighters with a wingspan of about 0.8m and 500g.
Motor Specifications:
Brand Name:XXD
Item Name:2212 KV2200
Outer Diameter of Motor Housing:28mm
Motor Stator:Outer diameter 22mm, Height 12mm
Motor Shaft Diameter:3.17mm
Mounting Hole Spacing At The Bottom of Motor:16 * 19mm
Welded Banana Head:3.5mm male
Motor Screws:Four M3 * 6 cross screws

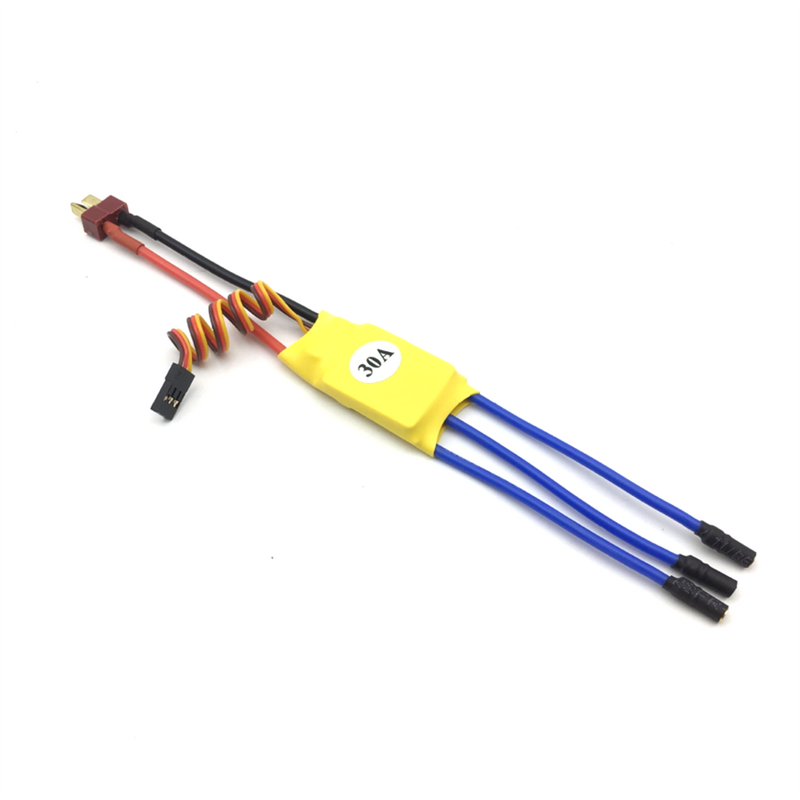

ESC Specifications:
Brand Name:XXD
Operating Voltage:2-3S Lipo, 4-12 NIMH
Continuous Working Current:30A
Instantaneous Current:40A
BEC Type:Linear
BEC Output:5V 3A
Dimension (mm):L50 * W23 * H8
Weight:25g
Welding Plug:3.5mm banana head female + T plug male
Propeller Specifications:
Item Name:6035 Propeller
Length:15.2cm
Aperture:6mm
Root Thickness:10mm
Diameter of the Gasket(mm):3/ 3.2/ 3.5/ 4/ 4.8/ 5/ 6/ 6.3
Package Included:
1x XXD 2212 KV2200 Brushless Motor
1x 30A ESC
2x 6035 Propeller
Additional information
| Weight | 0.118 kg |
|---|
