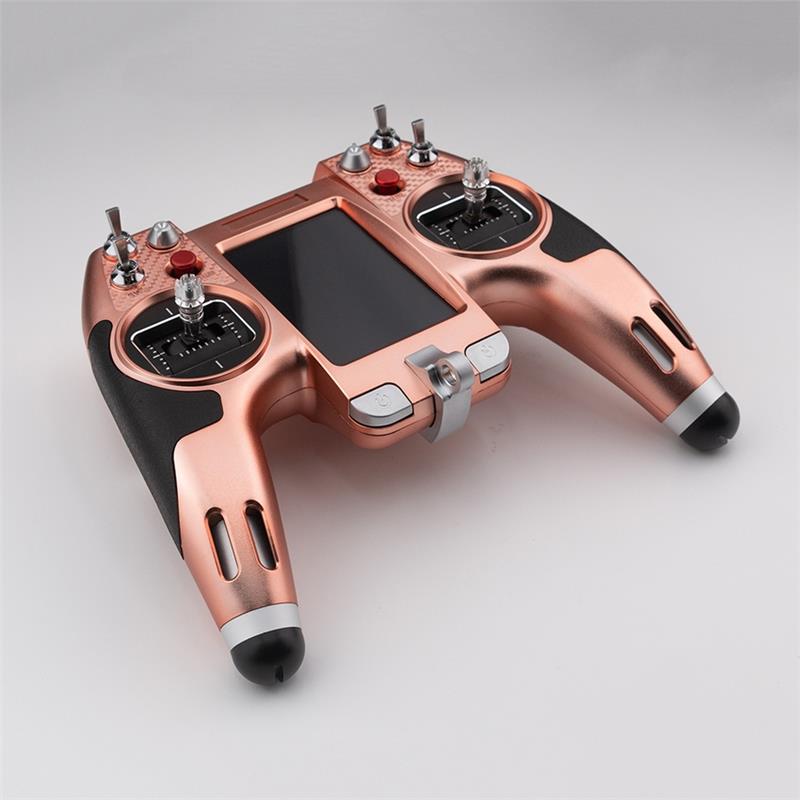

Flysky Elysium EL18 2.4GHz 3.5-Inch Touch Screen AFHDS 3 OpenTX/EdgeTX System Remote Controller RC Transmitter Limited Edition w/High-Precision CNC Hall Gimbals & Tmr Micro Receiver
Flysky Elysium EL18 2.4GHz 3.5-Inch Touch Screen AFHDS 3 OpenTX/EdgeTX System Remote Controller RC Transmitter Limited Edition for FPV Racing Drone
Description:
Brand:Flysky
Item:Elysium E18 RC Transmitter
Color:Red (Standard Version)/ Purple, Rose Gold (Limited Edition) (Optional)
Number of Channels:18-channel is for Internal RF, and 32-channel is for External RF.
RF:2.4 GHz ISM
2.4GHz Protocol:AFHDS 3
Maximum Power:< 20dBm (e.i.r.p.) ??EU)
Antenna:Two antennas, one is a built-in antenna, the other is external rotatable antenna.
Input Power:2* 18650 Li-Ion battery
Working Current:400mA/4.2V
Data Output:Type-C USB
Charging Port:Type-C USB
Resolution:4096
Screen:320*480 resolution IPS colour touch-screen
Distance:> 3500m (Air distance without interference)
Online Update:Yes
Temperature Range:-10?? ~ +60??
Humidity Range:20% ~ 95??
Dimensions:205*183.6*82.9mm
Weight:726g
Compatible Receivers:Classic version receivers, such as FTr10 or FTr16s, etc. Enhanced version receivers, such as FTr8B, FTr12B or Tmr, etc.
Compatible Models:Racing drones, fixed-wingaircraft, gliders or multicopters, etc.
Certifications CE??FCC ID:2A2UNEL1800, UKCA
Flysky Elysium EL18 Transmitter Manual, Click Here
Package Included:
1x Flysky Elysium EL18 Transmitter (Red / Blue / Purple / Rose Gold Optional)
1pc x TMR Receiver
1pc x 4G Micro SD Card
1pc x Shelf of the center of gravity adjustment
2pcs x TMR receiver antenna
1pc x usb to usc-c charging cable
2 sets x EL18 Toggle Switch Color Switch Cap (yellow and orange)
4pcs x Spring (High elasticity 13T Hard)
4pcs x Spring (Low elasticity 14T Hard)
1pc x EdgeTX quick start guide (Paper file)
1pc x EdgeTX user manual (Electrinuc archives)
Additional information
Weight | 1 kg |
---|---|
Mode: No selection | Mode 1 (Right Hand Throttle), Mode 2 (Left Hand Throttle) |
Color: No selection | Purple, Red, Rose Gold |
