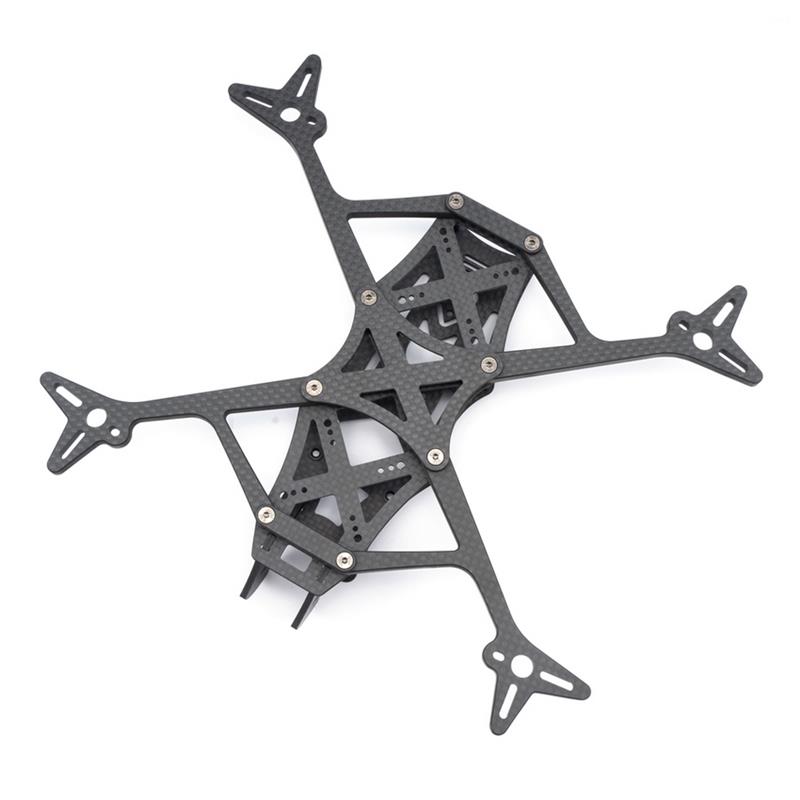

Chris Rosser AOS5 V2 5 Inch Frame Kit for Freestyle FPV RC Racing Drone Support DJI Air Unit or Caddx Vista

Chris Rosser AOS5 V2 5 Inch Frame Kit for Freestyle FPV RC Racing Drone Support DJI Air Unit or Caddx Vista
Click Here to buy replace Frame Arm together.
PRODUCT DESCRIPTION
We have partnered with Chris Rosser to provide the manufacturing and shipping of his designs. This is not an Open source frame and we can not provide files or changes to this frame. With the purchase of this frame, we provide all CF and Hardware for the frame.
For any 3d printing needed for the frame, please check out https://www.brain3d.co/ and they will help with anything you need.
The AOS 5 V2 refines and improves upon the original AOS 5 formula. A lightweight 5′ frame with exceptional vibration and resonance performance and so much more.
Flight performance is the cornerstone of every AOS frame. Exceptional vibration and resonance performance reduces propwash, oscillations and motor heating. Not only does the AOS 5 V2 fly amazingly on Betaflight 4.3 stock settings it also allows you to push your PID and filter settings further than ever before to achieve unparalleled stick feel and minimal filter delay.
The new arm geometry provides even more stiffness in key directions as well as improved durability in front impact. The 3 screw motor mounting reduces weight and removes the motor hole that can be a stress riser for compressive failure.
The AOS 5 V2 offers unparalleled flexibility for your electronics supporting up to 30×30 mm stacks in the front center and rear. It also supports the DJI Air Unit and HDZero 1W VTX, the original DJI HD FPV camera or any standard micro sized camera.
The AOS 5 V2 features 2 slots for captive battery straps on the top plate as well as an XT60 pass through to keep battery cables away from the props.
Building the frame couldn’t be simpler. Just 8 standoffs and 16 screws are needed and none of the frame screws are shared with your electronics. Only 2 screws need to be undone to change an arm.
Specifications:
– Designed for up to 5.1 inch props (no props in view)
– 6 mm Arms
– 2mm Top Plate and Sandwich Plates
– 2.5mm Bottom Plate
– Up to three 30.5×30.5 mm 25.5×25.5 mm or 20×20 mm stacks
– XT60 pass through in top plate
– Two captive battery strap slots
– Fits the DJI Air Unit (use front stack mounting) and HDZero 1W VTX
– Fits the DJI FPV camera or 19×19 mm camera
– Recommended motor size 2306, 2207, 2208, 25mm
– 16×16 mm up to 19×19 mm motor mounting
– Approx. 115g with all hardware
Package Included:
-1x AOS 5 V2 FPV Frame Kit
