iFlight BEC 2-8S 5V 2A 12V 3A Switchable for RC Drone FPV Racing Multi Rotor

iFlight BEC 2-8S 5V 2A 12V 3A Switchable for RC Drone FPV Racing Multi Rotor
iFlight BEC 2-8S 5V/2A 12V/3A Switchable for RC Drone FPV Racing Multi Rotor

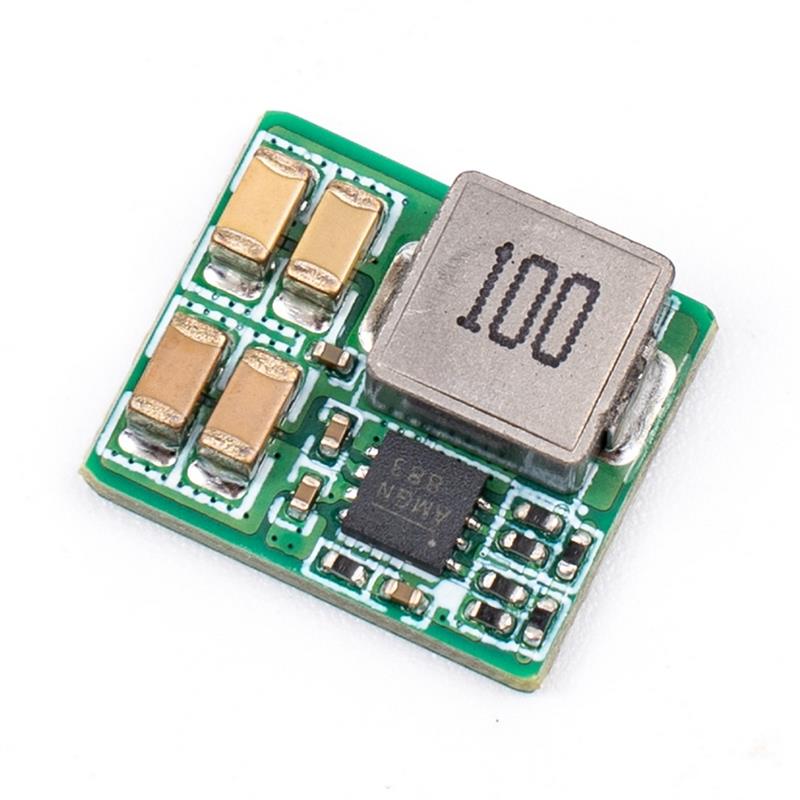

The iFlight Mirco BEC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 36V to a low output stable voltage, which makes it ideal for step-down voltage applications.
It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (5 to 36V).
Short connect ON-12V, the output voltage is 12V 2A. When disconnected, the output voltage is 5V 3A.
Description:
Brand name:iFlight
Item name:2-8S BEC
Input voltage:2-8S(5-36V)
BEC Output:5V/2A, 12V/3A (default 5V/2A)
Size:14*11*1mm
Pins distance:2.54mm
Weight:0.8g
Features:
Step-down switch mode
High-efficiency synchronous
Wide 5V to 36V Input voltage range
Voltage output can be 5V or 12V adjustable. (default 5V)
Package included:
1 x iFlight 2-8S BEC
1 x connecting cable set
