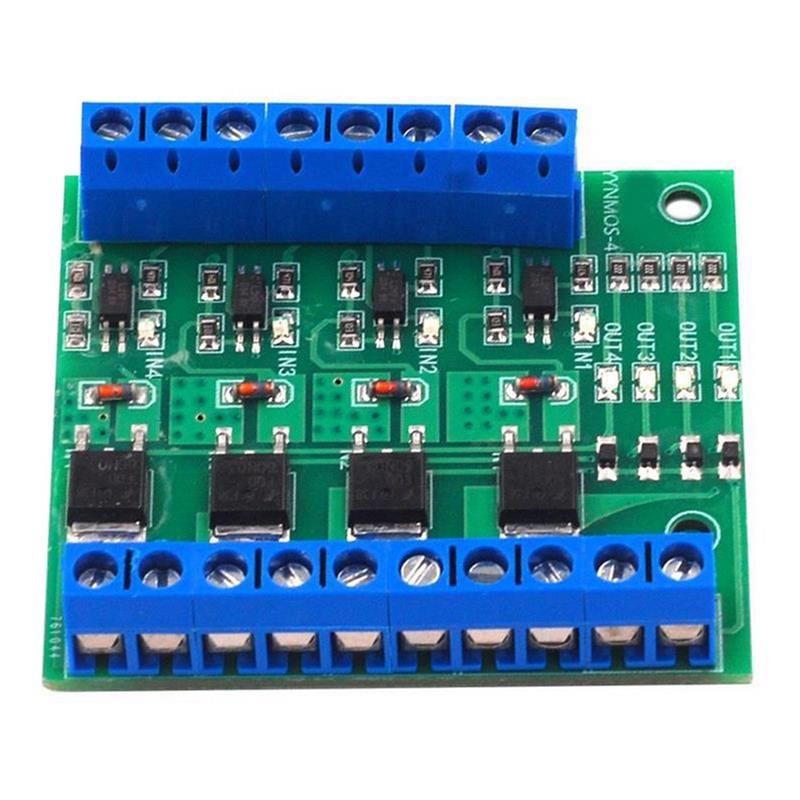

4-Channel MOS FET PLC Amplifier Board Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation Module Accessories

4-Channel MOS FET PLC Amplifier Board Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation Module Accessories
Specification:
Product model:YYNMOS-4
Product weight:27g
Product size:56*50*10mm
Features:
1. Strong anti-interference ability, stable performance, input signal and output isolation.
2. Input signal:PWM signal between 3~20V
3. Output capacity:DC 3.7V~27V, current within 10A per channel
4. PWM frequency:0~200Hz
5. Indicator light:with input signal and output indicator light
6. Application description:The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, miniature water pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness, etc.
7. Module interface description:
DC+:The positive pole of the device’s DC power supply
DC-:the negative pole of the device’s DC power supply
PWM:signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND:signal negative terminal
OUT+:Positive output terminal (connected to the positive pole of the device)
OUT-:The negative pole of the output terminal (connect to the negative pole of the device)
Package Include:
1??Module Board
