Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth High-efficiency Cooling System for TX16S MKII TX12 MKII Radio Transmitter
Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth High-efficiency Cooling System for TX16S MKII TX12 MKII Radio Transmitter
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio RadioMaster has you covered!
Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note:The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.
Specification:
Brand:Radiomaster

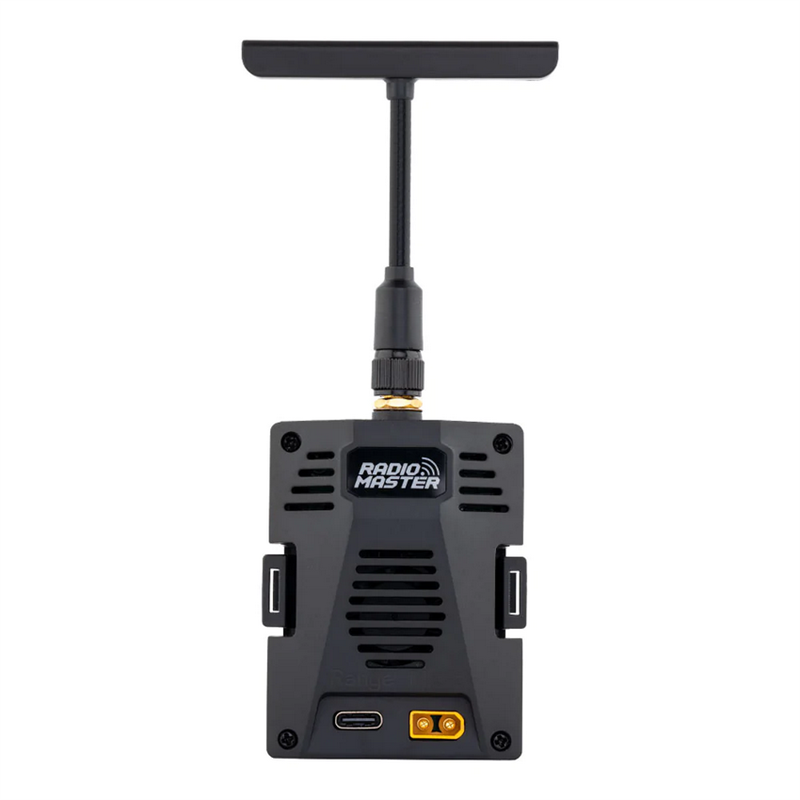

Item:Ranger Micro Module
Regulatory Domain:ISM2400
MCU:ESP32(main), ESP8285(aux,as ESP backpack)
RF chip:SX1281IMLTRT
Frequency Range:2400 MHz – 2480 MHz
Maximum packet rate:500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate:25Hz
RF Output Power:30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support:Yes
Bluetooth support:Yes
XT30 Power supply voltage:DC 6V – 16.8V
Weight:50g (with antenna) / 40.5g (without antenna)
Dimension:136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Features:
* High-efficiency cooling system
* Up to 1Watt Power output
* Wifi and Bluetooth support
* Packet rates up to F-1000Hz
* T-antenna included
* With the Micro connector, support TX16S MKII and TX12 MKII radio
Package Includes
1 * Ranger Micro Module
1 * T Antenna
Additional information
| Weight | 0.066 kg |
|---|
