YXZNRC F09-S 2.4G 6CH 6-Axis Gyro GPS Optical Flow Positioning 5.8G FPV Camera Dual Brushless Motor 1:47 Scale Flybarless RC Helicopter RTF

YXZNRC F09-S 2.4G 6CH 6-Axis Gyro GPS Optical Flow Positioning 5.8G FPV Camera Dual Brushless Motor 1:47 Scale Flybarless RC Helicopter RTF
Specification:
Brand:YXZNRC
Item:F09-S
Product size (cm):
Rotor diameter:425mm
Body length:420mm
Height:120mm
Weight:438g
Radio Frequency Band:2.4GHz
Body battery:11.1V (1350MAH) 30C Lipo Battery
Charging time:about 90minutes
Use time:9-12 minutes
Function Description:
1> According to the U.S. UH60 Black Hawks helicopter, the scale is reduced to 47:1, with high simulation appearance details, cool lights, and movable side door shock landing gear.

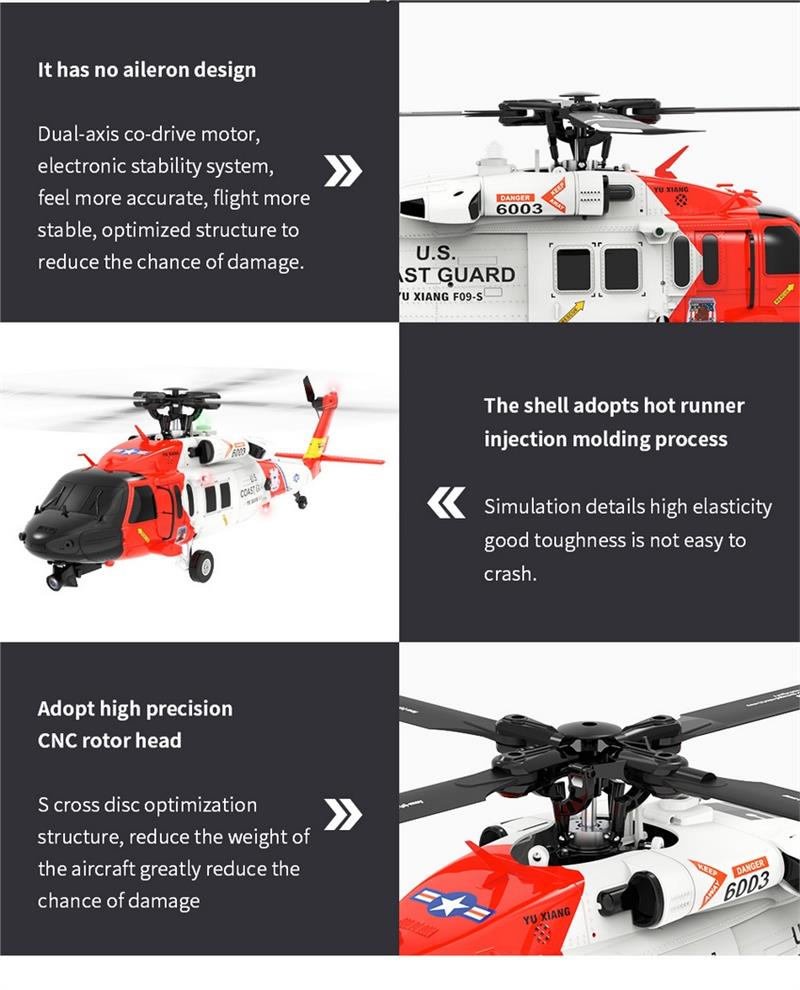

2> The flybarless design, dual shaft co drive motor and electronic stability enhancement system are adopted to make the hand feel more accurate, flight more stable, and optimize the structure to reduce the probability of damage.
3> The propeller is designed according to the aerodynamic principle to provide strong power and body self stability. High efficiency and power saving, long flight time. The blade is made of nylon+carbon fiber composite material with high strength, good toughness, impact resistance, deformation and durability.
4> The 4004 630KV brushless motor is used for self stabilizing co drive to reduce gear agitation. It has the characteristics of low noise, large torque, high power efficiency, and specially made high temperature resistant magnetic steel can withstand 150 ?? high temperature without damage, thus improving the service life.
5> The tail locking motor uses a specially made 1104 4200KV brushless motor, which is characterized by high temperature resistance, fast responses speed, stable tail locking, and long working time, and is not easy to damage.
6> Large 4.3g metal digital steering gear is used, featuring high torque response, fast precision, and high centering accuracy. The response speed is 60 ??/0.05ms, making the aircraft fly accurately, feel good, and have a longer life.
7> Intelligent flight control, equipped with a GPS module, a visual module, a barometric height fixing module under the compass module, a visual flight manual self stabilizing mode, a multi-function flight mode under GPS stabilization, and a safe flight function such as one button return, low power, intelligent return, runaway return, one button landing, electronic fence, love flight, circular flight.
8> New 8-channel high-precision remote controller, 2.4GHZ two-way communication protocol. It has 1024 level operation feel high-definition display screen for two-way data retrieval, which can feed back important information such as aircraft power, flight speed, flight height, flight distance, flight direction and GPS quantity in real time, effectively improving users’ accurate control of aircraft
9> The high-precision CNC rotor head cross plate is used to optimize the structure, reduce the weight and greatly reduce the probability of aircraft damage.
10> The casing adopts the hot runner injection molding process, and the simulation details are highly elastic, good toughness and not easy to be damaged.
11> Professional customized high rate lithium polymer 11.1V 1350mah 30C battery, high discharge rate, long service life, flight time of about 9-12 minutes, and normal use of up to 500+cycles. It has the functions of preventing overcharge, overcharge and low discharge, and effectively prolonging the service life of the battery.
12> Equipped with special charging stand, high-precision digital display balanced charger.
13> It can carry 5.8G analog image transmission with a distance of 300m
Helicopter Munual:click here
RTF Version Package included:
1 x F09-S RC Helicopter
1 x Transmitter
1 x Special Charger
1 x Intelligent Battery
1 x Tail Blade
1 x Hexagon
1 xScrewdriver
4x Main Blades
1 x User Manual
