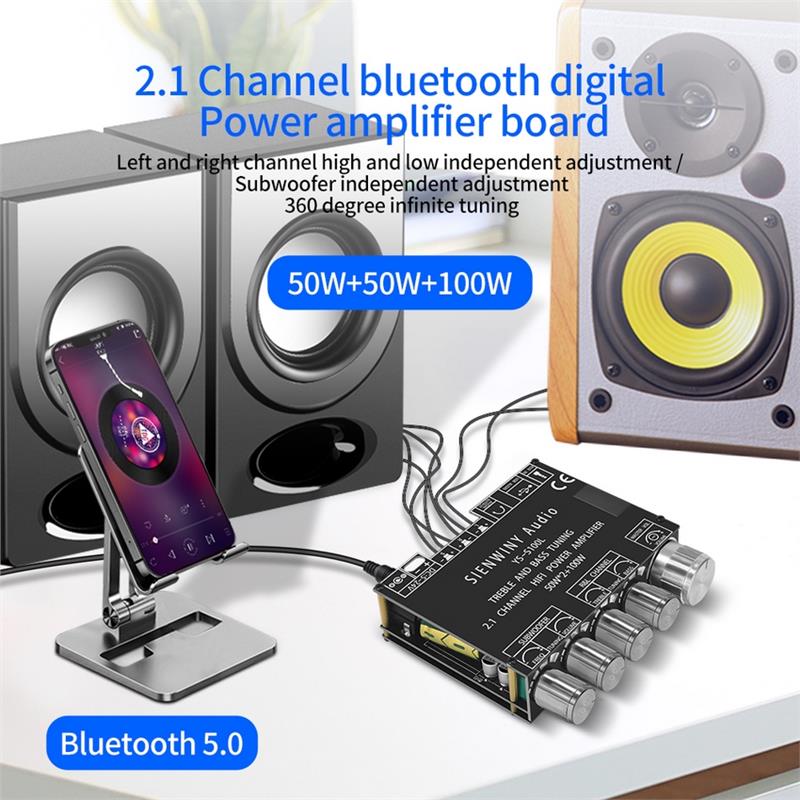

YS-S100L 2.1 Channel bluetooth 5.0 Audio Amplifier Board 50W2+100W High Power Subwoofer Stereo Amplifier Board Module
Specification:
Product name:2.1 channel bluetooth audio amplifier module
Product model:YS-S100L
bluetooth version:5.0
Audio channel:2.1 channel
Input method:bluetooth+AUX+U disk+USB sound card Power supply:DC5-26V/10A or above
Audio output:left and right channels + subwoofer + 3.5mm interface stereo output
Volume adjustment:high-end encoder knob adjustment, smooth feel
Frequency range:20Hz-30KHz
Signal to noise ratio:92dB
Output power:50W*2(left and right channels)+100W(subwoofer)
Satellte box (left and right channel) suitable speaker:10W-100W /42-852
Subwoofer (subwoofer) suitable speaker:20W-200W /42-82
Protection mechanism:electrostatic protection, overcurrent protection, short circuit protection, overheating protection
Unique function:support YS Audio-APP control
Product size:95x88x25(mm)
Product weight:156g
Features:
This is a 2.1-channel power amplifier with 5.0 Bluetooth function (no blocking signal within 15 meters), subwoofer + stereo function, which can adjust the subwoofer frequency and volume separately.Separate adjustment of stereo channel treble frequency, bass frequency adjustment, volume control.
Package Include:
1??Audio Amplifier Board
1??Screwdriver
Additional information
| Weight | 0.171 kg |
|---|
