RTL-SDR V3 R820T2 RTL2832U 1PPM TCXO SMA RTLSDR Software Defined Radio
Description:
This is an RTL-SDR blog software defined radio receiver with RTL2832U ADC chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminum housing with passive cooling. Tunable from 500 kHz to 1.7 GHz with bandwidths up to 3.2 MHz (2.4 MHz stable). (HF works in direct sampling mode). Ideal for use as a computer based radio scanner with free software like SDR#, HDSDR, SDR-Radio, GQRX or SDR Touch on Android. Works with computers such as Windows, OSX, Linux, Android, and Raspberry Pi.
Ideal for many applications including general radio scanning, air traffic control, public safety, ADS-B aircraft radar, ACARS, trunked radio, P25/MotoTRBO digital voice, POCSAG, weather balloons, APRS, NOAA APT/Meteor M2 weather satellites, radio Astronomy, DAB or as a low cost panadapter with ham radio.
Comes with a versatile dipole antenna kit, perfect for beginners. Short antennas are ideal for ADS-B, while longer antennas work well at lower frequencies. When used in a v-dipole configuration, the antenna is suitable for 137 MHz weather satellites and the International Space Station. Vertical configuration for ground signals. Two brackets and 3m of RG174 cable allow you to easily mount the antenna outdoors.

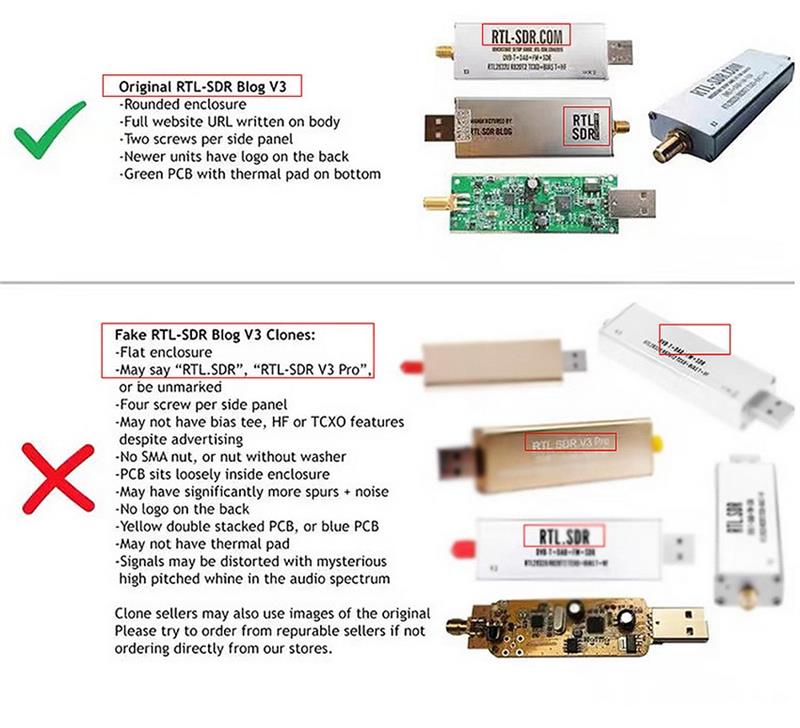

This model has some improvements over other brands. It uses an improved R820T2 tuner, 1PPM TCXO, better components, a redesigned low-noise PCB, cooling improvements, additional ESD protection and SMA F connectors. It also has a software-activatable bias tee for powering the LNA and active antenna. Full information on improvements.
To enable HF reception below 24 MHz.
Specifications:
Product name:Software Defined Radio
Frequency range:500KHz ?C 1766 MHz
Sampling rate:maximum 3.2Msps (2.56Msps stable value)
AD sampling bits:8-bit
Size:70??28??14mm
Package Include:
1??Software Defined Radio
Additional information
| Weight | 0.102 kg |
|---|
