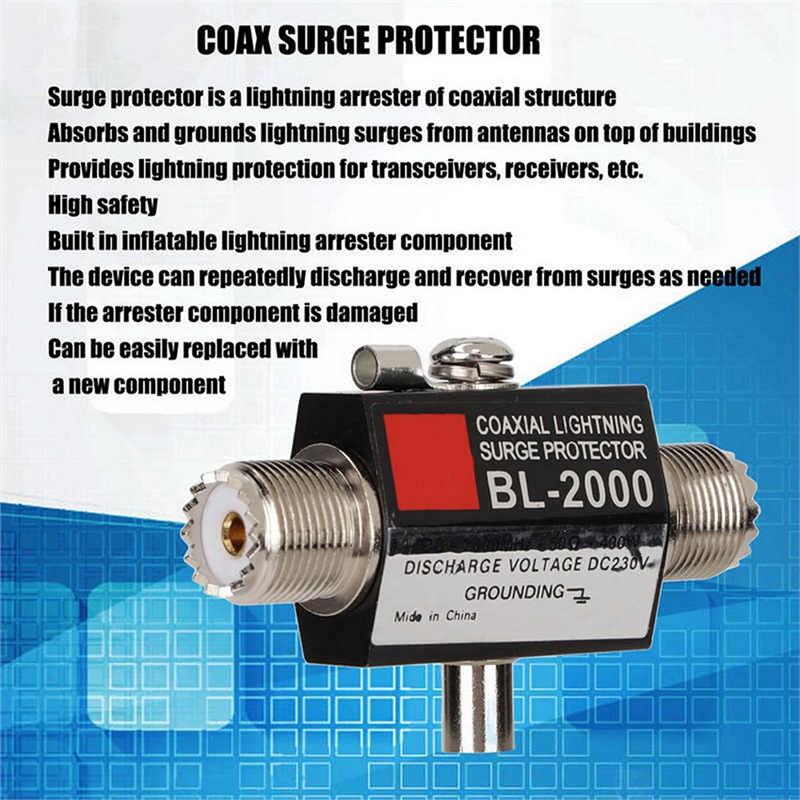

BL-2000 Coaxial Lighting Surge Protector PL259 Female to PL259 Female Coaxial Lighting Arrestor for Communication Equipment

BL-2000 Coaxial Lighting Surge Protector PL259 Female to PL259 Female Coaxial Lighting Arrestor for Communication Equipment
Specification:
Item Type:Coaxial Lighting Arrestor
Material:Iron
Model:BL-2000
Connector:PL259 Female to PL259 Female
Frequency Range:DC~1000MHz
Voltage VSWR:??1.1
Peak Power:400W
Impedance:50 Ohm
Features:
1. Comprehensive Protection:Absorbs and grounds lighting surges from antennas on top of buildings, providing complete protection for transceivers, receivers, etc.
2. Safety Guarantee:Designed with high safety in mind, the built in inflatable lighting arrester element discharges and grounds the surge when the surge voltage exceeds a specified level.
3. Convenient and Practical:Surge discharge and recovery action can be repeated as needed. If the lighting arrester components are damaged, they can be easily replaced with new components.
4. Superior Performance:The coaxial structure of the lighting surge protector ensures excellent high frequency characteristics, wide bandwidth, low loss and VSWR.
5. Easy Installation:The coaxial lighting surge arrester adopts 1/4 wavelength short circuit principle, good lighting protection. Simple structure, sturdy and easy to install.
Package Include:
1??Coaxial Lighting Arrestor
1??Instruction Manual
