MoesHouse Tuya Smart bluetooth Dual Power Controller 80A Automatic Transfer Switch for Off Grid Solar Wind System DC 12V 24V 48V AC 110V 220V

MoesHouse Tuya Smart bluetooth Dual Power Controller 80A Automatic Transfer Switch for Off Grid Solar Wind System DC 12V 24V 48V AC 110V 220V
Specification:
Product Name:Smart bluetooth Dual Power Controller
Model:BAT-80A
Rated Power:8kw (Utility Power 100-120V);16kw (Utility Power 220-240V)
Input Voltage:Auto Selection:AC 100-120V or AC 220-240V
Output Voltage:Auto Selection:AC 100-120V or AC 220-240V
Transfer time:Inverter transfer time to utility power??10ms
Utility power transfer time to inverter??16ms
LCD Display:Battery voltage; Power source:Utility power or battery-inverter.
System Voltage:Auto Select:12V or 24V or 48V
Battery low voltage transfer set-points:Default:10.5V/21V/42V, adjustable
Battery recovery set-points:Default:12.5V/25V/50V, adjustable
Application:Off grid solar system; Wind generator; Hydro generator
Product Size:19*17*7.25cm(7.4??*6.7??*2.8??in)
Features:
??New Compatibility with MOES APP??MOES APP compatible ensures its smart controls by APP for flexible transfer and usage between the public power and battery,featured with the three functional values as grid power,automatic mode and inverter power in the APP for power supply.(Note:All functions on the ATS itself work without any interference to the APP.)

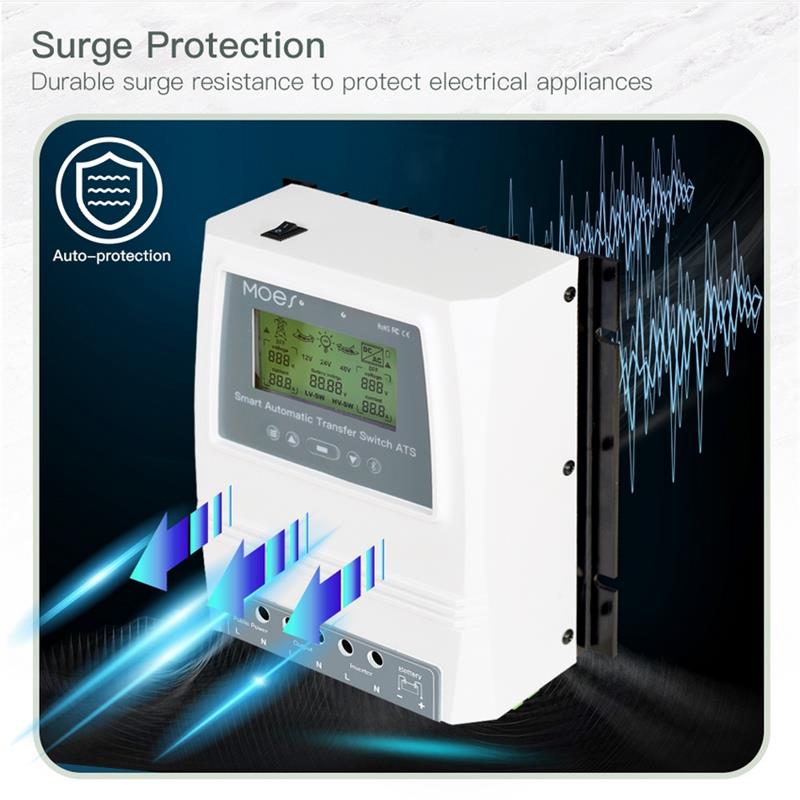

??Smart Monitor on Electrical Values with Surge Protection??Timely access to the current voltage of grid,battery and inverter,specially the current,power and electricity consumption of the load,performing as the advanced power system with surge protection featured for over-current protection.Bluetooth hub is required for smart scene automation,but with fast network pairing featured under phone Bluetooth and 2.4G WiFi.
??Beneficial to Solar or Wind System with Manual Switch??On cloudy or windless days when your battery gets low,it will automatically switch to grid power to protect your battery,especially for the condition that when battery voltage is lower than cut off point,it will automatically switch back to battery power when the battery voltage is higher than recovery point,working like an opposite direction UPS with the updated manual switch function for your convenience.
??Auto Distinguish with Adjustable Set-points and AC Test??DC 12/24/48V,AC 100-120V 60HZ / 220-240V 50HZ auto distinguish.User can define the Cut-Off and Recovery Voltage.Recovery voltage must be higher than Cut-off voltage.Suitable for various battery types as Sealed,Gel,Lead-acid,Lithium battery and so on,the battery low voltage transfer and battery recovery set-points are freely adjustable up to the battery type.AC test is functional well as the device will automatically switch to public power when the inverter AC output is abnormal.
??Bigger Power with Large LCD Display??Updated rated power:8KW(110V) or 16KW(220V) and 80A ,Fast Transfer time:Inverter transfer to public power ??10ms,public power transfer to inverter ??16ms,designed with large LCD display for showing battery real-time voltage,working status of public power,inverter and battery.
Package Include:
Smart bluetooth Dual Power Controller??1User manual??1
