FBP-1090s ADS-B Bandpass SAW Filter 1090MHz SMA Interface Filter
Description:
This filter can guarantee a passband bandwidth of 30MHz, low insertion loss, and a steep cut-off characteristic.
Performance optimization of ADS-B receivers for 1090MHz to effectively filter out-of-band signals, reduce noise, and increase dynamic range.
The device is ultra-small and easy to use.
Specifications:
Model:FBP-1090s
Impedance:50 Ohms
Center frequency:1090 MHz
Passband (1 dB bandwidth):30 MHz
30 dB bandwidth:Less than 80 MHz
In-band insertion loss:1.7 to 2.2 dB
Maximum Carrying Power:100 mW (20 dBm)

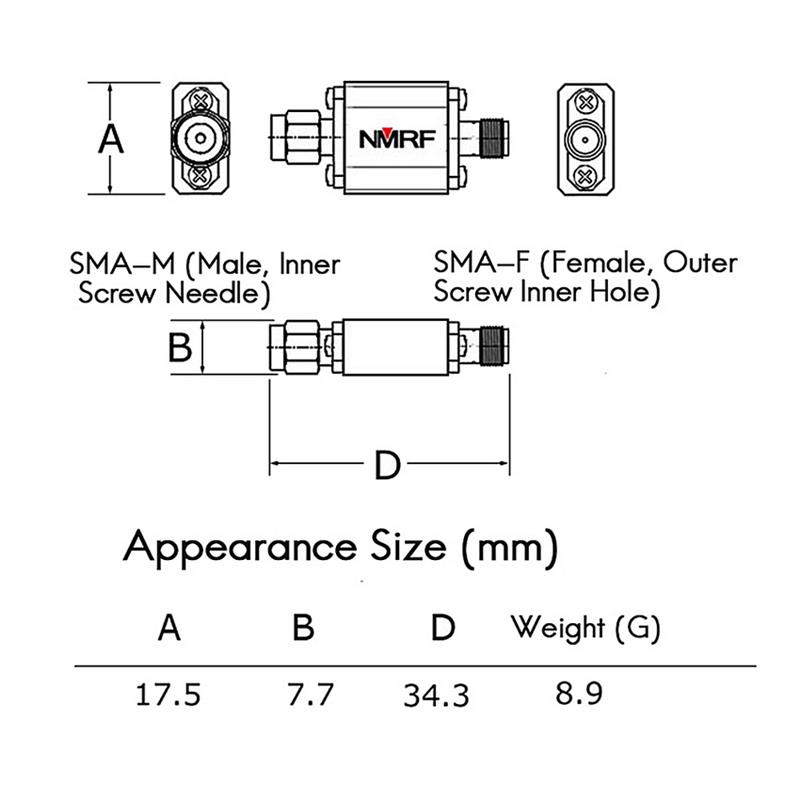

Interface:SMA-M, SMA-F
Material:Metal
Package Include:
1??FBP-1090s Bandpass Filter
Additional information
| Weight | 0.013 kg |
|---|
