XH-M601 Battery Charging Control Module 12V Intelligent Charger Power Control Panel Full Power Off Overcharge Protector Board Charging Discharging Controller
Specifications:
Product name:Battery Charging Control Module
Product model:XH-M601
Supply voltage:13.8V-14.8V
Relay closing voltage:12.4V
Relay disconnection voltage:14.8V
Voltage error:??0.1V
Voltage detection method:DC voltmeter
Charging type:12V battery
Potentiometer adjustment:RP1 RP2 (careful adjustment)
Product Size:50??32??18mm
Features:

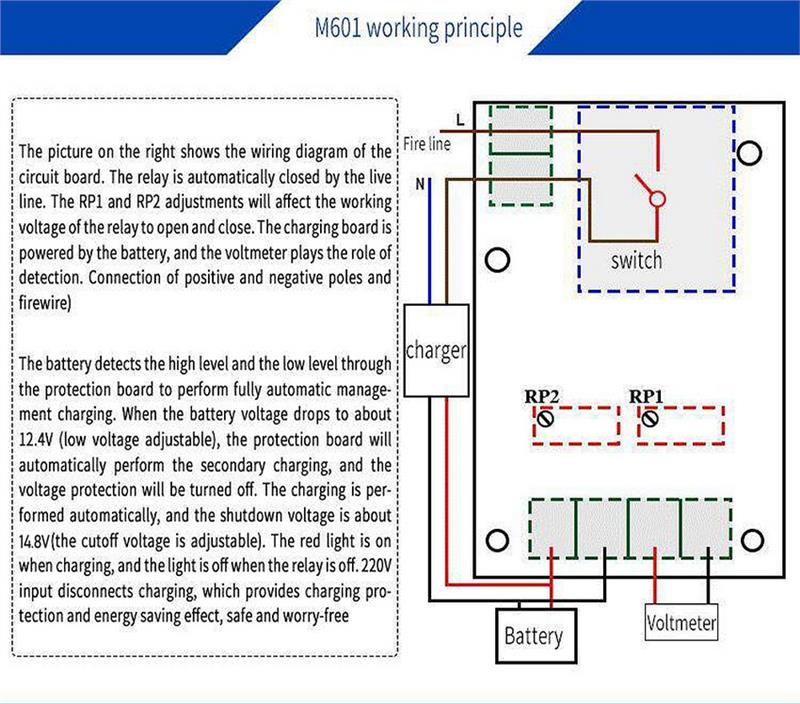

1. This board is specially designed for:12V battery, when the battery voltage drops to about 12.4V (low voltage adjustable), the protection board will automatically perform secondary charging, and when the power is turned off about 14.8V (M (cut-off voltage adjustable). Charging When the red light is on, the red light is off when fully charged, and the relay disconnects the 220V terminal to end the charging, thus achieving the effect of energy saving.
2. This board is suitable for 1-2KW transformer, the battery can be woken up by the protection board to detect high level and low level to automatically manage charging.
3. This board has reverse connection protection function, no output if the battery is not connected:no matter whether the battery clips at the output end touch or not, you can plug in with confidence.
No output if the battery polarity is reversed:This is a very practical function, and even a blind person will not have a problem.
Output short-circuit automatic shutdown:This is also a very practical protection, no matter what state the charger is in, as long as the output terminal is short-circuited, the charger will automatically turn off the output, thus effectively protecting the charger from being burned out due to short-circuit.
Package Include:
1??Battery Charging Control Module
Additional information
| Weight | 0.022 kg |
|---|
