Flipsky 75100 84V ESC with Aluminum PCB 75 Water Cooling Enclosure for Surboard Submarine Underwater Propeller RC Models Parts
Description:
FS75100 is 75 series, programmable via firmware with
overheat and over current protection, regenerative braking capacity
It’s designed with aluminum case, with good heat dissipation and max working
voltage can be 20S, 84V. Also, it has two COMM ports supporting UART mode parts
like IMU, bluetooth module, screen display or remote controller
Specification:
Voltage:14-84V (4-20S)
Continuous Current:100A; Max Current:120A
ERPM:150000
Continol Interface Ports:USB, CAN, UART
BEC:5V@1A
Modes:DC,BLDC,FOC(sinusoidal)
Supported Sensors:ABI, HALL, AS5047, AS5048A
Input Set Support:PPM, ADC, NRF, UART ,SPI,IIC(for IMU)
Wire Size:12AWG

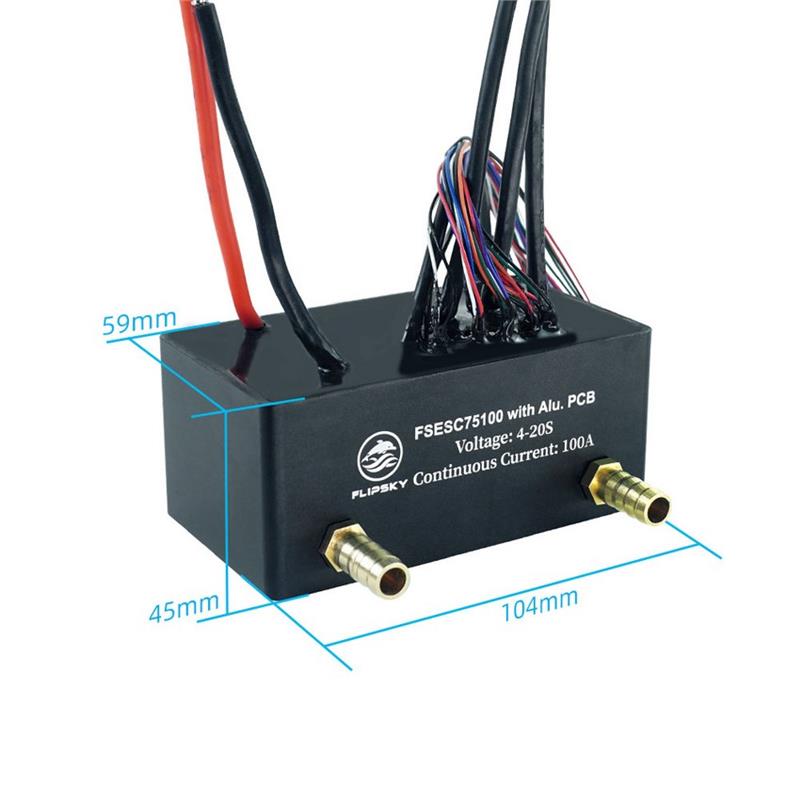

Size:L104mm*W59mm*H45mm
Programmable:Yes
Regenerative Capacity:Yes
Package Included:
1X 75100 ESC
Wiring Diagram:Please Click Here to download
Additional information
| Weight | 0.638 kg |
|---|
