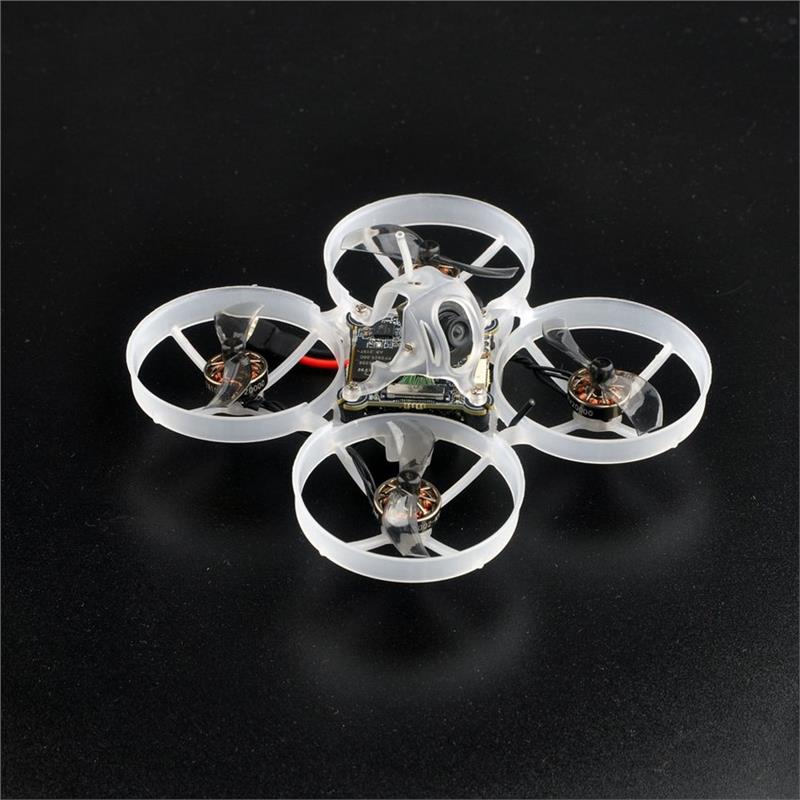

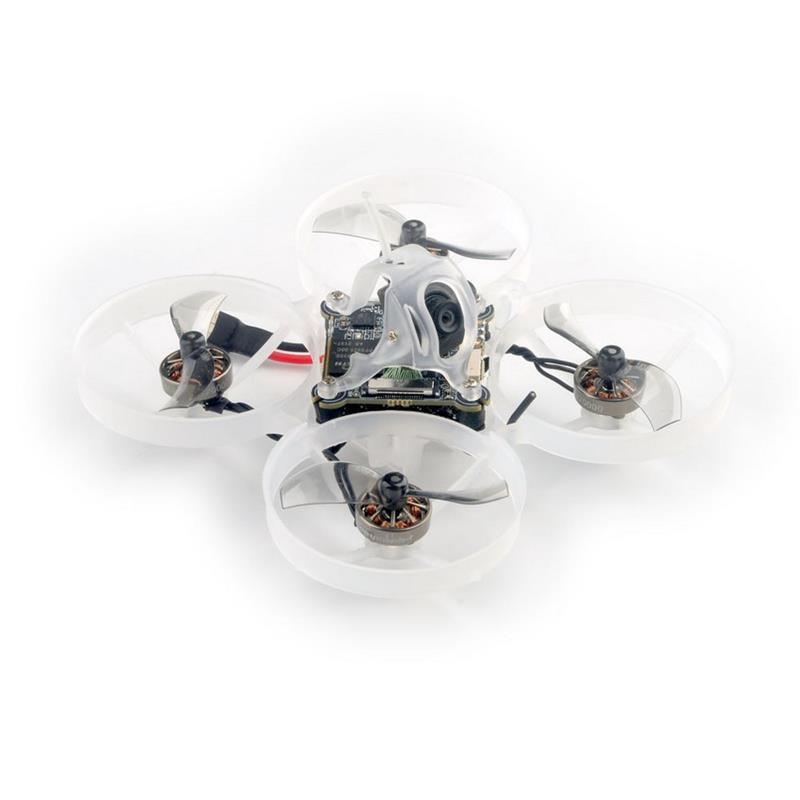

Happymodel Moblite7 HDZero 1S 75mm F4 Whoop FPV Racing Drone BNF with HDZero Whoop Lite VTX HDZero Lite Camera
Dilvery Tine:Oct. 7th.
Specification:
Brand Name:Happymodel
Model:Moblite7 HDZERO
Frame wheelbase:75mm
Weight:29.5 gram without battery
Size:98mm*98mm*50mm
Receiver optional:SPI ELRS 2.4GHz / SPI Frsky Receiver
Compatible with 1S Lipo battery or Lihv battery PH2.0 Plug ( Not Included)
| SuperbeeF4 Lite Flight Controller | SPI ELRS version Firmware target:CrazybeeF4SX1280 SPI FRSKY version Firmware target:CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor:MPU-6000 or ICM20689 or BMI270(SPI connection) Power supply:1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4IN1 ESC | MCU upgraded to EFM8BB21 Power supply:1S LiPo/LiPo HV (2.8v~4.35v) Currents:5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware:O_H_5_REV16_8.HEX Default protocol:DSHOT150/DSHOT300/DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver ( SPI ELRS Version) |
Packet Rate option:25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency:2.4GHz Telemetry output Power:<12dBm Receiver protocol:SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
| Onboard Frsky SPI D8 /D16 2.4GHz Receiver ( Compatible Frsky Receiver Version) |
SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels:8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground):100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS, Redpine protocol |
| EX1002 20000KV Motor | Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:??1.5mm Motor Dimension(Dia.*Len):??13.5mm*12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only |
| Gemfan 1610-2 Blades Propeller | Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Hole Dia:1.5mm |
| HDZero Whoop Lite VTX | 1S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
| HDZero Nano Lite Camera | 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3:D:130?? H:108?? v:84?? 16:9:D:122?? H:108?? V:65?? |
Package Included:
1x Mobula7 v4 75mm frame +Canopy
1x Optional Receiver
4x EX1002 KV20000 Unibell brushless motor
4x Gemfan 1610-2 Blades Propeller CW
4x Gemfan 1610-2 Blades Propeller CCW
1x HDZero Whoop Lite VTX
1x HDZero Nano Lite Camera
1x Spare Canopy
1x Propeller disassemble tool
1x Screw driver
Additional information
| Weight | 0.1 kg |
|---|---|
| Receiver: No selection | 2.4GHz ELRS SPI, Compatible Frsky Receiver |
