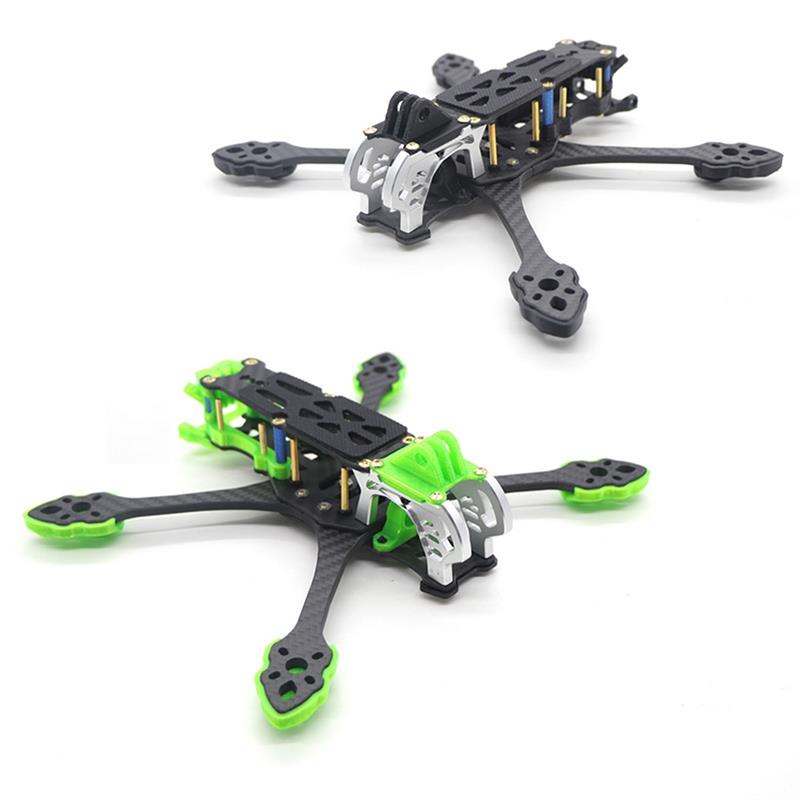

HSKRC MAK5 225mm Wheelbase 3K Carbon Fiber 5 Inch Freestyle Frame Kit Support DJI Air Unit Digital System for RC Drone FPV Racing
Features:
– 7075 Aluminum alloy Side Plate, more durable and Pretect FPV Camera more effectively
– X Frame Arm design, flying more stable and flexible
– Compatible with DJI / Vista HD digital System and Analog VTX
– 19-20mm Camera Mounting Width
– Support 16x16mm and 19x19mm Motor Mounting Hole
– With TPU Mounting Base for Gopro
Specification:
Brand:HSKRC
Model:MAK5
Item Name:225mm Wheelbase 5 Inch Frame Kit
Wheelbase:225mm
Material:3K Carbon Fiber
Upper Plate Thickness:2.5mm
Bottom Plate Thickness:2.5mm
Arm Plate Thickness:5mm
Weight:170g approxi. ( include 3D Printing Parts)
Flight Controller Mounting Hole:30.5×30.5mm
VTX Mounting Hole:30.5×30.5mm, 20x20mm
Motor Mounting Hole:16x16mm, 19x19mm
Camera Mounting Hole:19-20mm
Inner Height:25mm
Screw Size:M2 and M3
Recommend Parts:( NOT Included)
| FC & ESC | iFlight BLITZ F7 V1.1 FC & 45A BL_S 4In1 ESC Stack VTX | HGLRC Zeus F748 Stack F722 F7 FC & 48A 4in1 ESC |
| Brushless Motor | iFlight XING-E Pro 2306 1700KV 3-6S Motor | iFlight XING2 2207 1855KV / 2755KV 4-6S Brushless Motor |
| Propeller | Gemfan Windancer 5043 5×4.3 5 Inch 3-Blade Prop | iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller |
| VTX & Camera | Caddx Ratel 2 1/1.8″ Starlight 1200TVL | RunCam Air Unit |
| Lipo Battery | TATTU R-LINE Version 3.0 14.8V 1300mAh 120C 4S Lipo | iFlight FULLSEND 22.2V 1300mAh 130C 6S Lipo |
Package Included:
1x HSKRC MAK5 Frame Kit
Additional information
| Weight | 0.17 kg |
|---|---|
| Color: No selection | Black, Blue, Green, Red |
