Matek H743-WLITE Flight Controller Built-in OSD 2-6S ArduPilot INAV Open Source for FPV Drone RC Airplane

Matek H743-WLITE Flight Controller Built-in OSD 2-6S ArduPilot INAV Open Source for FPV Drone RC Airplane

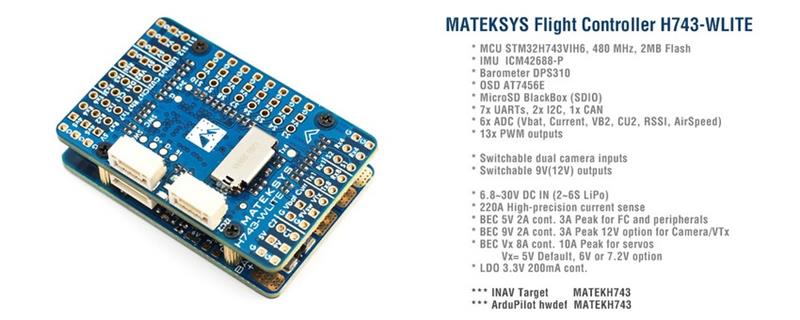

Specifications:
Brand Name:Matek
Item Name:H743-WLITE
MCU:STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash
IMU:ICM42688-P
Baro:DPS310 (I2C2)
OSD:AT7456E
Blackbox:MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(12+LED)
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
2x I2C
1x CAN
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
9V(12V) for VTX power switch
High-precision Current Sense, 220A range
ADC VB2 voltage divider:1K:20K
ADC AirSpeed voltage divider:20K:20K
FC Firmware
INAV:MATEKH743
ArduPilot:MATEKH743
PDB
Input voltage range:6.8~30V (2~6S LiPo)
1x ESC power pads
Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
Current Senor:220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
Sense resistor:90A continuous, 220A peak
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current:2 Amps, Max.3A
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current:2 Amps, Max.3A
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current:8 Amps, Max.10A
for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
Designed for Baro / Compass module and external 3.3V peripherals
Linear Regulator
Continuous current:200mA
Physical
Mounting:25 x 25mm, ??2mm
Dimensions:44 x 29 x 14.5 mm
Weight:22g w/ USB/buzzer adapter
Including
1x H743-WLITE
1x USB(Type-C)/Beep (Passive buzzer) Extender
1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
1x Rubycon ZLH 35V 470uF capacitor
Dupont 2.54 pins (Board is shipped unsoldered)
INAV Mapping, Click Here
ArduPilot Mapping, Click Here
Notes & Tips:
H743-WLITE vs F765-WSE
– STM32H743VIH6 vs STM32F765VIH6
– RX4/TX4 vs RX5
– Other components and layout are identical.
ArduPilot
– 220A Current sensor on H743-WLITE, , BATT_AMP_PERVLT to 66.7
– 1k:20k voltage divider for battery voltage sense on H743-WLITE, BATT_VOLT_MULT 21
– Supported since Arduplane 4.2
– It is recommended to use STM32CubeProgrammer to erase MCU and upload firmware. check this blog http://www.mateksys.com/p=6905
INAV
– 220A Current sensor on H743-WLITE, set current_meter_scale = 150
– 1k:20k voltage divider for battery voltage sense on H743-WLITE, set vbat_scale = 2100
– H743-WLITE is not supported by INAV4.1 or older downloaded from configurator. pls download inav_4.1.0_MATEKH743_42688 from here.
– Starting with INAV5.0, you may download firmware directly from INAV configurator.
Others
If the ESCs you are using don??t have enough capacitors integrated, low ESR electrolytic capacitor is required for reducing ESC noise.
