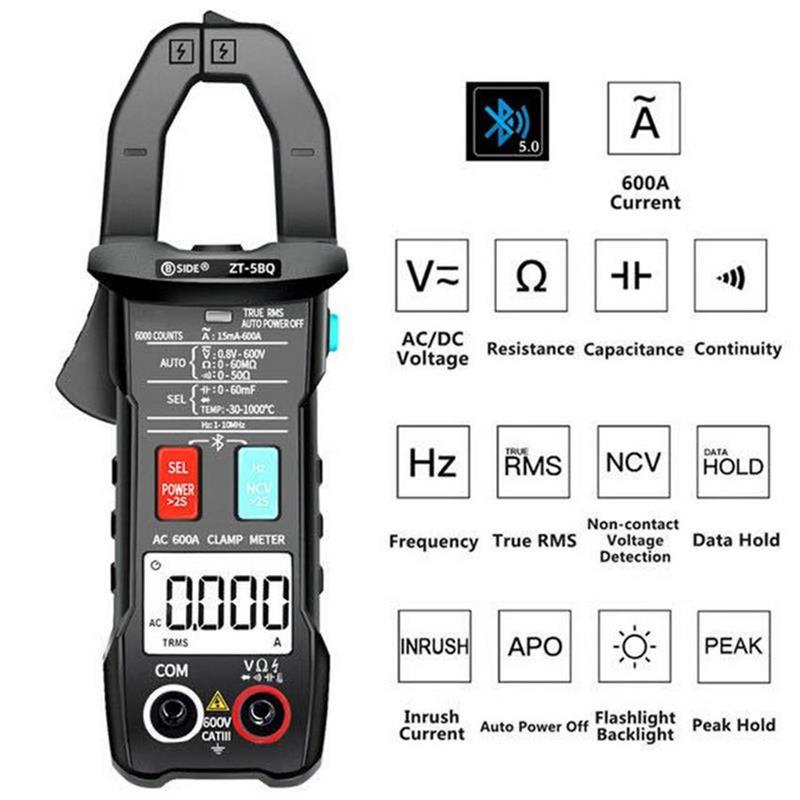

ZT-5BQ Digital Clamp Meter Wireless Smart Multimeter True RMS Voltmeter AC DC Ammeter Auto Range Capacitor NCV Tester Tools
Feature:
1. bluetooth-compatible connection:mobile phone can directly control the multimeter.
2. More applications of measurement data:data recording, data graphics, data sharing, data storage and export, threshold alarm.
3. Multi-meter collaboration:APP can connect four bluetooth-compatible multimeters and simultaneously monitor the measurement data of the four multimeters in real time.
4. Intelligent calculation function:use multimeter data to quickly calculate mathematical formulas such as power.
5. Remote assistance:real-time remote screen synchronization, easy zero-distance communication, and ultra-distance real-time monitoring.
6. Find a master-multimeter user communication platform
Five major categories:home appliance repair, electrician knowledge, circuit synthesis, Q & A, and fan discussions.
Order Notice:
The APP download site is as follows. Favorite friends can download in advance. Thank you!
https://multimeter.szoyi.com:8081/share/index.html
Specifications:
Brand:BSIDE
Item name:Clamp meter
Color:Black
Display:6000 counts
DC voltage:6V/60V/600V ??(0.5%+3)
AC voltage:6V/60V/600V ?? (1.0%+3)
AC current:600mA/6A/60A/600A??(2.0%+3)
Capacitance:6nF??(5.0%+20);
60nF/600nF/6uF/60uF/600uF ??(3.5%+4); 6mF ??(5.0%+5)
Resistance:6K?? ??(1.5%+3); 60K??/600K??/6M?? ??(1.0%+3); 60M?? ??(1.5%+3)
Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ??(1%+2)
Temperature:-20~1000/ -4~1832??(3%+5)
NCV (Non-contact Voltage Detection):Yes
Diode Test:Yes
Continuity:Yes
Power:1.5V AAAx2(not included)
Size:170x61x28mm
Note:
– There might be little error of size for manual measurement.
– The colors deviation might differ due to different monitor settings, please kindly understand.
Package Includes:
1 x Host
1 x English manual
1 x Temperature probe
1 x Cloth bag
1 x Pair of test lead
Additional information
| Weight | 0.313 kg |
|---|
